SDO HMI 2014-01-11 04:00:24 UT

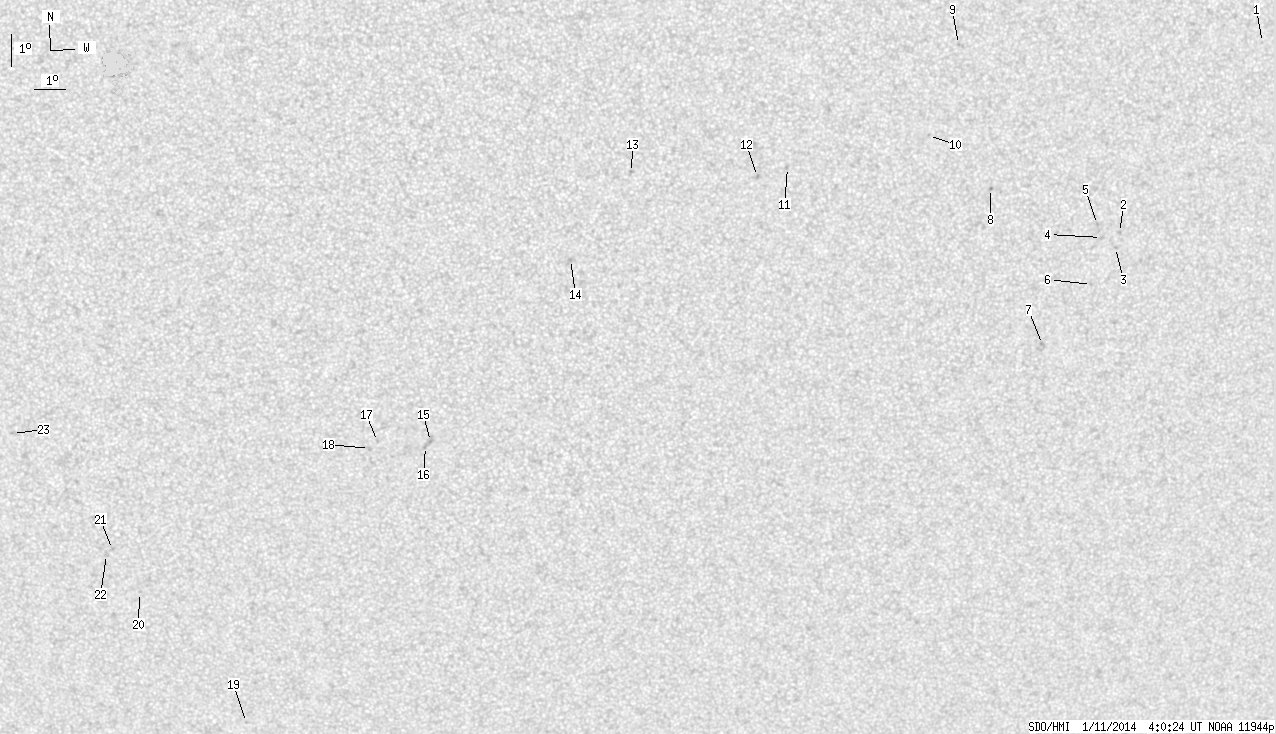

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.59 | 0.00 | 17.45 | -21.42 | 60.15 | 4.56 | 196.55 | 0.3687 | -340.2 | -252.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.46 | -12.25 | 79.24 | 23.65 | 249.47 | 0.4204 | -707.0 | -564.3 | |
| 0.00 | 1.70 | 0.00 | 0.92 | -18.07 | 75.15 | 19.56 | 232.48 | 0.4031 | 940.0 | 697.5 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -18.53 | 75.07 | 19.48 | 231.43 | 0.4063 | 776.0 | 685.3 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -18.23 | 74.58 | 18.99 | 231.36 | 0.3974 | 858.0 | 702.7 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -17.84 | 74.40 | 18.81 | 231.94 | 0.3916 | 925.0 | 771.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -19.67 | 74.42 | 18.83 | 228.25 | 0.4091 | 748.0 | 637.4 | |
| 0.00 | 2.21 | 0.00 | 1.20 | -21.55 | 73.02 | 17.43 | 222.69 | 0.4127 | 915.0 | 729.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -16.82 | 70.85 | 15.26 | 228.65 | 0.3371 | -843.0 | -757.6 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -12.52 | 69.55 | 13.96 | 237.93 | 0.2793 | -774.0 | -633.6 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -15.26 | 68.78 | 13.19 | 228.54 | 0.2950 | -692.0 | -591.5 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -16.27 | 64.43 | 8.84 | 214.99 | 0.2584 | -805.0 | -600.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -16.55 | 63.51 | 7.92 | 211.52 | 0.2538 | -863.0 | -702.2 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -16.45 | 59.61 | 4.02 | 197.51 | 0.2246 | -935.0 | -717.6 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -19.10 | 57.76 | 2.17 | 187.91 | 0.2616 | -908.0 | -658.2 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -24.73 | 53.30 | -2.29 | 174.10 | 0.3550 | -943.0 | -739.8 | |
| 0.00 | 1.95 | 0.00 | 1.04 | -24.89 | 53.13 | -2.46 | 173.73 | 0.3578 | -774.0 | -649.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -24.72 | 51.58 | -4.01 | 169.75 | 0.3588 | -765.0 | -590.4 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -24.94 | 51.31 | -4.28 | 169.21 | 0.3631 | -707.0 | -535.1 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -33.85 | 46.50 | -9.09 | 165.19 | 0.5153 | -356.0 | -363.4 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -29.47 | 43.24 | -12.35 | 156.55 | 0.4697 | -630.0 | -607.0 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -28.06 | 42.49 | -13.10 | 153.83 | 0.4554 | -713.0 | -461.3 | |
| 0.00 | 2.55 | 0.00 | 1.42 | -28.22 | 42.26 | -13.33 | 153.62 | 0.4591 | -795.0 | -555.3 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -24.31 | 39.58 | -16.01 | 144.10 | 0.4305 | -777.0 | -569.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
