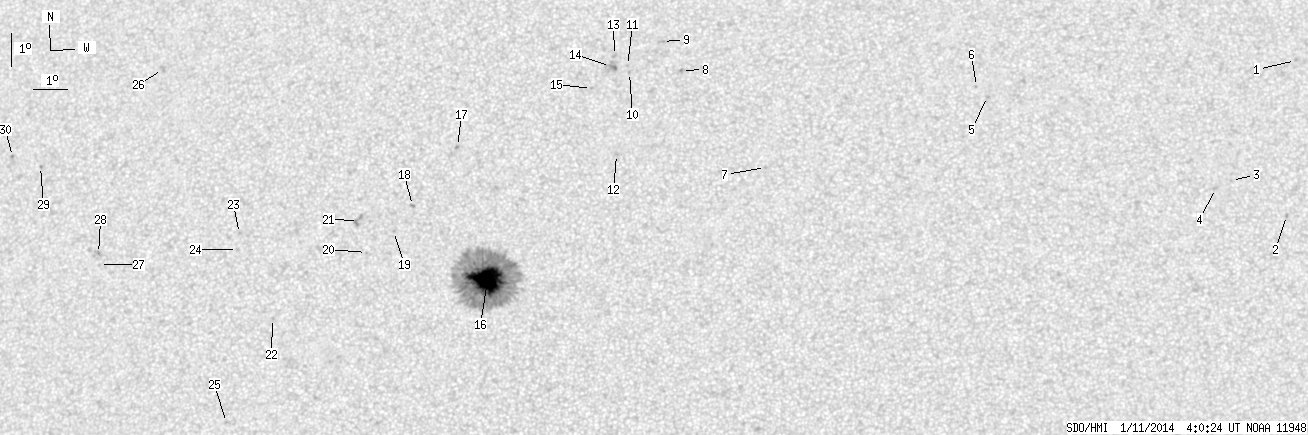

SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.79 | 353.37 | 24.95 | 181.58 | 6.04 | 44.98 | -10.61 | 75.01 | 0.2624 | -894.0 | -413.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | 12.07 | 69.19 | 13.60 | 320.34 | 0.3618 | -811.0 | -640.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 7.35 | 68.71 | 13.12 | 311.26 | 0.3009 | -806.0 | -649.5 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 8.38 | 67.07 | 11.48 | 317.60 | 0.2933 | -692.0 | -497.1 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 8.13 | 66.58 | 10.99 | 318.27 | 0.2847 | -887.0 | -686.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 10.87 | 59.76 | 4.17 | 344.58 | 0.2699 | -799.0 | -675.3 | |
| 0.00 | 0.93 | 0.00 | 0.48 | 11.17 | 59.43 | 3.85 | 346.01 | 0.2734 | -774.0 | -641.7 | |
| 0.00 | 0.76 | 0.00 | 0.39 | 8.71 | 53.11 | -2.48 | 10.88 | 0.2277 | -792.0 | -701.3 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 11.68 | 50.55 | -5.04 | 17.50 | 0.2871 | -960.0 | -766.5 | |
| 0.00 | 2.38 | 0.00 | 1.24 | 12.57 | 49.96 | -5.63 | 18.41 | 0.3044 | -836.0 | -662.5 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 11.63 | 48.98 | -6.61 | 22.54 | 0.2953 | -938.0 | -741.4 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 11.85 | 48.92 | -6.67 | 22.46 | 0.2991 | -836.0 | -657.8 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 9.14 | 48.64 | -6.95 | 27.51 | 0.2598 | -862.0 | -647.2 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 12.16 | 48.51 | -7.08 | 23.25 | 0.3065 | -701.0 | -582.4 | |
| 0.00 | 10.03 | 0.00 | 5.21 | 11.82 | 48.40 | -7.19 | 24.03 | 0.3021 | -936.0 | -739.1 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 11.15 | 47.84 | -7.75 | 26.67 | 0.2960 | -714.0 | -615.8 | |
| 48.79 | 300.73 | 24.95 | 153.82 | 5.43 | 44.83 | -10.76 | 48.38 | 0.2498 | -1514.6 | -422.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 9.44 | 43.82 | -11.77 | 40.74 | 0.3097 | -890.0 | -811.2 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 7.68 | 42.50 | -13.09 | 47.83 | 0.3042 | 972.0 | 776.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 6.91 | 41.94 | -13.65 | 50.96 | 0.3029 | -846.0 | -616.5 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 6.30 | 41.13 | -14.45 | 54.17 | 0.3074 | 790.0 | 540.9 | |
| 0.00 | 4.93 | 0.00 | 2.58 | 7.26 | 40.86 | -14.73 | 52.21 | 0.3206 | -628.0 | -770.1 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 4.39 | 38.29 | -17.30 | 63.90 | 0.3317 | 769.0 | 583.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 6.96 | 37.18 | -18.41 | 58.91 | 0.3676 | 845.0 | 683.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.48 | 37.14 | -18.45 | 60.11 | 0.3644 | 856.0 | 532.7 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 1.33 | 36.91 | -18.68 | 74.01 | 0.3346 | 802.0 | 554.6 | |
| 0.00 | 3.48 | 0.00 | 1.93 | 12.00 | 34.43 | -21.16 | 52.24 | 0.4485 | 824.0 | 621.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 6.15 | 32.77 | -22.82 | 65.81 | 0.4245 | -682.0 | -527.6 | |
| 0.00 | 2.46 | 0.00 | 1.35 | 6.48 | 32.73 | -22.86 | 65.15 | 0.4273 | -975.0 | -618.5 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 9.16 | 30.67 | -24.92 | 61.73 | 0.4742 | -746.0 | -583.1 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 9.50 | 29.72 | -25.87 | 62.00 | 0.4894 | 812.0 | 720.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
