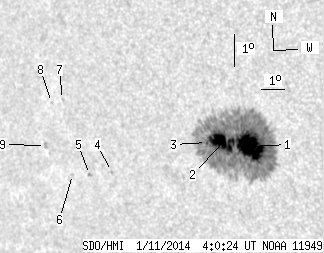

SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.38 | 413.26 | 44.69 | 279.03 | -16.18 | 13.78 | -41.81 | 109.47 | 0.6814 | 961.8 | 315.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.27 | 405.79 | 26.26 | 273.32 | -16.26 | 14.38 | -41.21 | 109.75 | 0.6744 | 1284.1 | 334.3 | |
| 26.26 | -1.00 | 17.85 | -1.00 | -16.09 | 13.31 | -42.28 | 109.19 | 0.6868 | 974.8 | 999999 | |
| 0.85 | -1.00 | 0.58 | -1.00 | -16.06 | 12.65 | -42.94 | 108.96 | 0.6946 | 333.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -16.72 | 8.29 | -47.30 | 108.82 | 0.7459 | -218.0 | -293.1 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -16.76 | 7.27 | -48.32 | 108.65 | 0.7572 | -501.0 | -537.7 | |
| 0.00 | 1.10 | 0.00 | 0.85 | -16.71 | 6.48 | -49.11 | 108.44 | 0.7655 | -245.0 | -318.3 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -14.45 | 6.75 | -48.84 | 105.54 | 0.7591 | -546.0 | -476.2 | |
| 0.00 | 1.19 | 0.00 | 0.91 | -14.52 | 6.22 | -49.37 | 105.54 | 0.7650 | -441.0 | -370.2 | |
| 0.00 | 2.38 | 0.00 | 1.85 | -15.78 | 5.52 | -50.07 | 107.06 | 0.7742 | -612.0 | -458.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
