SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.09 | 62.29 | 9.26 | 31.86 | -13.11 | 44.06 | -11.53 | 129.01 | 0.2514 | -472.8 | -346.5 | |
|
previous
or next observation for the same group /

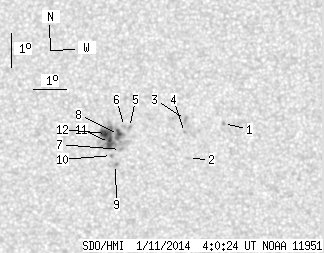

back to the solar disc SDO HMI 2014-01-11 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.65 | -12.75 | 47.28 | -8.31 | 136.82 | 0.2070 | 983.0 | 750.7 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.78 | 46.17 | -9.42 | 136.61 | 0.2325 | 949.0 | 722.6 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -12.62 | 46.12 | -9.47 | 132.70 | 0.2195 | 962.0 | 783.2 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.00 | 46.08 | -9.51 | 133.87 | 0.2244 | 816.0 | 682.6 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -12.83 | 44.39 | -11.20 | 128.80 | 0.2441 | -947.0 | -722.3 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -12.80 | 44.24 | -11.35 | 128.33 | 0.2458 | -981.0 | -788.6 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -13.48 | 44.08 | -11.51 | 130.13 | 0.2549 | -357.0 | -269.7 | |
| 3.99 | 47.60 | 2.04 | 24.37 | -13.03 | 44.04 | -11.55 | 128.63 | 0.2508 | -1178.6 | -570.0 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -13.93 | 43.91 | -11.68 | 131.06 | 0.2619 | 603.0 | 564.2 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -13.66 | 43.80 | -11.79 | 129.99 | 0.2604 | -757.0 | -660.5 | |
| 5.86 | -8.00 | 3.00 | -8.00 | -13.27 | 43.75 | -11.84 | 128.70 | 0.2570 | -1020.9 | 999999 | |
| 8.24 | -8.00 | 4.22 | -8.00 | -13.00 | 43.67 | -11.92 | 127.67 | 0.2553 | -1051.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
