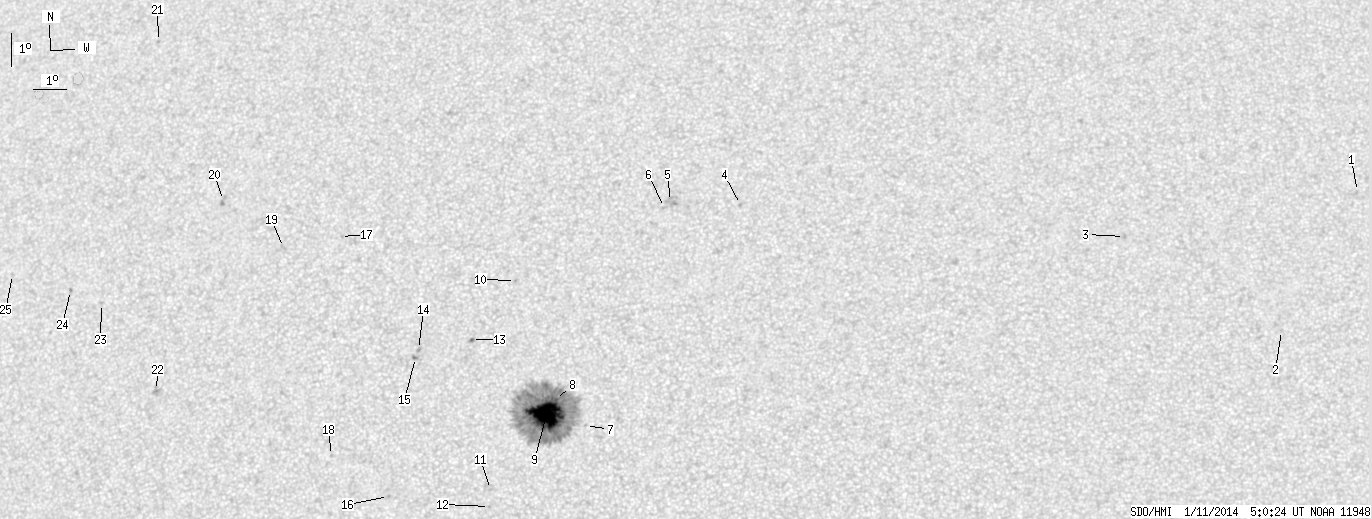

SDO HMI 2014-01-11 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.28 | 356.91 | 28.73 | 183.18 | 5.92 | 44.38 | -10.67 | 61.42 | 0.2577 | -856.4 | -356.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.36 | 12.20 | 69.30 | 14.26 | 319.25 | 0.3704 | -635.0 | -565.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.93 | 66.78 | 11.74 | 315.89 | 0.2908 | -762.0 | -559.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 10.73 | 62.11 | 7.06 | 334.76 | 0.2847 | -857.0 | -665.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.70 | 50.55 | -4.49 | 15.69 | 0.2849 | -1014.0 | -867.8 | |
| 0.00 | 7.57 | 0.00 | 3.92 | 11.81 | 48.43 | -6.61 | 22.31 | 0.2982 | -764.0 | -734.7 | |
| 0.00 | 2.04 | 0.00 | 1.06 | 11.63 | 48.25 | -6.79 | 23.10 | 0.2965 | -743.0 | -586.5 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 5.07 | 46.00 | -9.04 | 44.48 | 0.2245 | -745.0 | -488.2 | |
| 1.62 | 312.49 | 0.82 | 159.57 | 5.86 | 45.09 | -9.96 | 44.86 | 0.2449 | -1074.5 | -387.7 | |
| 54.32 | -8.00 | 27.73 | -8.00 | 5.41 | 44.83 | -10.22 | 46.93 | 0.2429 | -1485.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 9.46 | 43.79 | -11.25 | 39.43 | 0.3044 | -872.0 | -742.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 3.20 | 43.17 | -11.88 | 58.37 | 0.2424 | 898.0 | 583.6 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 2.70 | 43.14 | -11.90 | 60.23 | 0.2384 | 893.0 | 623.7 | |
| 0.34 | 1.53 | 0.18 | 0.79 | 7.70 | 42.50 | -12.54 | 46.56 | 0.2977 | 1011.5 | 858.6 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 7.43 | 40.89 | -14.15 | 50.67 | 0.3149 | -903.0 | -745.1 | |
| 0.00 | 2.55 | 0.00 | 1.33 | 7.19 | 40.81 | -14.24 | 51.43 | 0.3135 | -979.0 | -801.7 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 3.05 | 40.07 | -14.97 | 64.50 | 0.2871 | 953.0 | 695.4 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 10.91 | 38.32 | -16.72 | 47.72 | 0.3835 | -495.0 | -477.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 4.31 | 38.30 | -16.74 | 63.35 | 0.3229 | 807.0 | 622.8 | |
| 0.00 | 2.38 | 0.00 | 1.29 | 10.61 | 36.54 | -18.50 | 51.15 | 0.4022 | 776.0 | 583.0 | |
| 0.00 | 4.34 | 0.00 | 2.39 | 12.10 | 34.52 | -20.52 | 51.21 | 0.4416 | 537.0 | 617.0 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 17.13 | 31.86 | -23.18 | 46.46 | 0.5210 | 748.0 | 561.1 | |
| 0.00 | 5.78 | 0.00 | 3.15 | 6.40 | 32.73 | -22.32 | 64.78 | 0.4189 | -997.0 | -612.1 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 9.07 | 30.79 | -24.25 | 61.24 | 0.4646 | -823.0 | -621.1 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 9.50 | 29.74 | -25.31 | 61.46 | 0.4819 | 844.0 | 722.0 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 10.06 | 27.75 | -27.29 | 62.24 | 0.5122 | 717.0 | 484.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
