SDO HMI 2014-01-11 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.03 | 407.72 | 46.13 | 273.15 | -16.19 | 13.78 | -41.27 | 109.63 | 0.6746 | 953.4 | 317.4 | |
|
previous
or next observation for the same group /

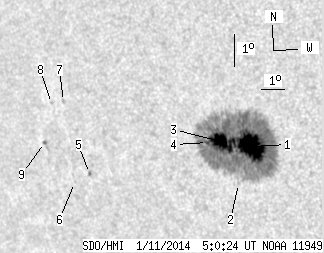

back to the solar disc SDO HMI 2014-01-11 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.08 | 398.77 | 27.91 | 266.47 | -16.27 | 14.40 | -40.65 | 109.92 | 0.6674 | 1288.6 | 337.4 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -17.35 | 13.58 | -41.47 | 111.24 | 0.6805 | -210.0 | -143.5 | |
| 25.67 | -1.00 | 17.30 | -1.00 | -16.09 | 13.30 | -41.75 | 109.34 | 0.6804 | 988.9 | 999999 | |
| 0.68 | -1.00 | 0.46 | -1.00 | -16.06 | 12.64 | -42.40 | 109.11 | 0.6882 | 357.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.21 | -16.73 | 7.28 | -47.76 | 108.73 | 0.7510 | -639.0 | -570.5 | |
| 0.00 | 0.68 | 0.00 | 0.52 | -16.96 | 6.51 | -48.54 | 108.88 | 0.7599 | -445.0 | -313.6 | |
| 0.00 | 1.79 | 0.00 | 1.34 | -14.52 | 6.78 | -48.26 | 105.72 | 0.7528 | -413.0 | -415.6 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -14.55 | 6.22 | -48.83 | 105.67 | 0.7591 | -446.0 | -377.9 | |
| 0.60 | 2.81 | 0.46 | 2.16 | -15.69 | 5.53 | -49.52 | 107.04 | 0.7682 | -541.6 | -393.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
