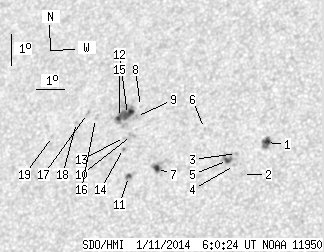

SDO HMI 2014-01-11 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.03 | 68.56 | 13.30 | 41.56 | 16.36 | 25.62 | -28.88 | 53.52 | 0.5779 | 144.2 | 32.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.85 | 7.57 | 2.83 | 4.42 | 16.09 | 29.33 | -25.17 | 50.29 | 0.5334 | -951.6 | -679.7 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 15.11 | 28.64 | -25.86 | 52.51 | 0.5328 | -693.0 | -548.1 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 15.78 | 28.35 | -26.15 | 51.80 | 0.5419 | -711.0 | -587.8 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 15.40 | 28.33 | -26.17 | 52.38 | 0.5390 | -784.0 | -665.0 | |
| 2.47 | 8.25 | 1.45 | 4.86 | 15.57 | 28.07 | -26.43 | 52.40 | 0.5434 | -1010.2 | -630.9 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 16.60 | 27.12 | -27.38 | 51.80 | 0.5629 | -614.0 | -422.8 | |
| 2.47 | 7.82 | 1.48 | 4.71 | 15.40 | 25.63 | -28.87 | 54.97 | 0.5706 | -998.0 | -605.6 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 17.39 | 24.74 | -29.76 | 52.90 | 0.5961 | 760.0 | 627.0 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 17.07 | 24.66 | -29.84 | 53.42 | 0.5946 | 838.0 | 728.9 | |
| 0.00 | 2.81 | 0.00 | 1.72 | 16.48 | 24.58 | -29.92 | 54.34 | 0.5910 | 935.0 | 804.5 | |
| 1.53 | 4.42 | 0.93 | 2.68 | 15.19 | 24.68 | -29.82 | 56.13 | 0.5802 | -878.0 | -536.0 | |
| 7.31 | 24.82 | 4.51 | 15.34 | 17.15 | 24.32 | -30.18 | 53.61 | 0.5990 | 962.5 | 461.9 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 16.42 | 24.34 | -30.16 | 54.62 | 0.5933 | 889.0 | 574.6 | |
| 0.34 | 1.19 | 0.21 | 0.73 | 16.08 | 24.36 | -30.14 | 55.10 | 0.5905 | 889.0 | 761.0 | |
| 3.06 | -12.00 | 1.89 | -12.00 | 17.07 | 24.05 | -30.45 | 53.96 | 0.6014 | 750.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 17.07 | 23.18 | -31.32 | 54.68 | 0.6112 | 744.0 | 580.8 | |
| 0.00 | 1.79 | 0.00 | 1.12 | 17.24 | 22.86 | -31.64 | 54.71 | 0.6161 | 794.0 | 587.4 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 16.97 | 22.51 | -31.99 | 55.36 | 0.6181 | 655.0 | 540.9 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 16.56 | 21.71 | -32.79 | 56.56 | 0.6243 | 595.0 | 615.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
