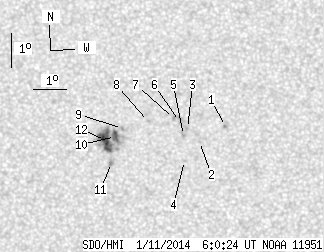

SDO HMI 2014-01-11 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.85 | 55.03 | 9.11 | 28.03 | -13.11 | 44.25 | -10.25 | 132.22 | 0.2348 | -315.5 | -275.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.60 | -12.77 | 47.43 | -7.07 | 141.40 | 0.1932 | 880.0 | 711.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -13.21 | 46.63 | -7.87 | 139.83 | 0.2077 | 841.0 | 710.8 | |
| 0.00 | 0.60 | 0.00 | 0.30 | -12.82 | 46.27 | -8.23 | 137.32 | 0.2068 | 940.0 | 711.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.78 | 46.15 | -8.35 | 139.94 | 0.2202 | 557.0 | 423.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -13.03 | 46.14 | -8.36 | 137.57 | 0.2108 | 829.0 | 703.4 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -12.61 | 46.04 | -8.46 | 135.80 | 0.2070 | 632.0 | 614.5 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -12.52 | 45.86 | -8.64 | 134.89 | 0.2080 | 850.0 | 710.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -12.60 | 45.09 | -9.41 | 132.78 | 0.2184 | -828.0 | -729.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -12.80 | 44.28 | -10.22 | 131.17 | 0.2308 | -975.0 | -793.4 | |
| 3.74 | 40.30 | 1.91 | 20.55 | -13.03 | 44.06 | -10.44 | 131.35 | 0.2363 | -1212.5 | -663.9 | |
| 0.00 | 3.40 | 0.00 | 1.74 | -13.81 | 43.90 | -10.60 | 133.37 | 0.2469 | 143.0 | 240.9 | |
| 14.11 | -10.00 | 7.20 | -10.00 | -13.15 | 43.75 | -10.75 | 130.90 | 0.2415 | -1053.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
