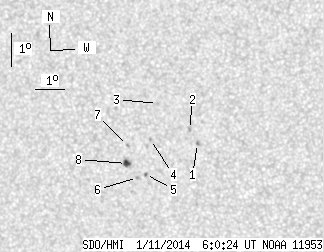

SDO HMI 2014-01-11 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 13.11 | 1.80 | 7.44 | -18.17 | 28.23 | -26.27 | 120.65 | 0.4909 | -55.7 | -12.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.67 | -17.99 | 29.96 | -24.54 | 121.84 | 0.4668 | 945.0 | 838.6 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -17.56 | 29.76 | -24.74 | 120.81 | 0.4666 | 834.0 | 543.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -16.74 | 28.78 | -25.72 | 118.39 | 0.4743 | 649.0 | 497.6 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -17.82 | 28.38 | -26.12 | 120.12 | 0.4866 | 772.0 | 654.8 | |
| 0.34 | 1.28 | 0.19 | 0.73 | -18.87 | 28.03 | -26.47 | 121.77 | 0.4981 | -602.5 | -503.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -18.96 | 27.74 | -26.76 | 121.67 | 0.5025 | -711.0 | -621.0 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -17.97 | 27.56 | -26.94 | 119.74 | 0.4984 | -769.0 | -622.8 | |
| 2.81 | 4.59 | 1.61 | 2.63 | -18.52 | 27.43 | -27.07 | 120.63 | 0.5036 | -927.2 | -639.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
