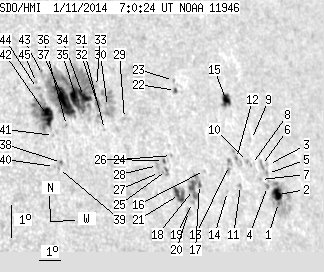

SDO HMI 2014-01-11 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.51 | 369.39 | 79.80 | 284.50 | 8.78 | 102.25 | 48.30 | 285.28 | 0.7658 | 213.9 | 46.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 43.19 | 0.98 | 38.26 | 7.01 | 108.81 | 54.85 | 281.37 | 0.8300 | -641.5 | -140.6 | |
| 8.33 | -1.00 | 7.36 | -1.00 | 7.25 | 108.80 | 54.84 | 281.66 | 0.8303 | -628.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.90 | 8.13 | 108.50 | 54.55 | 282.77 | 0.8291 | 121.0 | 106.0 | |
| 0.77 | 2.13 | 0.67 | 1.86 | 7.46 | 108.32 | 54.37 | 282.01 | 0.8261 | -724.8 | -641.6 | |
| 0.00 | 1.87 | 0.00 | 1.64 | 7.86 | 108.40 | 54.44 | 282.47 | 0.8276 | -330.0 | -330.5 | |
| 0.00 | 3.32 | 0.00 | 2.89 | 8.08 | 108.13 | 54.18 | 282.79 | 0.8254 | -250.0 | -242.5 | |
| 0.00 | 1.02 | 0.00 | 0.89 | 7.65 | 108.00 | 54.04 | 282.31 | 0.8234 | -635.0 | -573.0 | |
| 0.00 | 1.02 | 0.00 | 0.88 | 8.08 | 107.62 | 53.67 | 282.91 | 0.8205 | -504.0 | -392.6 | |
| 0.00 | 0.85 | 0.00 | 0.74 | 8.84 | 107.78 | 53.83 | 283.79 | 0.8235 | -327.0 | -282.7 | |
| 0.00 | 1.19 | 0.00 | 1.02 | 8.16 | 107.44 | 53.48 | 283.05 | 0.8189 | -671.0 | -584.8 | |
| 0.00 | 1.45 | 0.00 | 1.22 | 7.41 | 106.95 | 52.99 | 282.25 | 0.8126 | -566.0 | -472.1 | |
| 0.43 | 6.38 | 0.36 | 5.41 | 8.22 | 106.90 | 52.94 | 283.25 | 0.8137 | -581.0 | -440.6 | |
| 0.00 | 5.78 | 0.00 | 4.85 | 7.99 | 106.51 | 52.55 | 283.06 | 0.8093 | -578.0 | -604.1 | |
| 0.00 | 0.85 | 0.00 | 0.71 | 7.19 | 106.27 | 52.31 | 282.14 | 0.8054 | -457.0 | -389.6 | |
| 6.97 | 9.69 | 5.94 | 8.26 | 9.97 | 106.78 | 52.82 | 285.38 | 0.8161 | 444.6 | 249.5 | |
| 0.00 | 0.68 | 0.00 | 0.55 | 7.76 | 105.25 | 51.30 | 283.09 | 0.7962 | -416.0 | -348.0 | |
| 0.77 | 16.75 | 0.62 | 13.45 | 7.33 | 104.94 | 50.99 | 282.62 | 0.7920 | -368.9 | -454.9 | |
| 6.29 | -17.00 | 5.04 | -17.00 | 7.16 | 104.63 | 50.68 | 282.48 | 0.7884 | -717.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.15 | 6.76 | 104.52 | 50.57 | 282.02 | 0.7865 | -556.0 | -496.3 | |
| 0.00 | 3.15 | 0.00 | 2.50 | 6.48 | 104.29 | 50.34 | 281.71 | 0.7835 | -652.0 | -538.2 | |
| 7.40 | 12.84 | 5.83 | 10.13 | 6.97 | 103.95 | 49.99 | 282.42 | 0.7808 | -777.9 | -599.5 | |
| 0.94 | 1.96 | 0.76 | 1.58 | 10.13 | 104.34 | 50.39 | 286.25 | 0.7922 | 556.6 | 449.8 | |
| 0.00 | 1.02 | 0.00 | 0.83 | 10.43 | 104.31 | 50.36 | 286.63 | 0.7927 | 507.0 | 546.5 | |
| 0.00 | 0.77 | 0.00 | 0.60 | 8.13 | 103.76 | 49.81 | 283.92 | 0.7814 | -474.0 | -412.3 | |
| 0.60 | 3.83 | 0.47 | 2.99 | 7.66 | 103.45 | 49.50 | 283.42 | 0.7770 | -678.0 | -709.5 | |
| 0.68 | 1.70 | 0.53 | 1.33 | 7.96 | 103.36 | 49.41 | 283.81 | 0.7768 | -650.6 | -618.3 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 7.58 | 103.12 | 49.16 | 283.40 | 0.7733 | -777.0 | -563.2 | |
| 0.00 | 3.15 | 0.00 | 2.44 | 7.79 | 103.06 | 49.11 | 283.68 | 0.7731 | -366.0 | -353.2 | |
| 0.00 | 1.19 | 0.00 | 0.91 | 9.14 | 101.80 | 47.84 | 285.76 | 0.7628 | -221.0 | -218.3 | |
| 0.00 | 25.76 | 0.00 | 19.42 | 9.46 | 101.10 | 47.15 | 286.39 | 0.7561 | 46.0 | -12.2 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 8.76 | 100.85 | 46.89 | 285.56 | 0.7514 | 344.0 | 269.8 | |
| 1.87 | 5.36 | 1.40 | 4.00 | 9.53 | 100.68 | 46.72 | 286.62 | 0.7516 | 514.3 | 352.0 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 10.05 | 100.73 | 46.77 | 287.27 | 0.7537 | 78.0 | 97.8 | |
| 10.12 | 150.48 | 7.49 | 110.39 | 9.71 | 100.10 | 46.14 | 287.04 | 0.7457 | 596.4 | 300.7 | |
| 17.09 | -34.00 | 12.57 | -34.00 | 9.64 | 99.78 | 45.83 | 287.05 | 0.7420 | 736.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 8.79 | 99.21 | 45.26 | 286.13 | 0.7330 | 630.0 | 528.8 | |
| 25.84 | -34.00 | 18.82 | -34.00 | 9.55 | 99.25 | 45.30 | 287.11 | 0.7358 | 950.8 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.28 | 7.66 | 98.83 | 44.88 | 284.73 | 0.7254 | 47.0 | -61.3 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 7.47 | 98.68 | 44.73 | 284.53 | 0.7231 | -520.0 | -536.1 | |
| 0.00 | 0.85 | 0.00 | 0.61 | 7.52 | 98.52 | 44.56 | 284.65 | 0.7214 | -469.0 | -379.9 | |
| 0.00 | 1.11 | 0.00 | 0.79 | 8.46 | 98.61 | 44.65 | 285.88 | 0.7251 | 554.0 | 435.2 | |
| 15.30 | 44.38 | 10.96 | 31.70 | 9.05 | 98.45 | 44.49 | 286.73 | 0.7251 | 953.0 | 572.9 | |
| 0.00 | 3.83 | 0.00 | 2.76 | 10.30 | 98.45 | 44.50 | 288.39 | 0.7290 | -502.0 | -360.6 | |
| 0.00 | 1.87 | 0.00 | 1.34 | 9.86 | 98.16 | 44.21 | 287.91 | 0.7243 | 623.0 | 574.5 | |
| 0.00 | 0.85 | 0.00 | 0.61 | 10.04 | 98.15 | 44.20 | 288.16 | 0.7248 | 426.0 | 318.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
