SDO HMI 2014-01-11 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 16.01 | 1.74 | 9.02 | -18.15 | 28.27 | -25.68 | 121.11 | 0.4829 | -0.2 | 54.1 | |
|
previous
or next observation for the same group /

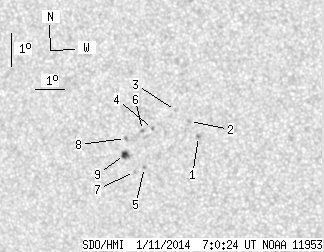

back to the solar disc SDO HMI 2014-01-11 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.04 | -18.01 | 30.03 | -23.93 | 122.44 | 0.4590 | 1010.0 | 813.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -17.55 | 29.79 | -24.17 | 121.32 | 0.4588 | 729.0 | 531.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -17.20 | 29.36 | -24.59 | 120.25 | 0.4621 | 696.0 | 505.4 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -17.72 | 28.50 | -25.45 | 120.49 | 0.4771 | 717.0 | 618.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -18.89 | 28.04 | -25.92 | 122.27 | 0.4911 | -730.0 | -602.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -17.77 | 28.15 | -25.81 | 120.28 | 0.4821 | 748.0 | 602.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.00 | 27.67 | -26.29 | 122.15 | 0.4966 | -795.0 | -694.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -17.99 | 27.53 | -26.43 | 120.18 | 0.4917 | -773.0 | -649.1 | |
| 3.06 | 5.36 | 1.74 | 3.05 | -18.48 | 27.41 | -26.54 | 120.98 | 0.4964 | -922.0 | -650.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
