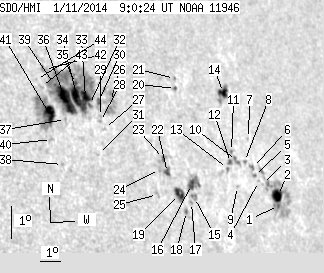

SDO HMI 2014-01-11 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.19 | 357.54 | 78.67 | 282.22 | 8.77 | 102.34 | 49.48 | 284.94 | 0.7782 | 208.4 | 66.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 51.86 | 0.77 | 47.37 | 6.90 | 108.96 | 56.09 | 281.00 | 0.8415 | -626.6 | -147.8 | |
| 9.44 | -1.00 | 8.60 | -1.00 | 7.20 | 108.96 | 56.10 | 281.35 | 0.8420 | -585.5 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.38 | 7.52 | 108.23 | 55.36 | 281.87 | 0.8357 | -571.0 | -531.6 | |
| 0.00 | 0.51 | 0.00 | 0.46 | 7.56 | 108.02 | 55.16 | 281.97 | 0.8339 | -502.0 | -441.8 | |
| 0.51 | 1.11 | 0.45 | 0.98 | 7.73 | 107.85 | 54.98 | 282.21 | 0.8325 | -565.8 | -486.1 | |
| 0.85 | 2.38 | 0.76 | 2.11 | 7.97 | 107.79 | 54.93 | 282.50 | 0.8324 | -455.6 | -355.2 | |
| 0.00 | 0.51 | 0.00 | 0.45 | 8.84 | 107.77 | 54.91 | 283.54 | 0.8338 | -460.0 | -395.0 | |
| 0.34 | 1.19 | 0.30 | 1.05 | 8.13 | 107.41 | 54.54 | 282.77 | 0.8290 | -533.2 | -449.6 | |
| 0.00 | 0.68 | 0.00 | 0.59 | 7.35 | 106.90 | 54.03 | 281.95 | 0.8227 | -533.0 | -512.1 | |
| 1.45 | 6.21 | 1.26 | 5.39 | 8.13 | 107.00 | 54.13 | 282.87 | 0.8251 | -518.7 | -491.3 | |
| 0.00 | 1.19 | 0.00 | 1.03 | 8.39 | 106.80 | 53.93 | 283.23 | 0.8237 | -566.0 | -507.1 | |
| 1.11 | -10.00 | 0.96 | -10.00 | 8.06 | 106.68 | 53.81 | 282.85 | 0.8219 | -671.8 | 999999 | |
| 0.34 | 1.62 | 0.29 | 1.39 | 7.86 | 106.49 | 53.62 | 282.66 | 0.8197 | -716.0 | -612.7 | |
| 5.70 | 13.09 | 4.99 | 11.46 | 10.18 | 106.80 | 53.93 | 285.35 | 0.8272 | 451.9 | 182.6 | |
| 0.00 | 3.49 | 0.00 | 2.86 | 6.89 | 104.69 | 51.82 | 281.88 | 0.7998 | -467.0 | -429.3 | |
| 3.66 | 13.09 | 3.00 | 10.78 | 7.27 | 104.61 | 51.74 | 282.38 | 0.7997 | -753.4 | -488.0 | |
| 0.00 | 1.45 | 0.00 | 1.18 | 6.73 | 104.52 | 51.65 | 281.72 | 0.7977 | -607.0 | -430.9 | |
| 0.60 | 1.96 | 0.48 | 1.59 | 6.44 | 104.24 | 51.37 | 281.43 | 0.7943 | -568.1 | -487.6 | |
| 6.97 | 10.37 | 5.64 | 8.38 | 6.94 | 103.98 | 51.11 | 282.11 | 0.7925 | -793.8 | -607.0 | |
| 0.60 | 1.28 | 0.49 | 1.06 | 10.16 | 104.40 | 51.54 | 285.96 | 0.8039 | 544.3 | 497.6 | |
| 0.00 | 1.11 | 0.00 | 0.92 | 10.46 | 104.42 | 51.56 | 286.32 | 0.8048 | 369.0 | 388.2 | |
| 2.55 | 4.76 | 2.05 | 3.82 | 7.57 | 103.51 | 50.64 | 283.01 | 0.7890 | -777.5 | -605.1 | |
| 1.02 | 3.74 | 0.82 | 3.00 | 7.99 | 103.39 | 50.53 | 283.56 | 0.7886 | -575.0 | -494.7 | |
| 0.00 | 1.62 | 0.00 | 1.29 | 7.64 | 103.14 | 50.28 | 283.19 | 0.7853 | -652.0 | -587.9 | |
| 0.00 | 1.70 | 0.00 | 1.34 | 6.88 | 102.93 | 50.07 | 282.29 | 0.7814 | -491.0 | -467.0 | |
| 0.00 | 19.21 | 0.00 | 14.84 | 9.59 | 101.24 | 48.37 | 286.17 | 0.7698 | -173.0 | -109.8 | |
| 0.00 | 1.28 | 0.00 | 0.97 | 8.75 | 100.82 | 47.95 | 285.23 | 0.7630 | 239.0 | 256.0 | |
| 0.00 | 1.45 | 0.00 | 1.10 | 8.95 | 100.67 | 47.81 | 285.53 | 0.7619 | 466.0 | 380.4 | |
| 0.00 | 1.62 | 0.00 | 1.23 | 9.10 | 100.70 | 47.83 | 285.72 | 0.7626 | 482.0 | 376.6 | |
| 1.45 | 3.91 | 1.10 | 2.99 | 9.56 | 100.69 | 47.83 | 286.30 | 0.7638 | 478.9 | 374.2 | |
| 0.00 | 0.68 | 0.00 | 0.51 | 7.94 | 100.42 | 47.55 | 284.31 | 0.7565 | 479.0 | 363.4 | |
| 1.02 | 146.31 | 0.77 | 109.62 | 9.44 | 100.27 | 47.41 | 286.29 | 0.7589 | 510.0 | 249.1 | |
| 7.57 | -32.00 | 5.72 | -32.00 | 9.65 | 100.13 | 47.27 | 286.59 | 0.7579 | 613.5 | 999999 | |
| 15.64 | -32.00 | 11.75 | -32.00 | 9.60 | 99.77 | 46.91 | 286.65 | 0.7538 | 727.7 | 999999 | |
| 1.19 | -32.00 | 0.90 | -32.00 | 10.05 | 99.77 | 46.90 | 287.23 | 0.7551 | 526.5 | 999999 | |
| 24.06 | -32.00 | 17.88 | -32.00 | 9.54 | 99.23 | 46.37 | 286.74 | 0.7478 | 930.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.75 | 8.93 | 99.13 | 46.26 | 285.98 | 0.7448 | 625.0 | 511.2 | |
| 0.00 | 1.19 | 0.00 | 0.87 | 7.55 | 98.79 | 45.92 | 284.28 | 0.7372 | -352.0 | -300.5 | |
| 0.43 | -32.00 | 0.31 | -32.00 | 9.97 | 98.84 | 45.97 | 287.44 | 0.7446 | 811.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.24 | 8.29 | 98.42 | 45.56 | 285.36 | 0.7351 | 462.0 | 402.0 | |
| 12.84 | 47.69 | 9.38 | 34.73 | 9.07 | 98.46 | 45.60 | 286.39 | 0.7378 | 947.5 | 565.2 | |
| 0.00 | 3.57 | 0.00 | 2.63 | 10.41 | 98.49 | 45.62 | 288.13 | 0.7421 | -538.0 | -354.2 | |
| 0.00 | 1.96 | 0.00 | 1.43 | 9.88 | 98.26 | 45.39 | 287.52 | 0.7379 | 613.0 | 513.0 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 10.08 | 98.08 | 45.22 | 287.85 | 0.7365 | 347.0 | 307.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
