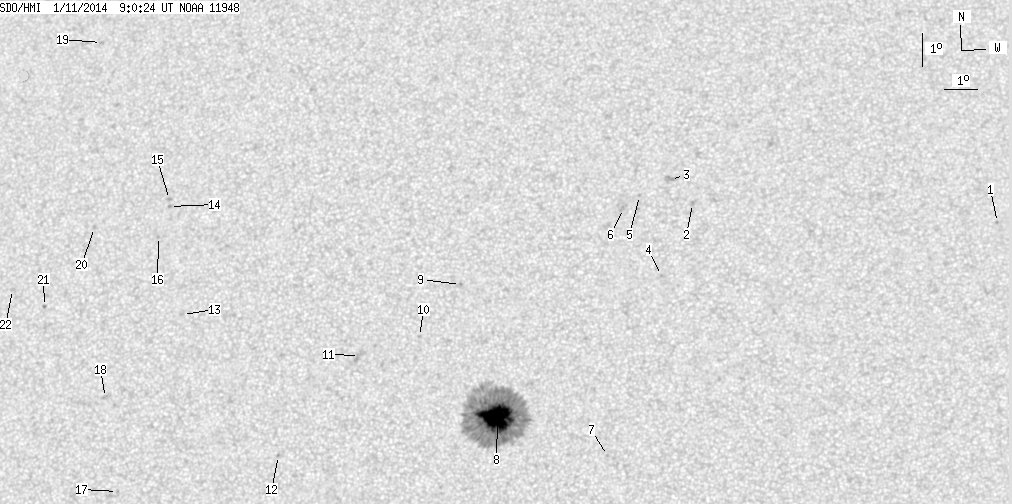

SDO HMI 2014-01-11 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.41 | 339.09 | 27.60 | 172.85 | 5.98 | 44.44 | -8.43 | 11.43 | 0.2315 | -875.2 | -380.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.48 | 11.26 | 59.88 | 7.01 | 335.74 | 0.2926 | -901.0 | -791.3 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 11.83 | 50.69 | -2.18 | 7.69 | 0.2793 | -968.0 | -637.6 | |
| 0.00 | 6.38 | 0.00 | 3.30 | 12.57 | 50.02 | -2.85 | 9.56 | 0.2933 | -901.0 | -665.7 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 9.64 | 49.77 | -3.09 | 12.57 | 0.2455 | -904.0 | -774.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 12.08 | 49.09 | -3.78 | 12.98 | 0.2883 | -808.0 | -686.0 | |
| 0.00 | 3.49 | 0.00 | 1.80 | 11.69 | 48.61 | -4.26 | 14.91 | 0.2838 | -918.0 | -739.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 4.24 | 48.20 | -4.66 | 29.05 | 0.1677 | -862.0 | -677.5 | |
| 54.41 | 297.64 | 27.60 | 151.02 | 5.40 | 44.92 | -7.95 | 39.74 | 0.2163 | -1482.9 | -406.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.42 | 43.73 | -9.13 | 33.79 | 0.2829 | -885.0 | -778.7 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 7.86 | 42.53 | -10.34 | 40.61 | 0.2743 | 908.0 | 726.8 | |
| 0.00 | 7.14 | 0.00 | 3.69 | 7.32 | 40.72 | -12.14 | 46.56 | 0.2886 | -617.0 | -678.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 4.37 | 38.32 | -14.54 | 59.72 | 0.2912 | 831.0 | 652.5 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 8.67 | 35.22 | -17.65 | 53.87 | 0.3727 | 524.0 | 378.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 11.97 | 34.62 | -18.25 | 48.15 | 0.4130 | 952.0 | 806.8 | |
| 0.00 | 2.13 | 0.00 | 1.16 | 12.19 | 34.60 | -18.26 | 47.78 | 0.4155 | 696.0 | 538.2 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 11.06 | 34.33 | -18.54 | 50.31 | 0.4072 | 697.0 | 509.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 3.41 | 33.36 | -19.50 | 69.02 | 0.3585 | 794.0 | 496.2 | |
| 0.00 | 2.13 | 0.00 | 1.14 | 6.23 | 32.90 | -19.96 | 62.57 | 0.3840 | -692.0 | -703.4 | |
| 0.00 | 1.70 | 0.00 | 0.97 | 17.14 | 31.94 | -20.93 | 43.56 | 0.4973 | 830.0 | 680.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 11.39 | 32.26 | -20.60 | 52.61 | 0.4360 | 702.0 | 623.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 9.03 | 30.82 | -22.05 | 58.97 | 0.4345 | -912.0 | -729.2 | |
| 0.00 | 2.21 | 0.00 | 1.23 | 9.57 | 29.74 | -23.12 | 59.09 | 0.4532 | 828.0 | 645.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
