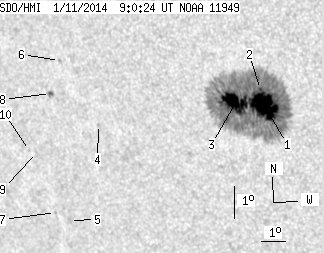

SDO HMI 2014-01-11 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.41 | 432.14 | 48.96 | 281.29 | -16.24 | 13.66 | -39.20 | 110.35 | 0.6494 | 919.5 | 277.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.93 | 421.42 | 27.64 | 273.31 | -16.28 | 14.36 | -38.50 | 110.64 | 0.6409 | 1247.7 | 300.5 | |
| 0.85 | -1.00 | 0.55 | -1.00 | -15.80 | 14.32 | -38.55 | 109.88 | 0.6399 | 967.3 | 999999 | |
| 30.27 | -1.00 | 19.77 | -1.00 | -16.14 | 13.25 | -39.62 | 110.05 | 0.6544 | 987.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -16.53 | 7.40 | -45.46 | 108.96 | 0.7249 | -537.0 | -526.3 | |
| 0.00 | 2.47 | 0.00 | 1.86 | -19.35 | 5.11 | -47.75 | 112.15 | 0.7564 | -704.0 | -488.0 | |
| 0.00 | 1.28 | 0.00 | 0.93 | -14.53 | 6.26 | -46.61 | 106.01 | 0.7341 | -612.0 | -467.9 | |
| 0.00 | 1.02 | 0.00 | 0.78 | -19.07 | 4.56 | -48.30 | 111.65 | 0.7616 | -524.0 | -425.6 | |
| 1.36 | 2.89 | 1.00 | 2.13 | -15.49 | 5.58 | -47.29 | 107.17 | 0.7435 | -664.9 | -474.9 | |
| 0.00 | 1.19 | 0.00 | 0.90 | -17.22 | 4.36 | -48.50 | 109.21 | 0.7599 | -533.0 | -487.6 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -17.14 | 4.06 | -48.80 | 109.04 | 0.7630 | -430.0 | -352.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
