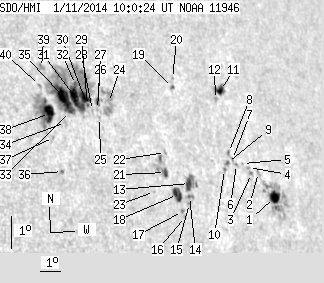

SDO HMI 2014-01-11 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.57 | 340.67 | 70.89 | 271.53 | 8.79 | 102.29 | 49.97 | 284.82 | 0.7836 | 160.9 | 77.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.74 | 44.46 | 7.17 | 41.31 | 7.14 | 109.00 | 56.68 | 281.17 | 0.8473 | -576.7 | -154.3 | |
| 0.00 | 2.13 | 0.00 | 1.94 | 7.85 | 108.28 | 55.96 | 282.14 | 0.8418 | -489.0 | -398.1 | |
| 0.43 | 1.70 | 0.38 | 1.53 | 7.80 | 107.89 | 55.57 | 282.16 | 0.8382 | -569.8 | -468.7 | |
| 0.00 | 1.53 | 0.00 | 1.38 | 7.97 | 107.77 | 55.45 | 282.39 | 0.8373 | -540.0 | -420.5 | |
| 0.00 | 0.77 | 0.00 | 0.68 | 8.07 | 107.48 | 55.16 | 282.57 | 0.8347 | -409.0 | -366.2 | |
| 0.00 | 0.85 | 0.00 | 0.75 | 8.02 | 107.15 | 54.83 | 282.58 | 0.8316 | -573.0 | -515.4 | |
| 0.00 | 1.36 | 0.00 | 1.20 | 8.16 | 106.97 | 54.65 | 282.79 | 0.8301 | -408.0 | -380.6 | |
| 0.00 | 1.53 | 0.00 | 1.35 | 8.36 | 106.81 | 54.49 | 283.07 | 0.8289 | -543.0 | -516.6 | |
| 0.77 | 2.04 | 0.67 | 1.79 | 8.06 | 106.69 | 54.37 | 282.72 | 0.8273 | -682.4 | -601.1 | |
| 0.51 | 1.62 | 0.44 | 1.41 | 7.83 | 106.50 | 54.18 | 282.50 | 0.8250 | -679.5 | -582.4 | |
| 4.00 | 9.52 | 3.55 | 8.46 | 10.24 | 106.83 | 54.51 | 285.28 | 0.8328 | 448.7 | 165.0 | |
| 0.00 | 1.87 | 0.00 | 1.65 | 9.95 | 106.50 | 54.18 | 285.01 | 0.8291 | 677.0 | 545.8 | |
| 6.72 | 13.18 | 5.59 | 10.98 | 7.31 | 104.65 | 52.33 | 282.28 | 0.8057 | -656.6 | -443.6 | |
| 0.60 | 3.06 | 0.49 | 2.54 | 6.91 | 104.58 | 52.26 | 281.81 | 0.8043 | -654.3 | -403.9 | |
| 0.00 | 0.68 | 0.00 | 0.56 | 6.70 | 104.55 | 52.23 | 281.56 | 0.8036 | -565.0 | -478.2 | |
| 0.00 | 1.53 | 0.00 | 1.26 | 6.30 | 104.29 | 51.97 | 281.12 | 0.8002 | -510.0 | -418.2 | |
| 0.43 | 1.53 | 0.35 | 1.26 | 6.44 | 104.17 | 51.85 | 281.32 | 0.7992 | -630.2 | -544.3 | |
| 7.82 | 10.29 | 6.40 | 8.42 | 6.94 | 104.00 | 51.69 | 281.98 | 0.7985 | -784.6 | -552.4 | |
| 0.85 | 1.79 | 0.71 | 1.50 | 10.19 | 104.40 | 52.08 | 285.85 | 0.8093 | 546.7 | 370.0 | |
| 0.00 | 1.02 | 0.00 | 0.86 | 10.46 | 104.46 | 52.14 | 286.16 | 0.8106 | 202.0 | 355.2 | |
| 2.30 | 11.39 | 1.86 | 9.23 | 7.57 | 103.53 | 51.21 | 282.87 | 0.7949 | -771.1 | -554.5 | |
| 0.00 | 1.62 | 0.00 | 1.32 | 8.18 | 103.64 | 51.32 | 283.60 | 0.7973 | -493.0 | -383.7 | |
| 0.00 | 1.02 | 0.00 | 0.82 | 6.97 | 102.91 | 50.59 | 282.27 | 0.7872 | -673.0 | -568.5 | |
| 0.00 | 20.23 | 0.00 | 15.80 | 9.55 | 101.23 | 48.91 | 285.97 | 0.7754 | -179.0 | -129.2 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 9.07 | 100.73 | 48.41 | 285.51 | 0.7688 | 468.0 | 379.9 | |
| 1.79 | 4.17 | 1.38 | 3.22 | 9.56 | 100.73 | 48.41 | 286.12 | 0.7701 | 490.4 | 303.4 | |
| 0.00 | 1.36 | 0.00 | 1.05 | 9.31 | 100.69 | 48.37 | 285.82 | 0.7690 | 457.0 | 368.9 | |
| 0.00 | 1.02 | 0.00 | 0.78 | 9.27 | 100.45 | 48.13 | 285.84 | 0.7663 | 402.0 | 357.1 | |
| 0.43 | 145.88 | 0.33 | 110.46 | 9.41 | 100.25 | 47.94 | 286.08 | 0.7646 | 459.8 | 269.4 | |
| 8.42 | -29.00 | 6.43 | -29.00 | 9.65 | 100.17 | 47.85 | 286.41 | 0.7642 | 580.4 | 999999 | |
| 17.51 | -29.00 | 13.29 | -29.00 | 9.60 | 99.80 | 47.48 | 286.46 | 0.7601 | 701.9 | 999999 | |
| 0.94 | -29.00 | 0.71 | -29.00 | 10.02 | 99.84 | 47.52 | 286.99 | 0.7617 | 453.3 | 999999 | |
| 1.02 | -29.00 | 0.77 | -29.00 | 9.18 | 99.46 | 47.14 | 286.04 | 0.7553 | 737.6 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.84 | 8.84 | 99.18 | 46.86 | 285.68 | 0.7512 | 688.0 | 568.1 | |
| 16.49 | -29.00 | 12.39 | -29.00 | 9.60 | 99.27 | 46.95 | 286.63 | 0.7543 | 953.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.25 | 7.34 | 98.82 | 46.50 | 283.83 | 0.7432 | -621.0 | -494.6 | |
| 0.00 | 1.19 | 0.00 | 0.88 | 8.35 | 98.58 | 46.26 | 285.23 | 0.7432 | 564.0 | 489.4 | |
| 10.80 | 39.70 | 7.98 | 29.22 | 9.07 | 98.52 | 46.20 | 286.19 | 0.7445 | 924.3 | 639.7 | |
| 0.00 | 3.74 | 0.00 | 2.78 | 10.46 | 98.43 | 46.11 | 288.03 | 0.7476 | -616.0 | -421.5 | |
| 0.00 | 1.70 | 0.00 | 1.26 | 9.91 | 98.23 | 45.92 | 287.38 | 0.7438 | 651.0 | 549.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
