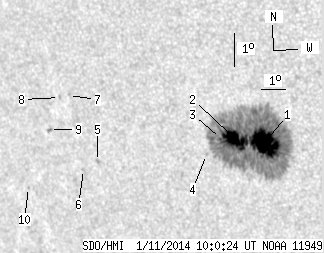

SDO HMI 2014-01-11 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.41 | 426.94 | 48.51 | 275.24 | -16.22 | 13.73 | -38.59 | 110.52 | 0.6416 | 910.4 | 293.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.93 | 418.17 | 30.00 | 268.97 | -16.28 | 14.33 | -37.99 | 110.81 | 0.6344 | 1222.2 | 313.4 | |
| 27.29 | -1.00 | 17.70 | -1.00 | -16.14 | 13.22 | -39.10 | 110.21 | 0.6479 | 1009.0 | 999999 | |
| 0.68 | -1.00 | 0.44 | -1.00 | -16.08 | 12.64 | -39.68 | 109.93 | 0.6550 | 426.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.79 | -16.53 | 11.96 | -40.36 | 110.39 | 0.6646 | -279.0 | -230.0 | |
| 0.00 | 1.53 | 0.00 | 1.09 | -16.52 | 7.39 | -44.93 | 109.09 | 0.7188 | -697.0 | -505.7 | |
| 0.00 | 1.36 | 0.00 | 0.98 | -16.73 | 6.71 | -45.61 | 109.21 | 0.7270 | -210.0 | -315.6 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -14.49 | 6.70 | -45.62 | 106.14 | 0.7228 | -542.0 | -518.4 | |
| 0.00 | 1.28 | 0.00 | 0.92 | -14.53 | 6.29 | -46.03 | 106.12 | 0.7275 | -543.0 | -501.9 | |
| 0.51 | 1.62 | 0.37 | 1.18 | -15.46 | 5.58 | -46.74 | 107.24 | 0.7372 | -749.8 | -625.6 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -17.14 | 4.08 | -48.24 | 109.16 | 0.7569 | -395.0 | -352.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
