SDO HMI 2014-01-11 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.36 | 435.76 | 49.48 | 278.92 | -16.25 | 13.74 | -38.03 | 110.76 | 0.6347 | 963.4 | 292.1 | |
|
previous
or next observation for the same group /

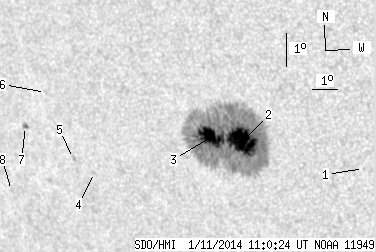

back to the solar disc SDO HMI 2014-01-11 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.26 | -17.34 | 18.72 | -33.06 | 114.65 | 0.5751 | 611.0 | 520.8 | |
| 46.16 | 426.99 | 29.29 | 272.73 | -16.33 | 14.36 | -37.41 | 111.10 | 0.6273 | 1219.6 | 308.6 | |
| 30.01 | -2.00 | 19.33 | -2.00 | -16.13 | 13.19 | -38.58 | 110.37 | 0.6413 | 973.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -16.99 | 8.18 | -43.60 | 110.07 | 0.7045 | -105.0 | -165.8 | |
| 0.00 | 2.21 | 0.00 | 1.55 | -16.52 | 7.41 | -44.36 | 109.22 | 0.7123 | -703.0 | -492.7 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -14.49 | 6.76 | -45.01 | 106.26 | 0.7156 | -638.0 | -524.6 | |
| 1.19 | 2.64 | 0.86 | 1.90 | -15.46 | 5.62 | -46.15 | 107.36 | 0.7306 | -670.1 | -501.0 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -17.34 | 4.39 | -47.38 | 109.61 | 0.7480 | -645.0 | -503.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
