SDO HMI 2014-01-11 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.71 | 320.20 | 69.47 | 261.97 | 8.73 | 102.34 | 51.11 | 284.45 | 0.7951 | 159.8 | 92.1 | |
|
previous
or next observation for the same group /

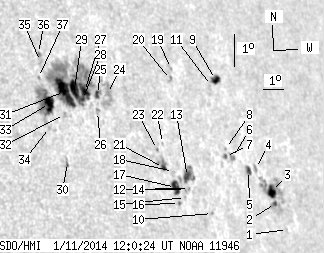

back to the solar disc SDO HMI 2014-01-11 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.59 | 0.00 | 0.58 | 6.01 | 109.81 | 58.58 | 279.51 | 0.8626 | 294.0 | 226.1 | |
| 1.36 | 43.77 | 1.31 | 42.03 | 6.75 | 109.26 | 58.04 | 280.46 | 0.8588 | -506.5 | -132.9 | |
| 7.39 | -2.00 | 7.08 | -2.00 | 7.10 | 109.11 | 57.88 | 280.89 | 0.8580 | -577.6 | 999999 | |
| 0.00 | 2.89 | 0.00 | 2.72 | 7.75 | 108.35 | 57.13 | 281.78 | 0.8522 | -278.0 | -240.4 | |
| 2.97 | 4.67 | 2.77 | 4.35 | 7.66 | 107.95 | 56.72 | 281.76 | 0.8485 | -566.9 | -404.1 | |
| 1.36 | 3.65 | 1.24 | 3.33 | 8.00 | 107.15 | 55.93 | 282.33 | 0.8418 | -481.8 | -340.0 | |
| 0.76 | 1.95 | 0.69 | 1.76 | 8.01 | 106.78 | 55.56 | 282.41 | 0.8384 | -679.6 | -584.5 | |
| 0.00 | 0.85 | 0.00 | 0.77 | 8.26 | 106.84 | 55.61 | 282.69 | 0.8393 | -502.0 | -442.1 | |
| 5.27 | 7.65 | 4.82 | 7.00 | 10.34 | 106.81 | 55.59 | 285.13 | 0.8429 | 416.6 | 247.2 | |
| 0.00 | 0.85 | 0.00 | 0.74 | 6.24 | 105.78 | 54.56 | 280.52 | 0.8259 | -512.0 | -428.0 | |
| 0.00 | 0.85 | 0.00 | 0.77 | 10.14 | 106.54 | 55.32 | 284.97 | 0.8401 | 618.0 | 580.6 | |
| 0.00 | 1.02 | 0.00 | 0.87 | 6.93 | 104.72 | 53.50 | 281.56 | 0.8167 | -370.0 | -328.7 | |
| 5.52 | 12.92 | 4.72 | 11.06 | 7.29 | 104.68 | 53.46 | 282.00 | 0.8170 | -654.4 | -419.5 | |
| 0.00 | 0.85 | 0.00 | 0.72 | 6.89 | 104.51 | 53.29 | 281.56 | 0.8146 | -666.0 | -589.5 | |
| 0.00 | 0.93 | 0.00 | 0.79 | 6.64 | 104.48 | 53.25 | 281.27 | 0.8138 | -507.0 | -414.4 | |
| 0.34 | 1.36 | 0.29 | 1.14 | 6.44 | 104.15 | 52.92 | 281.10 | 0.8101 | -641.8 | -552.2 | |
| 6.97 | 11.05 | 5.85 | 9.29 | 6.92 | 104.02 | 52.80 | 281.70 | 0.8097 | -774.2 | -529.8 | |
| 0.00 | 0.34 | 0.00 | 0.29 | 7.40 | 104.00 | 52.78 | 282.29 | 0.8105 | -218.0 | -290.5 | |
| 0.00 | 0.85 | 0.00 | 0.74 | 10.54 | 104.58 | 53.35 | 285.93 | 0.8225 | 477.0 | 430.7 | |
| 0.00 | 2.55 | 0.00 | 2.20 | 10.20 | 104.44 | 53.22 | 285.56 | 0.8205 | 518.0 | 410.9 | |
| 1.61 | 7.65 | 1.34 | 6.36 | 7.49 | 103.53 | 52.30 | 282.51 | 0.8059 | -781.6 | -640.0 | |
| 0.00 | 0.59 | 0.00 | 0.50 | 8.21 | 103.61 | 52.39 | 283.38 | 0.8082 | -367.0 | -328.9 | |
| 0.00 | 1.10 | 0.00 | 0.92 | 8.02 | 103.33 | 52.11 | 283.21 | 0.8049 | -681.0 | -597.4 | |
| 0.00 | 19.29 | 0.00 | 15.41 | 9.59 | 101.25 | 50.02 | 285.69 | 0.7872 | -213.0 | -114.9 | |
| 2.12 | 5.01 | 1.68 | 3.97 | 9.53 | 100.77 | 49.55 | 285.76 | 0.7820 | 432.6 | 276.4 | |
| 0.00 | 2.63 | 0.00 | 2.08 | 9.01 | 100.67 | 49.45 | 285.13 | 0.7797 | 477.0 | 360.2 | |
| 5.27 | 132.60 | 4.12 | 102.61 | 9.59 | 100.19 | 48.96 | 286.00 | 0.7760 | 588.3 | 265.3 | |
| 1.27 | -27.00 | 0.99 | -27.00 | 9.34 | 100.05 | 48.82 | 285.73 | 0.7739 | 613.9 | 999999 | |
| 10.71 | -27.00 | 8.30 | -27.00 | 9.63 | 99.74 | 48.51 | 286.18 | 0.7713 | 725.9 | 999999 | |
| 0.00 | 2.72 | 0.00 | 2.06 | 7.39 | 99.04 | 47.82 | 283.52 | 0.7581 | -630.0 | -553.4 | |
| 21.93 | -27.00 | 16.83 | -27.00 | 9.54 | 99.27 | 48.04 | 286.22 | 0.7661 | 887.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.82 | 8.84 | 99.14 | 47.92 | 285.36 | 0.7628 | 653.0 | 566.8 | |
| 9.52 | 40.54 | 7.18 | 30.47 | 9.14 | 98.53 | 47.30 | 285.93 | 0.7569 | 924.2 | 611.2 | |
| 0.00 | 1.27 | 0.00 | 0.96 | 8.40 | 98.40 | 47.18 | 285.02 | 0.7536 | 678.0 | 536.4 | |
| 0.00 | 1.61 | 0.00 | 1.22 | 10.40 | 98.37 | 47.14 | 287.60 | 0.7588 | -332.0 | -239.9 | |
| 0.34 | 1.78 | 0.26 | 1.35 | 10.64 | 98.33 | 47.10 | 287.92 | 0.7590 | -598.0 | -465.5 | |
| 0.00 | 1.44 | 0.00 | 1.09 | 9.90 | 98.18 | 46.96 | 287.03 | 0.7553 | 449.0 | 473.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
