SDO HMI 2014-01-11 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.21 | 55.97 | 8.93 | 32.95 | 16.48 | 25.81 | -25.42 | 49.81 | 0.5398 | 197.5 | -25.4 | |
|
previous
or next observation for the same group /

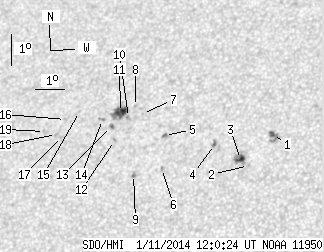

back to the solar disc SDO HMI 2014-01-11 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.70 | 7.48 | 0.97 | 4.26 | 16.32 | 29.57 | -21.65 | 45.74 | 0.4965 | -859.8 | -784.2 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 15.36 | 28.89 | -22.34 | 48.07 | 0.4947 | -831.0 | -685.8 | |
| 3.74 | 9.26 | 2.14 | 5.29 | 15.56 | 28.60 | -22.63 | 48.12 | 0.4998 | -1001.3 | -723.5 | |
| 0.59 | 2.89 | 0.34 | 1.67 | 16.06 | 27.67 | -23.55 | 48.48 | 0.5150 | -700.6 | -626.4 | |
| 0.51 | 2.12 | 0.30 | 1.25 | 16.40 | 25.94 | -25.29 | 49.93 | 0.5376 | -813.0 | -670.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 15.36 | 25.98 | -25.25 | 51.46 | 0.5280 | -946.0 | -667.1 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 17.12 | 25.08 | -26.14 | 49.78 | 0.5536 | 736.0 | 586.0 | |
| 0.00 | 1.10 | 0.00 | 0.66 | 17.35 | 24.81 | -26.42 | 49.74 | 0.5587 | 550.0 | 533.9 | |
| 0.00 | 2.21 | 0.00 | 1.30 | 15.21 | 25.05 | -26.18 | 52.67 | 0.5375 | -923.0 | -770.8 | |
| 0.00 | 1.70 | 0.00 | 1.01 | 17.01 | 24.62 | -26.61 | 50.43 | 0.5579 | 843.0 | 784.5 | |
| 8.16 | 14.70 | 4.88 | 8.80 | 17.18 | 24.31 | -26.91 | 50.49 | 0.5627 | 903.8 | 621.4 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 16.30 | 24.24 | -26.99 | 51.85 | 0.5561 | 781.0 | 736.8 | |
| 0.51 | 1.70 | 0.30 | 1.02 | 16.75 | 24.07 | -27.16 | 51.36 | 0.5618 | 962.3 | 853.4 | |
| 0.00 | 2.29 | 0.00 | 1.38 | 16.98 | 23.72 | -27.51 | 51.37 | 0.5676 | 829.0 | 619.3 | |
| 0.00 | 0.93 | 0.00 | 0.57 | 17.26 | 22.87 | -28.36 | 51.78 | 0.5795 | 564.0 | 408.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 17.03 | 22.42 | -28.81 | 52.54 | 0.5827 | 725.0 | 515.1 | |
| 0.00 | 0.59 | 0.00 | 0.36 | 16.49 | 22.36 | -28.86 | 53.36 | 0.5791 | 713.0 | 566.1 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 16.56 | 22.18 | -29.05 | 53.43 | 0.5818 | 753.0 | 627.2 | |
| 0.00 | 1.95 | 0.00 | 1.19 | 16.68 | 21.73 | -29.49 | 53.66 | 0.5877 | 442.0 | 365.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
