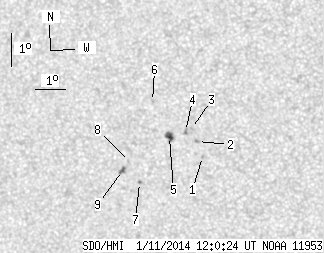

SDO HMI 2014-01-11 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.67 | 18.01 | 2.57 | 9.92 | -17.71 | 28.90 | -22.32 | 123.48 | 0.4356 | 421.0 | 283.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.65 | -18.09 | 30.14 | -21.08 | 125.64 | 0.4225 | 894.0 | 796.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.63 | 30.03 | -21.19 | 124.57 | 0.4202 | 890.0 | 771.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -17.23 | 29.88 | -21.34 | 123.58 | 0.4190 | 840.0 | 599.1 | |
| 0.00 | 2.46 | 0.00 | 1.35 | -17.32 | 29.67 | -21.55 | 123.52 | 0.4224 | 926.0 | 772.7 | |
| 3.48 | 5.61 | 1.91 | 3.08 | -17.46 | 29.12 | -22.10 | 123.20 | 0.4308 | 914.0 | 664.2 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -16.38 | 28.69 | -22.53 | 120.53 | 0.4286 | 786.0 | 586.1 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -18.82 | 27.92 | -23.30 | 124.62 | 0.4569 | -797.0 | -693.3 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -18.17 | 27.68 | -23.54 | 123.13 | 0.4551 | -638.0 | -527.0 | |
| 1.19 | 3.57 | 0.66 | 1.99 | -18.44 | 27.40 | -23.82 | 123.37 | 0.4607 | -936.0 | -753.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
