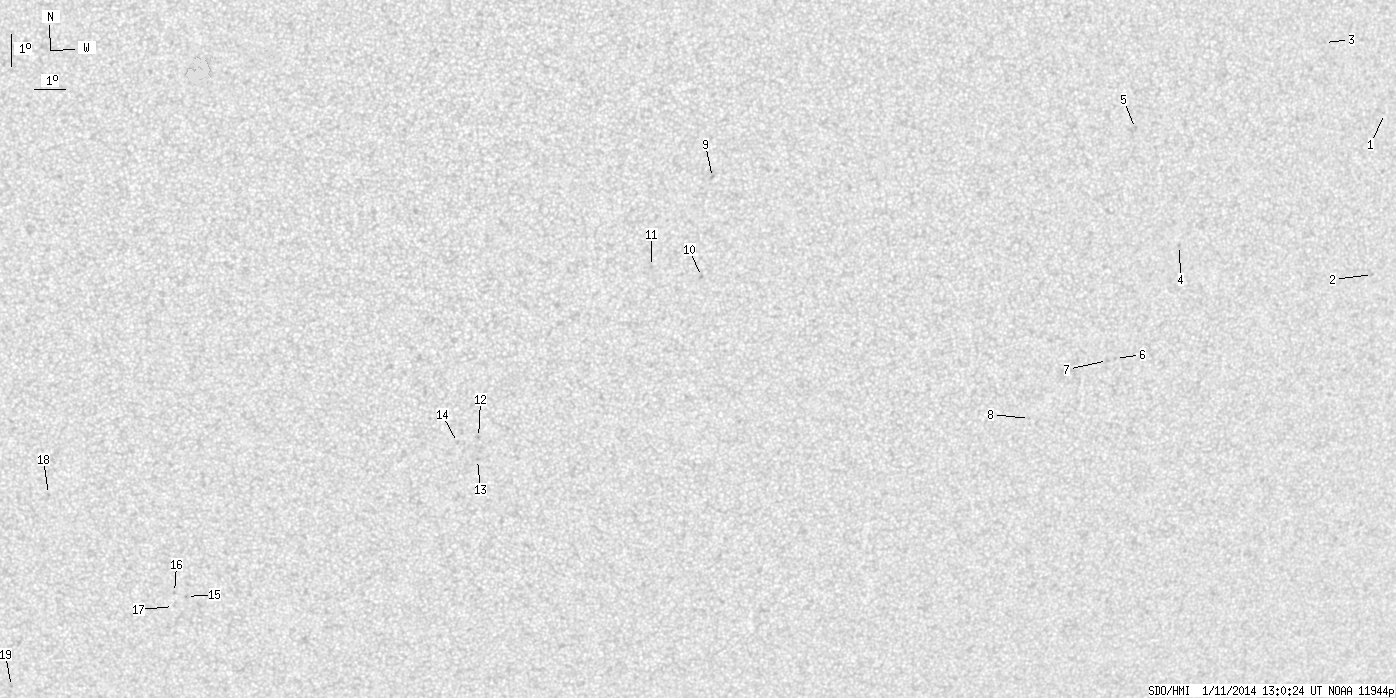

SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.38 | 0.00 | 11.71 | -21.58 | 61.01 | 10.33 | 206.84 | 0.4148 | -346.7 | -286.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.40 | -13.90 | 81.36 | 30.69 | 250.15 | 0.5288 | -541.0 | -473.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -18.76 | 81.78 | 31.11 | 241.85 | 0.5570 | 792.0 | 613.0 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -11.86 | 79.01 | 28.34 | 252.97 | 0.4878 | -684.0 | -628.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.10 | 74.88 | 24.21 | 237.67 | 0.4632 | 781.0 | 616.7 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -14.61 | 72.97 | 22.30 | 243.08 | 0.4135 | -724.0 | -633.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -21.61 | 73.24 | 22.56 | 229.49 | 0.4712 | 776.0 | 649.8 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -21.68 | 72.98 | 22.30 | 229.07 | 0.4687 | 965.0 | 740.3 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -23.54 | 70.60 | 19.93 | 222.96 | 0.4605 | 656.0 | 543.1 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -16.32 | 59.64 | 8.96 | 215.27 | 0.2600 | -924.0 | -749.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.33 | 59.44 | 8.76 | 208.73 | 0.3004 | -869.0 | -718.8 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -19.04 | 57.85 | 7.17 | 204.66 | 0.2841 | -838.0 | -665.9 | |
| 0.00 | 1.61 | 0.00 | 0.85 | -24.35 | 52.50 | 1.82 | 184.79 | 0.3477 | -886.0 | -605.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -25.04 | 52.47 | 1.80 | 184.56 | 0.3590 | -832.0 | -708.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -24.51 | 51.82 | 1.14 | 182.98 | 0.3495 | -772.0 | -640.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -29.39 | 42.67 | -8.01 | 164.11 | 0.4454 | -765.0 | -665.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -29.25 | 42.27 | -8.41 | 163.27 | 0.4452 | -769.0 | -633.8 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -29.71 | 42.19 | -8.48 | 163.47 | 0.4523 | -572.0 | -481.8 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -26.05 | 38.31 | -12.36 | 152.79 | 0.4224 | -731.0 | -555.7 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -32.27 | 36.19 | -14.49 | 155.90 | 0.5202 | -651.0 | -535.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
