SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.53 | 310.05 | 70.17 | 255.23 | 8.74 | 102.09 | 51.42 | 284.38 | 0.7983 | 150.3 | 115.1 | |
|
previous
or next observation for the same group /

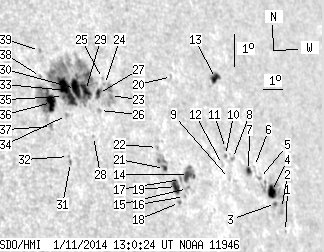

back to the solar disc SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.67 | 5.91 | 109.76 | 59.08 | 279.32 | 0.8668 | 69.0 | 183.1 | |
| 0.00 | 6.37 | 0.00 | 6.29 | 6.60 | 109.66 | 58.98 | 280.11 | 0.8668 | 25.0 | 33.5 | |
| 1.19 | 2.97 | 1.16 | 2.90 | 6.73 | 109.33 | 58.66 | 280.32 | 0.8642 | -532.9 | -463.4 | |
| 7.31 | 24.31 | 7.13 | 23.74 | 7.08 | 109.18 | 58.50 | 280.75 | 0.8633 | -467.3 | -43.3 | |
| 0.59 | 2.21 | 0.57 | 2.12 | 7.43 | 108.57 | 57.89 | 281.27 | 0.8585 | -518.3 | -379.1 | |
| 0.00 | 0.59 | 0.00 | 0.57 | 7.78 | 108.36 | 57.68 | 281.71 | 0.8572 | -368.0 | -312.9 | |
| 2.97 | 4.67 | 2.81 | 4.42 | 7.63 | 108.00 | 57.32 | 281.61 | 0.8538 | -509.5 | -360.1 | |
| 0.00 | 1.78 | 0.00 | 1.65 | 7.94 | 107.18 | 56.51 | 282.14 | 0.8470 | -536.0 | -381.1 | |
| 0.00 | 2.21 | 0.00 | 2.02 | 7.32 | 106.89 | 56.22 | 281.47 | 0.8433 | -482.0 | -360.5 | |
| 0.42 | 1.36 | 0.39 | 1.25 | 8.01 | 106.82 | 56.14 | 282.29 | 0.8438 | -659.6 | -587.5 | |
| 0.00 | 1.27 | 0.00 | 1.17 | 8.22 | 106.87 | 56.19 | 282.53 | 0.8445 | -550.0 | -439.7 | |
| 0.00 | 1.53 | 0.00 | 1.39 | 7.73 | 106.60 | 55.92 | 282.00 | 0.8413 | -631.0 | -506.3 | |
| 4.84 | 7.05 | 4.50 | 6.55 | 10.34 | 106.85 | 56.17 | 284.99 | 0.8482 | 446.3 | 279.9 | |
| 7.73 | 12.32 | 6.71 | 10.69 | 7.32 | 104.74 | 54.07 | 281.91 | 0.8230 | -577.8 | -395.3 | |
| 0.00 | 2.38 | 0.00 | 2.05 | 6.89 | 104.62 | 53.94 | 281.42 | 0.8210 | -439.0 | -460.3 | |
| 0.00 | 1.19 | 0.00 | 1.02 | 6.64 | 104.42 | 53.75 | 281.16 | 0.8187 | -273.0 | -346.4 | |
| 0.00 | 1.87 | 0.00 | 1.60 | 7.14 | 104.31 | 53.63 | 281.79 | 0.8184 | -427.0 | -460.2 | |
| 0.42 | 1.53 | 0.36 | 1.30 | 6.44 | 104.14 | 53.47 | 280.98 | 0.8156 | -624.2 | -553.9 | |
| 6.29 | 8.75 | 5.35 | 7.45 | 6.92 | 104.07 | 53.39 | 281.57 | 0.8157 | -796.0 | -588.9 | |
| 0.00 | 0.68 | 0.00 | 0.60 | 10.26 | 104.51 | 53.84 | 285.47 | 0.8265 | 485.0 | 392.0 | |
| 1.70 | 10.28 | 1.43 | 8.67 | 7.43 | 103.56 | 52.88 | 282.30 | 0.8115 | -774.8 | -519.6 | |
| 0.00 | 0.93 | 0.00 | 0.79 | 8.04 | 103.32 | 52.65 | 283.11 | 0.8104 | -609.0 | -576.5 | |
| 0.00 | 12.83 | 0.00 | 10.39 | 9.50 | 101.34 | 50.66 | 285.40 | 0.7935 | -255.0 | -220.7 | |
| 0.00 | 0.93 | 0.00 | 0.75 | 9.82 | 101.12 | 50.45 | 285.85 | 0.7921 | 168.0 | 124.4 | |
| 0.00 | 0.93 | 0.00 | 0.75 | 10.00 | 101.07 | 50.39 | 286.09 | 0.7919 | 336.0 | 251.5 | |
| 0.00 | 2.04 | 0.00 | 1.63 | 9.01 | 100.72 | 50.05 | 284.96 | 0.7860 | 491.0 | 386.9 | |
| 2.80 | 5.27 | 2.24 | 4.22 | 9.53 | 100.78 | 50.10 | 285.59 | 0.7878 | 414.3 | 233.8 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 8.20 | 100.30 | 49.62 | 284.07 | 0.7796 | 470.0 | 370.6 | |
| 6.88 | 144.14 | 5.44 | 112.81 | 9.58 | 100.19 | 49.51 | 285.83 | 0.7818 | 560.5 | 267.7 | |
| 10.79 | -29.00 | 8.46 | -29.00 | 9.62 | 99.73 | 49.06 | 286.01 | 0.7771 | 710.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.11 | 7.35 | 99.11 | 48.44 | 283.31 | 0.7649 | -469.0 | -554.6 | |
| 0.00 | 0.76 | 0.00 | 0.59 | 7.53 | 99.05 | 48.37 | 283.56 | 0.7646 | -626.0 | -618.4 | |
| 19.89 | -29.00 | 15.44 | -29.00 | 9.54 | 99.30 | 48.63 | 286.03 | 0.7723 | 896.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.11 | 8.77 | 99.16 | 48.49 | 285.11 | 0.7689 | 704.0 | 631.9 | |
| 0.85 | -29.00 | 0.66 | -29.00 | 9.34 | 99.13 | 48.46 | 285.84 | 0.7700 | 832.9 | 999999 | |
| 9.86 | 37.74 | 7.52 | 28.67 | 9.13 | 98.55 | 47.88 | 285.75 | 0.7632 | 907.7 | 650.1 | |
| 0.00 | 1.95 | 0.00 | 1.48 | 8.40 | 98.43 | 47.75 | 284.85 | 0.7599 | 587.0 | 504.7 | |
| 0.00 | 1.10 | 0.00 | 0.84 | 9.90 | 98.21 | 47.53 | 286.84 | 0.7615 | 520.0 | 486.4 | |
| 0.00 | 1.53 | 0.00 | 1.17 | 10.69 | 98.32 | 47.65 | 287.81 | 0.7650 | -418.0 | -420.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
