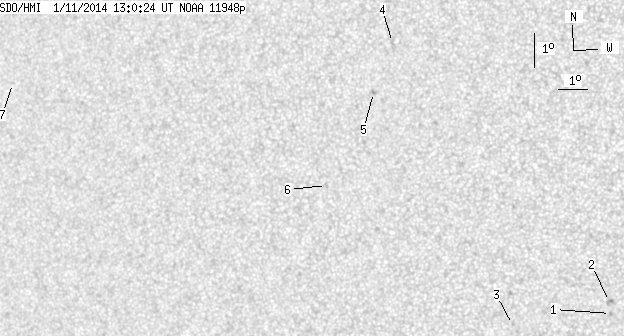

SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.23 | 0.00 | 6.83 | -10.08 | 24.64 | -26.04 | 105.81 | 0.4516 | 526.3 | 463.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.82 | -14.03 | 31.02 | -19.66 | 118.23 | 0.3721 | 734.0 | 549.9 | |
| 0.00 | 2.72 | 0.00 | 1.45 | -13.67 | 31.02 | -19.66 | 117.35 | 0.3696 | 760.0 | 715.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -14.27 | 27.80 | -22.88 | 115.64 | 0.4198 | 736.0 | 534.2 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -5.80 | 24.53 | -26.15 | 94.65 | 0.4417 | 454.0 | 344.0 | |
| 0.00 | 2.38 | 0.00 | 1.32 | -7.25 | 23.82 | -26.86 | 97.80 | 0.4543 | 900.0 | 697.2 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -9.94 | 22.01 | -28.67 | 103.02 | 0.4870 | 684.0 | 585.1 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -6.46 | 11.00 | -39.67 | 95.10 | 0.6392 | -584.0 | -390.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
