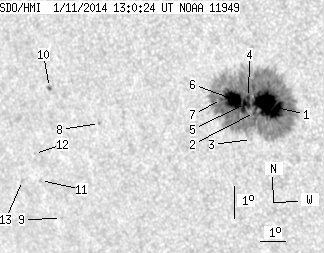

SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.23 | 442.44 | 42.37 | 279.30 | -16.30 | 13.73 | -36.95 | 111.24 | 0.6211 | 886.7 | 319.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.43 | 434.47 | 27.19 | 273.64 | -16.35 | 14.30 | -36.38 | 111.53 | 0.6141 | 1191.6 | 336.3 | |
| 1.19 | -1.00 | 0.75 | -1.00 | -16.54 | 13.76 | -36.92 | 111.61 | 0.6216 | 610.7 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.59 | -17.34 | 13.46 | -37.22 | 112.74 | 0.6284 | -212.0 | -169.2 | |
| 1.19 | -1.00 | 0.75 | -1.00 | -16.08 | 13.63 | -37.05 | 110.84 | 0.6217 | 878.6 | 999999 | |
| 1.53 | -1.00 | 0.97 | -1.00 | -16.25 | 13.48 | -37.20 | 111.05 | 0.6243 | 1137.7 | 999999 | |
| 18.02 | -1.00 | 11.46 | -1.00 | -16.11 | 13.04 | -37.63 | 110.68 | 0.6293 | 997.5 | 999999 | |
| 1.02 | -1.00 | 0.65 | -1.00 | -16.09 | 12.58 | -38.10 | 110.48 | 0.6351 | 448.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -16.58 | 7.50 | -43.18 | 109.62 | 0.6986 | -589.0 | -578.0 | |
| 0.00 | 1.10 | 0.00 | 0.80 | -19.36 | 4.95 | -45.73 | 112.71 | 0.7347 | -642.0 | -594.2 | |
| 0.85 | 2.21 | 0.60 | 1.57 | -15.40 | 5.69 | -44.99 | 107.52 | 0.7171 | -721.0 | -554.9 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -18.17 | 4.43 | -46.25 | 110.97 | 0.7374 | -576.0 | -488.8 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -17.34 | 4.43 | -46.24 | 109.87 | 0.7354 | -634.0 | -521.5 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -18.12 | 3.62 | -47.05 | 110.72 | 0.7461 | -367.0 | -330.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
