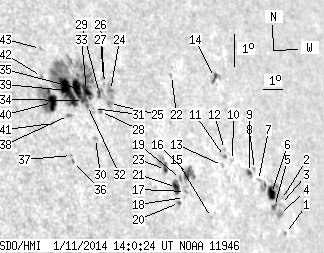

SDO HMI 2014-01-11 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.86 | 288.03 | 67.68 | 239.91 | 8.71 | 102.10 | 51.97 | 284.20 | 0.8038 | 185.4 | 116.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.42 | 1.36 | 0.43 | 1.37 | 5.87 | 109.85 | 59.72 | 279.16 | 0.8721 | 132.2 | 117.8 | |
| 0.00 | 1.02 | 0.00 | 1.03 | 6.88 | 109.81 | 59.68 | 280.32 | 0.8731 | 266.0 | 205.6 | |
| 0.00 | 1.02 | 0.00 | 1.02 | 6.73 | 109.72 | 59.59 | 280.16 | 0.8721 | 193.0 | 94.4 | |
| 0.00 | 4.76 | 0.00 | 4.76 | 6.42 | 109.59 | 59.47 | 279.83 | 0.8707 | -123.0 | -123.2 | |
| 2.12 | 5.44 | 2.11 | 5.39 | 6.64 | 109.35 | 59.22 | 280.12 | 0.8689 | -527.8 | -407.1 | |
| 7.22 | 20.48 | 7.17 | 20.33 | 7.03 | 109.25 | 59.12 | 280.58 | 0.8686 | -500.4 | -98.0 | |
| 0.00 | 1.27 | 0.00 | 1.24 | 7.37 | 108.57 | 58.44 | 281.10 | 0.8633 | -509.0 | -434.9 | |
| 0.00 | 1.27 | 0.00 | 1.24 | 7.69 | 108.41 | 58.29 | 281.50 | 0.8624 | -247.0 | -232.8 | |
| 1.70 | 4.16 | 1.64 | 4.01 | 7.58 | 108.11 | 57.98 | 281.43 | 0.8595 | -623.8 | -537.4 | |
| 0.00 | 0.93 | 0.00 | 0.88 | 7.89 | 107.22 | 57.10 | 281.96 | 0.8522 | -451.0 | -334.2 | |
| 0.59 | 1.53 | 0.55 | 1.42 | 7.98 | 106.80 | 56.68 | 282.15 | 0.8486 | -644.7 | -554.5 | |
| 0.00 | 0.93 | 0.00 | 0.87 | 8.20 | 106.85 | 56.72 | 282.39 | 0.8493 | -425.0 | -416.5 | |
| 0.00 | 1.53 | 0.00 | 1.41 | 7.70 | 106.63 | 56.51 | 281.86 | 0.8466 | -565.0 | -478.2 | |
| 2.38 | 5.35 | 2.25 | 5.05 | 10.37 | 106.85 | 56.73 | 284.90 | 0.8532 | 446.3 | 351.6 | |
| 0.00 | 0.68 | 0.00 | 0.61 | 6.09 | 105.75 | 55.62 | 280.14 | 0.8359 | -589.0 | -533.4 | |
| 6.71 | 11.22 | 5.90 | 9.87 | 7.32 | 104.76 | 54.63 | 281.79 | 0.8284 | -567.3 | -368.5 | |
| 0.00 | 1.70 | 0.00 | 1.48 | 6.79 | 104.51 | 54.38 | 281.22 | 0.8252 | -530.0 | -432.8 | |
| 0.00 | 0.59 | 0.00 | 0.52 | 6.61 | 104.43 | 54.30 | 281.01 | 0.8241 | -296.0 | -321.4 | |
| 0.00 | 1.70 | 0.00 | 1.48 | 7.17 | 104.32 | 54.19 | 281.71 | 0.8240 | -526.0 | -501.0 | |
| 0.76 | 1.70 | 0.66 | 1.46 | 6.44 | 104.15 | 54.02 | 280.87 | 0.8210 | -609.0 | -524.8 | |
| 5.52 | 8.07 | 4.76 | 6.96 | 6.89 | 104.07 | 53.94 | 281.42 | 0.8210 | -796.3 | -569.2 | |
| 0.00 | 0.76 | 0.00 | 0.68 | 10.29 | 104.54 | 54.41 | 285.37 | 0.8320 | 507.0 | 323.2 | |
| 1.27 | 9.86 | 1.09 | 8.42 | 7.40 | 103.60 | 53.47 | 282.14 | 0.8174 | -751.1 | -535.8 | |
| 0.85 | 7.14 | 0.70 | 5.85 | 9.65 | 101.35 | 51.22 | 285.43 | 0.7995 | -359.1 | -237.7 | |
| 0.00 | 3.99 | 0.00 | 3.26 | 9.25 | 101.21 | 51.09 | 284.98 | 0.7973 | -157.0 | -126.6 | |
| 0.00 | 0.93 | 0.00 | 0.76 | 9.85 | 101.10 | 50.97 | 285.74 | 0.7975 | 221.0 | 148.5 | |
| 0.00 | 1.19 | 0.00 | 0.97 | 10.03 | 101.09 | 50.97 | 285.97 | 0.7979 | 315.0 | 272.6 | |
| 0.00 | 1.61 | 0.00 | 1.30 | 8.98 | 100.73 | 50.60 | 284.78 | 0.7917 | 438.0 | 386.3 | |
| 1.87 | 4.67 | 1.51 | 3.79 | 9.53 | 100.79 | 50.67 | 285.44 | 0.7936 | 447.0 | 280.3 | |
| 0.00 | 1.53 | 0.00 | 1.22 | 8.14 | 100.34 | 50.21 | 283.84 | 0.7857 | 483.0 | 347.3 | |
| 0.00 | 0.68 | 0.00 | 0.54 | 9.05 | 100.42 | 50.29 | 284.95 | 0.7886 | 450.0 | 344.0 | |
| 0.25 | 137.92 | 0.20 | 109.15 | 9.13 | 100.15 | 50.02 | 285.12 | 0.7860 | 586.0 | 269.4 | |
| 6.37 | -32.00 | 5.10 | -32.00 | 9.59 | 100.19 | 50.07 | 285.68 | 0.7876 | 569.2 | 999999 | |
| 1.53 | -32.00 | 1.22 | -32.00 | 9.27 | 99.99 | 49.86 | 285.34 | 0.7847 | 608.7 | 999999 | |
| 11.22 | -32.00 | 8.90 | -32.00 | 9.62 | 99.78 | 49.65 | 285.84 | 0.7834 | 691.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.19 | 7.39 | 99.20 | 49.07 | 283.19 | 0.7719 | -522.0 | -498.9 | |
| 0.00 | 0.93 | 0.00 | 0.72 | 7.57 | 99.14 | 49.01 | 283.43 | 0.7716 | -664.0 | -589.7 | |
| 0.42 | 1.70 | 0.33 | 1.33 | 8.77 | 99.20 | 49.08 | 284.94 | 0.7752 | 653.6 | 570.1 | |
| 20.91 | -32.00 | 16.41 | -32.00 | 9.54 | 99.30 | 49.18 | 285.87 | 0.7782 | 883.9 | 999999 | |
| 8.75 | 33.82 | 6.75 | 25.98 | 9.13 | 98.54 | 48.41 | 285.59 | 0.7690 | 931.7 | 681.6 | |
| 0.00 | 1.02 | 0.00 | 0.78 | 8.49 | 98.43 | 48.30 | 284.80 | 0.7661 | 670.0 | 540.7 | |
| 0.00 | 1.02 | 0.00 | 0.78 | 9.90 | 98.19 | 48.06 | 286.67 | 0.7673 | 606.0 | 497.5 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 10.76 | 98.32 | 48.20 | 287.71 | 0.7711 | -338.0 | -391.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
