SDO HMI 2014-01-11 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.46 | 41.46 | 3.25 | 20.89 | -13.03 | 44.27 | -5.85 | 147.40 | 0.1847 | -74.5 | -510.1 | |
|
previous
or next observation for the same group /

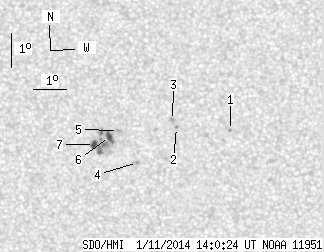

back to the solar disc SDO HMI 2014-01-11 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.55 | -12.82 | 47.79 | -2.34 | 165.19 | 0.1562 | 900.0 | 729.3 | |
| 0.00 | 1.10 | 0.00 | 0.55 | -12.72 | 46.16 | -3.97 | 155.59 | 0.1641 | 944.0 | 845.2 | |
| 0.00 | 2.63 | 0.00 | 1.32 | -12.51 | 46.04 | -4.09 | 154.39 | 0.1617 | 944.0 | 823.3 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -13.76 | 44.95 | -5.17 | 152.28 | 0.1892 | 1055.0 | 821.5 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -12.80 | 44.40 | -5.73 | 147.06 | 0.1799 | -935.0 | -716.7 | |
| 3.74 | 33.23 | 1.88 | 16.76 | -12.97 | 44.12 | -6.01 | 146.37 | 0.1850 | -1177.7 | -789.3 | |
| 2.72 | -6.00 | 1.37 | -6.00 | -13.21 | 43.66 | -6.47 | 145.13 | 0.1928 | -955.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
