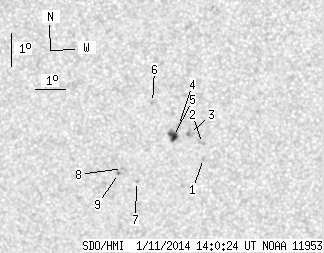

SDO HMI 2014-01-11 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.27 | 22.59 | 2.86 | 12.32 | -17.57 | 29.26 | -20.87 | 124.82 | 0.4154 | 346.1 | 396.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.83 | -18.13 | 30.20 | -19.92 | 127.13 | 0.4080 | 837.0 | 681.5 | |
| 0.00 | 2.21 | 0.00 | 1.20 | -17.67 | 30.22 | -19.90 | 126.21 | 0.4037 | 742.0 | 684.8 | |
| 0.00 | 3.74 | 0.00 | 2.02 | -17.36 | 29.83 | -20.29 | 125.06 | 0.4062 | 905.0 | 834.2 | |
| 0.00 | 2.46 | 0.00 | 1.34 | -17.11 | 29.50 | -20.63 | 124.13 | 0.4085 | 792.0 | 486.4 | |
| 5.27 | 8.07 | 2.86 | 4.39 | -17.43 | 29.30 | -20.83 | 124.58 | 0.4138 | 814.4 | 568.2 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -16.39 | 28.73 | -21.40 | 121.72 | 0.4133 | 719.0 | 648.1 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -18.77 | 27.89 | -22.24 | 125.65 | 0.4429 | -871.0 | -655.0 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -18.36 | 27.47 | -22.65 | 124.40 | 0.4449 | -910.0 | -686.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.51 | 27.32 | -22.81 | 124.52 | 0.4481 | -784.0 | -683.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
