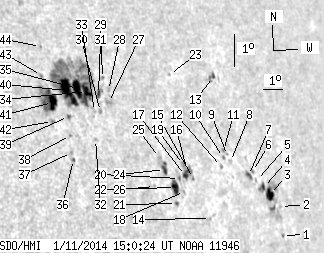

SDO HMI 2014-01-11 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.54 | 271.41 | 61.19 | 229.74 | 8.68 | 102.20 | 52.62 | 284.00 | 0.8101 | 153.6 | 131.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 1.19 | 0.52 | 1.22 | 5.80 | 109.82 | 60.25 | 279.00 | 0.8765 | 44.7 | 66.5 | |
| 0.00 | 1.19 | 0.00 | 1.22 | 6.68 | 109.87 | 60.30 | 279.98 | 0.8780 | 204.0 | 150.1 | |
| 6.97 | 33.90 | 7.04 | 34.32 | 7.00 | 109.28 | 59.71 | 280.45 | 0.8735 | -474.3 | -150.3 | |
| 1.61 | -3.00 | 1.62 | -3.00 | 7.19 | 108.97 | 59.39 | 280.72 | 0.8711 | -533.6 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.59 | 7.37 | 108.60 | 59.02 | 281.00 | 0.8682 | -468.0 | -378.3 | |
| 0.00 | 1.70 | 0.00 | 1.68 | 7.63 | 108.43 | 58.85 | 281.32 | 0.8671 | -326.0 | -226.4 | |
| 2.12 | 3.65 | 2.08 | 3.58 | 7.50 | 108.16 | 58.59 | 281.22 | 0.8647 | -650.5 | -495.8 | |
| 0.00 | 1.78 | 0.00 | 1.70 | 7.86 | 107.22 | 57.65 | 281.81 | 0.8570 | -398.0 | -287.0 | |
| 0.00 | 0.76 | 0.00 | 0.73 | 8.03 | 107.09 | 57.52 | 282.04 | 0.8562 | -327.0 | -381.2 | |
| 0.00 | 1.19 | 0.00 | 1.12 | 7.96 | 106.85 | 57.28 | 282.00 | 0.8539 | -551.0 | -545.9 | |
| 0.00 | 1.27 | 0.00 | 1.21 | 8.17 | 106.90 | 57.33 | 282.23 | 0.8547 | -396.0 | -329.7 | |
| 0.00 | 1.19 | 0.00 | 1.12 | 7.68 | 106.68 | 57.11 | 281.71 | 0.8519 | -530.0 | -444.1 | |
| 0.76 | 3.91 | 0.73 | 3.74 | 10.41 | 106.93 | 57.35 | 284.80 | 0.8586 | 378.4 | 462.1 | |
| 0.00 | 0.85 | 0.00 | 0.77 | 6.06 | 105.78 | 56.20 | 279.99 | 0.8413 | -587.0 | -459.7 | |
| 0.00 | 1.10 | 0.00 | 0.99 | 7.22 | 105.08 | 55.50 | 281.49 | 0.8365 | -347.0 | -260.1 | |
| 0.93 | 7.90 | 0.83 | 7.06 | 7.41 | 104.80 | 55.22 | 281.78 | 0.8342 | -586.3 | -415.5 | |
| 1.78 | -16.00 | 1.59 | -16.00 | 7.28 | 104.67 | 55.09 | 281.65 | 0.8328 | -662.2 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.83 | 6.79 | 104.53 | 54.95 | 281.10 | 0.8306 | -498.0 | -430.5 | |
| 0.00 | 2.29 | 0.00 | 2.04 | 7.61 | 104.63 | 55.05 | 282.05 | 0.8330 | -515.0 | -402.7 | |
| 0.00 | 1.44 | 0.00 | 1.27 | 7.17 | 104.34 | 54.76 | 281.59 | 0.8294 | -552.0 | -546.9 | |
| 0.59 | 1.53 | 0.52 | 1.34 | 6.41 | 104.05 | 54.48 | 280.74 | 0.8254 | -601.9 | -539.1 | |
| 6.46 | 8.50 | 5.65 | 7.43 | 6.89 | 104.08 | 54.50 | 281.31 | 0.8265 | -746.5 | -527.9 | |
| 0.00 | 0.68 | 0.00 | 0.61 | 10.32 | 104.52 | 54.94 | 285.27 | 0.8370 | 366.0 | 348.8 | |
| 2.12 | 5.52 | 1.84 | 4.79 | 7.40 | 103.61 | 54.03 | 282.02 | 0.8228 | -737.2 | -545.3 | |
| 0.00 | 1.78 | 0.00 | 1.54 | 7.75 | 103.42 | 53.84 | 282.48 | 0.8216 | -288.0 | -347.5 | |
| 0.00 | 1.10 | 0.00 | 0.94 | 6.85 | 103.01 | 53.43 | 281.49 | 0.8160 | -430.0 | -442.7 | |
| 0.00 | 3.40 | 0.00 | 2.81 | 9.28 | 101.20 | 51.62 | 284.87 | 0.8028 | -109.0 | -86.3 | |
| 0.00 | 1.02 | 0.00 | 0.85 | 9.64 | 101.28 | 51.70 | 285.30 | 0.8044 | -255.0 | -237.4 | |
| 0.00 | 1.44 | 0.00 | 1.19 | 9.99 | 101.07 | 51.49 | 285.78 | 0.8031 | 433.0 | 338.4 | |
| 0.00 | 2.04 | 0.00 | 1.67 | 8.98 | 100.75 | 51.18 | 284.62 | 0.7976 | 482.0 | 377.2 | |
| 1.78 | 4.42 | 1.46 | 3.62 | 9.49 | 100.76 | 51.19 | 285.25 | 0.7989 | 418.7 | 272.4 | |
| 0.00 | 1.02 | 0.00 | 0.82 | 8.11 | 100.35 | 50.77 | 283.66 | 0.7915 | 447.0 | 377.7 | |
| 0.00 | 1.02 | 0.00 | 0.83 | 8.96 | 100.46 | 50.89 | 284.68 | 0.7946 | 411.0 | 383.4 | |
| 6.46 | 129.24 | 5.23 | 103.50 | 9.55 | 100.20 | 50.63 | 285.48 | 0.7933 | 538.9 | 288.9 | |
| 10.71 | -34.00 | 8.59 | -34.00 | 9.62 | 99.79 | 50.22 | 285.68 | 0.7892 | 691.5 | 999999 | |
| 0.34 | 1.53 | 0.27 | 1.20 | 7.45 | 99.21 | 49.63 | 283.12 | 0.7781 | -610.8 | -556.9 | |
| 0.00 | 1.44 | 0.00 | 1.13 | 7.65 | 99.15 | 49.58 | 283.39 | 0.7779 | -673.0 | -563.3 | |
| 0.00 | 0.93 | 0.00 | 0.74 | 8.17 | 99.19 | 49.61 | 284.03 | 0.7795 | 606.0 | 488.2 | |
| 0.51 | 1.78 | 0.40 | 1.41 | 8.74 | 99.20 | 49.62 | 284.75 | 0.7809 | 661.5 | 616.2 | |
| 19.97 | -34.00 | 15.86 | -34.00 | 9.53 | 99.31 | 49.73 | 285.71 | 0.7840 | 880.6 | 999999 | |
| 8.92 | 31.95 | 6.96 | 24.82 | 9.12 | 98.54 | 48.96 | 285.42 | 0.7748 | 906.6 | 676.3 | |
| 0.00 | 1.61 | 0.00 | 1.25 | 8.55 | 98.43 | 48.86 | 284.72 | 0.7723 | 649.0 | 583.3 | |
| 0.00 | 1.61 | 0.00 | 1.26 | 9.92 | 98.19 | 48.61 | 286.53 | 0.7732 | 641.0 | 477.5 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 10.81 | 98.33 | 48.76 | 287.60 | 0.7772 | -248.0 | -272.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
