SDO HMI 2014-01-11 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 373.88 | 2162.24 | 297.92 | 1706.80 | -9.74 | 100.12 | 51.10 | 260.66 | 0.7768 | 494.5 | 183.6 | |
|
previous
or next observation for the same group /

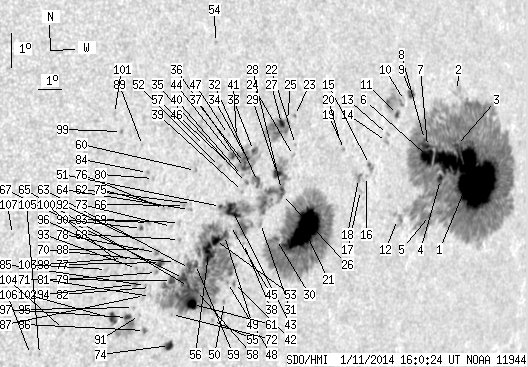

back to the solar disc SDO HMI 2014-01-11 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.60 | 1060.93 | 152.77 | 919.00 | -8.80 | 104.75 | 55.72 | 262.19 | 0.8265 | 996.1 | 254.9 | |
| 0.00 | 6.03 | 0.00 | 5.13 | -6.34 | 103.60 | 54.58 | 265.19 | 0.8150 | 383.0 | 381.7 | |
| 1.19 | -1.00 | 1.02 | -1.00 | -7.96 | 103.83 | 54.81 | 263.20 | 0.8173 | 960.6 | 999999 | |
| 3.74 | -1.00 | 3.15 | -1.00 | -9.01 | 103.23 | 54.20 | 261.90 | 0.8114 | 915.8 | 999999 | |
| 1.19 | -1.00 | 1.00 | -1.00 | -10.10 | 102.91 | 53.89 | 260.54 | 0.8086 | 692.0 | 999999 | |
| 14.27 | -1.00 | 11.80 | -1.00 | -8.37 | 102.43 | 53.41 | 262.67 | 0.8032 | 1138.6 | 999999 | |
| 1.36 | -1.00 | 1.12 | -1.00 | -8.07 | 102.37 | 53.35 | 263.04 | 0.8025 | 959.6 | 999999 | |
| 0.93 | -1.00 | 0.77 | -1.00 | -7.88 | 102.19 | 53.16 | 263.28 | 0.8005 | 787.5 | 999999 | |
| 3.82 | 5.69 | 3.08 | 4.59 | -6.56 | 101.33 | 52.30 | 264.94 | 0.7915 | 673.4 | 488.7 | |
| 0.00 | 1.78 | 0.00 | 1.43 | -6.79 | 101.02 | 52.00 | 264.65 | 0.7882 | 483.0 | 494.5 | |
| 1.78 | 24.21 | 1.42 | 19.20 | -7.22 | 100.75 | 51.72 | 264.10 | 0.7853 | 804.3 | 531.1 | |
| 0.00 | 10.62 | 0.00 | 8.59 | -10.30 | 101.36 | 52.33 | 260.20 | 0.7926 | 398.0 | 289.4 | |
| 0.00 | 1.61 | 0.00 | 1.28 | -7.83 | 100.37 | 51.35 | 263.31 | 0.7813 | 571.0 | 520.0 | |
| 0.00 | 2.63 | 0.00 | 2.08 | -8.04 | 100.36 | 51.33 | 263.04 | 0.7812 | 736.0 | 538.8 | |
| 0.85 | 4.84 | 0.66 | 3.78 | -8.76 | 99.68 | 50.66 | 262.09 | 0.7740 | 715.1 | 489.6 | |
| 0.00 | 0.76 | 0.00 | 0.59 | -9.12 | 99.61 | 50.58 | 261.62 | 0.7733 | 436.0 | 414.1 | |
| 0.00 | 2.29 | 0.00 | 1.78 | -9.55 | 99.41 | 50.38 | 261.05 | 0.7713 | 617.0 | 533.9 | |
| 0.00 | 6.97 | 0.00 | 5.38 | -9.20 | 99.25 | 50.22 | 261.50 | 0.7694 | 724.0 | 590.1 | |
| 0.00 | 0.93 | 0.00 | 0.71 | -8.38 | 98.45 | 49.42 | 262.54 | 0.7602 | 616.0 | 506.6 | |
| 0.00 | 1.19 | 0.00 | 0.90 | -8.19 | 98.23 | 49.20 | 262.79 | 0.7577 | 635.0 | 530.4 | |
| 66.78 | 354.13 | 49.50 | 262.26 | -10.84 | 97.09 | 48.07 | 259.18 | 0.7463 | 1152.9 | 272.6 | |
| 0.00 | 0.76 | 0.00 | 0.56 | -8.35 | 96.23 | 47.21 | 262.48 | 0.7347 | -574.0 | -431.2 | |
| 0.34 | 1.19 | 0.25 | 0.86 | -7.50 | 96.06 | 47.04 | 263.64 | 0.7324 | 555.8 | 432.1 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -8.68 | 96.20 | 47.17 | 262.03 | 0.7345 | -374.0 | -260.2 | |
| 0.68 | 37.04 | 0.49 | 26.52 | -7.66 | 95.78 | 46.76 | 263.41 | 0.7291 | 655.6 | 526.0 | |
| 1.02 | 134.41 | 0.74 | 95.54 | -9.85 | 95.92 | 46.89 | 260.41 | 0.7319 | 724.4 | 220.4 | |
| 3.65 | -25.00 | 2.62 | -25.00 | -7.76 | 95.53 | 46.51 | 263.26 | 0.7262 | 939.1 | 999999 | |
| 1.44 | -26.00 | 1.04 | -26.00 | -9.71 | 95.85 | 46.82 | 260.60 | 0.7310 | 889.2 | 999999 | |
| 5.10 | -26.00 | 3.67 | -26.00 | -9.25 | 95.59 | 46.57 | 261.22 | 0.7276 | -732.8 | 999999 | |
| 1.53 | -21.00 | 1.11 | -21.00 | -11.19 | 95.92 | 46.90 | 258.58 | 0.7331 | 963.3 | 999999 | |
| 0.00 | 3.14 | 0.00 | 2.25 | -10.76 | 95.13 | 46.11 | 259.09 | 0.7234 | 122.0 | 165.3 | |
| 4.25 | 9.94 | 3.01 | 7.05 | -9.53 | 94.77 | 45.75 | 260.77 | 0.7181 | -613.5 | -517.9 | |
| 1.02 | 45.37 | 0.72 | 31.81 | -8.62 | 94.46 | 45.43 | 262.01 | 0.7136 | -187.7 | -110.1 | |
| 0.68 | -33.00 | 0.48 | -33.00 | -8.87 | 94.24 | 45.21 | 261.64 | 0.7111 | -547.0 | 999999 | |
| 0.51 | 1.44 | 0.36 | 1.02 | -9.58 | 94.31 | 45.29 | 260.65 | 0.7125 | -793.8 | -710.2 | |
| 2.29 | -33.00 | 1.61 | -33.00 | -9.14 | 94.15 | 45.13 | 261.26 | 0.7103 | -824.0 | 999999 | |
| 0.68 | -33.00 | 0.48 | -33.00 | -8.99 | 94.13 | 45.11 | 261.46 | 0.7099 | -609.9 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.54 | -11.39 | 94.52 | 45.50 | 258.14 | 0.7168 | -168.0 | -153.8 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -9.85 | 94.19 | 45.16 | 260.26 | 0.7113 | -695.0 | -595.2 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -9.38 | 94.11 | 45.08 | 260.91 | 0.7099 | -738.0 | -562.7 | |
| 0.00 | 1.53 | 0.00 | 1.06 | -8.24 | 93.68 | 44.66 | 262.49 | 0.7040 | -502.0 | -393.0 | |
| 0.34 | 2.12 | 0.24 | 1.50 | -12.59 | 94.35 | 45.32 | 256.44 | 0.7162 | 661.2 | 507.0 | |
| 12.49 | -26.00 | 8.73 | -26.00 | -10.43 | 93.87 | 44.84 | 259.40 | 0.7079 | -796.6 | 999999 | |
| 1.87 | -33.00 | 1.30 | -33.00 | -8.81 | 93.60 | 44.57 | 261.68 | 0.7033 | -747.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -10.88 | 93.86 | 44.84 | 258.77 | 0.7083 | -171.0 | -195.6 | |
| 0.00 | 1.61 | 0.00 | 1.12 | -9.08 | 93.51 | 44.49 | 261.29 | 0.7024 | -724.0 | -674.3 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -8.20 | 93.34 | 44.31 | 262.53 | 0.6997 | -479.0 | -449.2 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -12.57 | 94.09 | 45.06 | 256.42 | 0.7131 | 503.0 | 411.9 | |
| 2.04 | 328.81 | 1.42 | 226.94 | -11.19 | 93.67 | 44.64 | 258.31 | 0.7063 | -537.6 | -86.5 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -13.14 | 94.09 | 45.06 | 255.63 | 0.7140 | 761.0 | 689.2 | |
| 1.10 | -26.00 | 0.77 | -26.00 | -10.34 | 93.34 | 44.32 | 259.48 | 0.7014 | 453.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.35 | -9.16 | 93.10 | 44.08 | 261.14 | 0.6975 | -725.0 | -643.0 | |
| 5.78 | -49.00 | 4.01 | -49.00 | -11.36 | 93.32 | 44.30 | 258.03 | 0.7023 | -874.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -5.52 | 92.49 | 43.47 | 266.39 | 0.6885 | -397.0 | -436.0 | |
| 0.00 | 0.93 | 0.00 | 0.66 | -13.73 | 93.71 | 44.69 | 254.74 | 0.7105 | 684.0 | 622.5 | |
| 13.68 | -49.00 | 9.46 | -49.00 | -11.72 | 93.10 | 44.07 | 257.47 | 0.7001 | -843.7 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -8.57 | 92.40 | 43.37 | 261.93 | 0.6882 | -540.0 | -652.8 | |
| 1.87 | -49.00 | 1.29 | -49.00 | -12.87 | 92.83 | 43.81 | 255.79 | 0.6985 | -339.0 | 999999 | |
| 2.21 | -49.00 | 1.52 | -49.00 | -12.11 | 92.63 | 43.61 | 256.85 | 0.6949 | -519.7 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.27 | -9.33 | 92.14 | 43.11 | 260.81 | 0.6855 | -820.0 | -678.3 | |
| 7.99 | -49.00 | 5.51 | -49.00 | -13.30 | 92.76 | 43.74 | 255.17 | 0.6983 | 915.1 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -10.31 | 92.13 | 43.11 | 259.38 | 0.6864 | -659.0 | -590.0 | |
| 4.50 | -49.00 | 3.08 | -49.00 | -12.24 | 92.41 | 43.38 | 256.63 | 0.6923 | -686.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -10.49 | 92.08 | 43.05 | 259.11 | 0.6860 | -771.0 | -666.7 | |
| 0.76 | -49.00 | 0.52 | -49.00 | -12.77 | 92.48 | 43.45 | 255.87 | 0.6940 | -433.7 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.80 | -10.38 | 91.85 | 42.83 | 259.23 | 0.6830 | -641.0 | -409.5 | |
| 5.01 | -49.00 | 3.42 | -49.00 | -12.54 | 92.22 | 43.20 | 256.15 | 0.6905 | -724.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.04 | -11.40 | 91.83 | 42.80 | 257.75 | 0.6840 | -716.0 | -630.6 | |
| 0.00 | 2.12 | 0.00 | 1.43 | -10.90 | 91.74 | 42.71 | 258.47 | 0.6822 | -637.0 | -459.0 | |
| 0.00 | 0.76 | 0.00 | 0.52 | -12.09 | 91.80 | 42.77 | 256.74 | 0.6846 | -680.0 | -632.8 | |
| 3.14 | -49.00 | 2.13 | -49.00 | -12.63 | 91.74 | 42.72 | 255.94 | 0.6848 | -778.2 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.52 | -13.64 | 91.96 | 42.93 | 254.53 | 0.6892 | -155.0 | -146.6 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -11.03 | 91.43 | 42.41 | 258.23 | 0.6786 | -681.0 | -572.2 | |
| 4.76 | 7.05 | 3.26 | 4.83 | -14.56 | 92.09 | 43.07 | 253.23 | 0.6927 | 767.8 | 541.8 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -10.47 | 91.22 | 42.19 | 259.02 | 0.6751 | -757.0 | -704.0 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -10.51 | 91.02 | 42.00 | 258.93 | 0.6727 | -592.0 | -526.7 | |
| 3.31 | 5.35 | 2.22 | 3.59 | -12.12 | 91.19 | 42.16 | 256.59 | 0.6770 | -782.6 | -584.7 | |
| 0.00 | 2.97 | 0.00 | 1.99 | -11.83 | 90.97 | 41.94 | 256.98 | 0.6739 | -941.0 | -704.0 | |
| 0.00 | 1.61 | 0.00 | 1.08 | -12.42 | 91.08 | 42.06 | 256.12 | 0.6762 | -677.0 | -630.6 | |
| 0.00 | 1.53 | 0.00 | 1.01 | -9.64 | 90.48 | 41.46 | 260.16 | 0.6648 | -753.0 | -577.5 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -13.14 | 90.99 | 41.96 | 255.04 | 0.6763 | -385.0 | -352.4 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -12.88 | 90.93 | 41.91 | 255.42 | 0.6751 | -720.0 | -622.6 | |
| 0.00 | 1.44 | 0.00 | 0.96 | -10.95 | 90.49 | 41.47 | 258.20 | 0.6665 | -793.0 | -659.6 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -9.48 | 90.22 | 41.19 | 260.38 | 0.6612 | -684.0 | -605.2 | |
| 0.00 | 1.10 | 0.00 | 0.74 | -12.83 | 90.72 | 41.69 | 255.45 | 0.6724 | -737.0 | -601.8 | |
| 0.76 | 2.38 | 0.51 | 1.60 | -14.17 | 90.96 | 41.94 | 253.54 | 0.6781 | -624.4 | -454.2 | |
| 0.00 | 3.40 | 0.00 | 2.27 | -13.12 | 90.74 | 41.71 | 255.02 | 0.6732 | -642.0 | -449.8 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -11.76 | 90.39 | 41.37 | 256.97 | 0.6665 | -767.0 | -657.4 | |
| 0.00 | 0.76 | 0.00 | 0.50 | -8.69 | 89.91 | 40.89 | 261.54 | 0.6565 | -623.0 | -510.9 | |
| 0.76 | 1.87 | 0.50 | 1.23 | -11.14 | 90.24 | 41.22 | 257.87 | 0.6636 | -850.1 | -726.2 | |
| 0.00 | 1.10 | 0.00 | 0.74 | -13.73 | 90.66 | 41.64 | 254.11 | 0.6734 | -436.0 | -406.5 | |
| 0.00 | 1.61 | 0.00 | 1.07 | -11.53 | 90.19 | 41.17 | 257.28 | 0.6635 | -704.0 | -633.8 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -12.34 | 90.26 | 41.23 | 256.08 | 0.6657 | -732.0 | -671.8 | |
| 0.68 | 1.87 | 0.45 | 1.24 | -12.81 | 90.31 | 41.29 | 255.38 | 0.6672 | -766.2 | -645.7 | |
| 0.00 | 1.19 | 0.00 | 0.79 | -13.50 | 90.37 | 41.35 | 254.38 | 0.6693 | -604.0 | -473.5 | |
| 0.00 | 1.87 | 0.00 | 1.23 | -12.14 | 90.02 | 40.99 | 256.33 | 0.6624 | -786.0 | -670.1 | |
| 2.29 | 23.96 | 1.52 | 15.91 | -13.81 | 90.19 | 41.17 | 253.88 | 0.6678 | -699.7 | 83.1 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -12.07 | 89.65 | 40.62 | 256.37 | 0.6575 | -764.0 | -748.2 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -8.32 | 89.04 | 40.01 | 262.04 | 0.6447 | -802.0 | -753.9 | |
| 0.00 | 0.42 | 0.00 | 0.28 | -12.22 | 89.59 | 40.57 | 256.13 | 0.6571 | -650.0 | -646.0 | |
| 0.00 | 1.70 | 0.00 | 1.09 | -7.80 | 88.71 | 39.68 | 262.82 | 0.6399 | -558.0 | -442.4 | |
| 4.84 | 7.56 | 3.19 | 4.98 | -13.87 | 89.60 | 40.58 | 253.65 | 0.6605 | -816.9 | -625.4 | |
| 0.00 | 1.87 | 0.00 | 1.22 | -12.42 | 89.08 | 40.05 | 255.71 | 0.6508 | -778.0 | -606.1 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -14.28 | 87.75 | 38.72 | 252.52 | 0.6379 | -685.0 | -564.3 | |
| 0.00 | 0.93 | 0.00 | 0.59 | -15.07 | 86.97 | 37.95 | 251.06 | 0.6301 | -518.0 | -433.7 | |
| 0.00 | 0.93 | 0.00 | 0.59 | -15.08 | 86.63 | 37.60 | 250.93 | 0.6257 | -689.0 | -549.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -11.54 | 85.32 | 36.29 | 256.25 | 0.5993 | -665.0 | -522.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
