SDO HMI 2014-01-11 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.43 | 267.69 | 65.04 | 227.79 | 8.78 | 101.89 | 52.86 | 284.05 | 0.8129 | 165.5 | 161.9 | |
|
previous
or next observation for the same group /

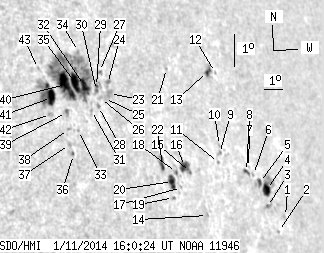

back to the solar disc SDO HMI 2014-01-11 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.59 | 0.00 | 0.63 | 6.24 | 110.39 | 61.36 | 279.31 | 0.8861 | -255.0 | -215.6 | |
| 0.00 | 1.02 | 0.00 | 1.06 | 5.75 | 109.86 | 60.83 | 278.86 | 0.8813 | 86.0 | 85.7 | |
| 0.68 | 3.99 | 0.70 | 4.12 | 6.47 | 109.33 | 60.30 | 279.75 | 0.8778 | -585.5 | -397.4 | |
| 6.71 | 16.99 | 6.91 | 17.57 | 6.98 | 109.38 | 60.35 | 280.32 | 0.8788 | -436.5 | 92.3 | |
| 2.21 | 4.67 | 2.25 | 4.75 | 7.17 | 109.00 | 59.97 | 280.59 | 0.8759 | -540.0 | -507.7 | |
| 0.00 | 1.02 | 0.00 | 1.03 | 7.39 | 108.69 | 59.66 | 280.90 | 0.8736 | -278.0 | -273.8 | |
| 0.00 | 0.85 | 0.00 | 0.85 | 7.58 | 108.44 | 59.41 | 281.16 | 0.8718 | -161.0 | -288.0 | |
| 1.70 | 2.89 | 1.70 | 2.88 | 7.45 | 108.29 | 59.26 | 281.04 | 0.8704 | -610.5 | -515.8 | |
| 0.00 | 2.04 | 0.00 | 1.96 | 7.90 | 106.84 | 57.81 | 281.83 | 0.8586 | -619.0 | -496.2 | |
| 0.00 | 0.93 | 0.00 | 0.90 | 8.14 | 106.89 | 57.87 | 282.10 | 0.8594 | -405.0 | -345.6 | |
| 0.00 | 0.93 | 0.00 | 0.89 | 7.62 | 106.72 | 57.70 | 281.53 | 0.8571 | -464.0 | -403.0 | |
| 0.00 | 0.85 | 0.00 | 0.84 | 10.37 | 107.26 | 58.24 | 284.57 | 0.8662 | 223.0 | 152.7 | |
| 2.89 | 5.95 | 2.81 | 5.79 | 10.37 | 106.80 | 57.78 | 284.67 | 0.8623 | 593.2 | 325.7 | |
| 0.00 | 1.19 | 0.00 | 1.10 | 5.98 | 105.80 | 56.78 | 279.79 | 0.8464 | -490.0 | -397.4 | |
| 0.42 | 10.37 | 0.39 | 9.40 | 7.22 | 105.10 | 56.08 | 281.39 | 0.8419 | -394.0 | -378.6 | |
| 5.61 | -15.00 | 5.08 | -15.00 | 7.39 | 104.81 | 55.79 | 281.63 | 0.8395 | -565.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.91 | 6.74 | 104.54 | 55.51 | 280.93 | 0.8358 | -393.0 | -376.4 | |
| 0.76 | 1.87 | 0.68 | 1.67 | 7.18 | 104.35 | 55.33 | 281.48 | 0.8348 | -569.2 | -487.5 | |
| 0.34 | 1.19 | 0.30 | 1.05 | 6.41 | 104.06 | 55.04 | 280.63 | 0.8308 | -638.2 | -580.7 | |
| 5.95 | 8.67 | 5.27 | 7.68 | 6.89 | 104.09 | 55.07 | 281.20 | 0.8319 | -748.9 | -500.3 | |
| 0.00 | 0.68 | 0.00 | 0.62 | 10.33 | 104.54 | 55.51 | 285.14 | 0.8422 | 328.0 | 300.2 | |
| 1.78 | 6.29 | 1.57 | 5.53 | 7.35 | 103.65 | 54.63 | 281.83 | 0.8285 | -697.5 | -571.1 | |
| 0.00 | 4.50 | 0.00 | 3.79 | 9.38 | 101.39 | 52.37 | 284.80 | 0.8104 | -241.0 | -188.8 | |
| 0.00 | 2.89 | 0.00 | 2.43 | 9.68 | 101.36 | 52.34 | 285.17 | 0.8108 | -365.0 | -276.0 | |
| 0.00 | 1.27 | 0.00 | 1.06 | 9.21 | 101.11 | 52.09 | 284.67 | 0.8073 | -78.0 | -30.1 | |
| 0.00 | 1.87 | 0.00 | 1.55 | 9.20 | 100.91 | 51.89 | 284.71 | 0.8053 | 190.0 | 132.0 | |
| 0.34 | 1.70 | 0.28 | 1.42 | 10.03 | 101.05 | 52.02 | 285.68 | 0.8085 | 362.5 | 222.4 | |
| 0.00 | 1.61 | 0.00 | 1.34 | 8.95 | 100.77 | 51.74 | 284.44 | 0.8032 | 444.0 | 389.3 | |
| 0.59 | 5.78 | 0.49 | 4.80 | 9.56 | 100.80 | 51.77 | 285.17 | 0.8049 | 472.3 | 283.1 | |
| 0.51 | -29.00 | 0.42 | -29.00 | 9.43 | 100.77 | 51.74 | 285.03 | 0.8044 | 427.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.98 | 8.81 | 100.40 | 51.37 | 284.37 | 0.7992 | 408.0 | 325.1 | |
| 6.54 | 129.31 | 5.36 | 104.81 | 9.55 | 100.22 | 51.19 | 285.33 | 0.7991 | 529.5 | 280.5 | |
| 0.00 | 0.85 | 0.00 | 0.68 | 8.16 | 99.66 | 50.63 | 283.76 | 0.7902 | 447.0 | 371.2 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 10.58 | 100.16 | 51.13 | 286.60 | 0.8009 | -137.0 | -106.4 | |
| 10.45 | -32.00 | 8.49 | -32.00 | 9.62 | 99.80 | 50.78 | 285.52 | 0.7950 | 677.3 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.88 | 7.42 | 99.30 | 50.27 | 282.93 | 0.7848 | -589.0 | -572.1 | |
| 0.00 | 2.21 | 0.00 | 1.75 | 7.71 | 99.16 | 50.13 | 283.33 | 0.7840 | -459.0 | -422.2 | |
| 0.00 | 1.10 | 0.00 | 0.88 | 8.17 | 99.19 | 50.16 | 283.89 | 0.7853 | 618.0 | 550.5 | |
| 0.00 | 2.63 | 0.00 | 2.10 | 8.68 | 99.19 | 50.16 | 284.53 | 0.7865 | 608.0 | 555.1 | |
| 19.37 | -32.00 | 15.57 | -32.00 | 9.53 | 99.31 | 50.28 | 285.55 | 0.7897 | 869.5 | 999999 | |
| 8.58 | 30.93 | 6.77 | 24.31 | 9.10 | 98.57 | 49.54 | 285.22 | 0.7810 | 896.5 | 695.7 | |
| 0.00 | 2.55 | 0.00 | 2.00 | 8.58 | 98.43 | 49.40 | 284.61 | 0.7782 | 613.0 | 496.6 | |
| 0.00 | 0.93 | 0.00 | 0.73 | 9.95 | 98.14 | 49.12 | 286.41 | 0.7786 | 422.0 | 427.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
