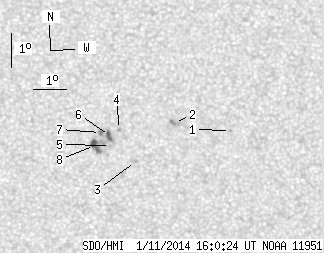

SDO HMI 2014-01-11 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.71 | 31.34 | 3.38 | 15.77 | -13.06 | 44.34 | -4.68 | 153.03 | 0.1752 | -388.0 | -408.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.38 | -12.83 | 47.81 | -1.22 | 172.16 | 0.1524 | 898.0 | 737.6 | |
| 0.00 | 4.16 | 0.00 | 2.09 | -12.58 | 46.12 | -2.91 | 161.29 | 0.1550 | 1014.0 | 874.0 | |
| 0.00 | 1.70 | 0.00 | 0.86 | -13.74 | 44.92 | -4.11 | 157.29 | 0.1810 | 917.0 | 694.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -12.78 | 44.45 | -4.57 | 152.55 | 0.1695 | -1054.0 | -837.5 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -13.26 | 44.17 | -4.86 | 152.45 | 0.1790 | -740.0 | -621.4 | |
| 2.46 | 19.71 | 1.24 | 9.92 | -12.96 | 44.14 | -4.88 | 151.51 | 0.1747 | -1219.9 | -869.5 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -12.87 | 43.87 | -5.15 | 149.94 | 0.1756 | -1048.0 | -896.0 | |
| 4.25 | -6.00 | 2.14 | -6.00 | -13.25 | 43.68 | -5.34 | 150.15 | 0.1830 | -987.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
