Sunspot Group 11944

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11944	366.29	2124.64	295.31	1697.38	-9.76	100.10	51.63	260.68	0.7825	485.7	182.7

previous or next observation for the same group / back to the solar disc

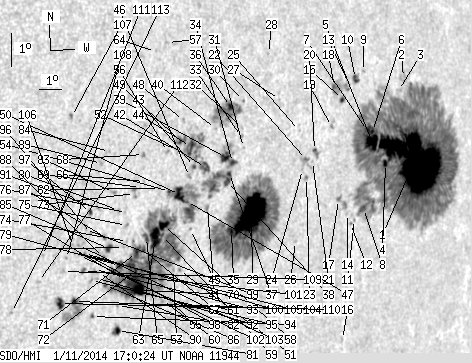

SDO HMI 2014-01-11 17:00:24 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	167.70	1035.53	148.80	910.03	-8.80	104.73	56.26	262.20	0.8316	981.8	256.7
2	0.00	6.20	0.00	5.35	-6.40	103.68	55.21	265.12	0.8213	451.0	430.2
3	0.00	1.87	0.00	1.61	-6.79	103.48	55.01	264.63	0.8193	327.0	225.5
4	2.46	-1.00	2.10	-1.00	-8.98	103.23	54.76	261.96	0.8170	953.3	999999
5	13.17	-1.00	11.03	-1.00	-8.40	102.44	53.97	262.65	0.8089	1139.1	999999
6	1.10	-1.00	0.92	-1.00	-8.08	102.38	53.90	263.05	0.8082	948.6	999999
7	2.55	-1.00	2.12	-1.00	-8.06	102.12	53.65	263.06	0.8056	1013.3	999999
8	4.16	-1.00	3.49	-1.00	-10.36	102.43	53.95	260.21	0.8093	511.3	999999
9	0.00	1.36	0.00	1.12	-6.34	101.63	53.16	265.21	0.8004	-234.0	-136.9
10	3.31	5.86	2.70	4.78	-6.57	101.27	52.79	264.93	0.7966	702.0	488.6
11	0.00	0.85	0.00	0.71	-10.71	102.05	53.58	259.76	0.8057	-194.0	-162.7
12	0.00	1.02	0.00	0.85	-10.84	101.88	53.41	259.59	0.8041	-217.0	-244.2
13	0.00	1.27	0.00	1.03	-6.70	100.94	52.47	264.76	0.7932	559.0	540.9
14	0.00	1.36	0.00	1.12	-10.56	101.66	53.19	259.93	0.8016	22.0	28.5
15	1.78	2.97	1.44	2.40	-7.22	100.73	52.26	264.10	0.7910	755.6	613.2
16	0.00	0.85	0.00	0.72	-14.29	102.52	54.05	255.38	0.8130	540.0	451.3
17	1.02	7.56	0.83	6.18	-10.17	101.12	52.64	260.39	0.7958	682.8	370.6
18	1.70	15.72	1.36	12.60	-6.86	100.28	51.81	264.56	0.7862	73.0	570.4
19	0.00	1.53	0.00	1.22	-8.04	100.34	51.86	263.05	0.7869	698.0	591.8
20	1.02	4.42	0.80	3.49	-8.79	99.66	51.18	262.07	0.7797	666.2	502.4
21	0.00	0.85	0.00	0.67	-9.12	99.62	51.15	261.65	0.7795	441.0	405.3
22	0.85	7.90	0.66	6.18	-9.08	99.33	50.86	261.69	0.7763	754.1	565.6
23	0.42	1.95	0.33	1.53	-9.61	99.44	50.96	261.01	0.7777	601.6	481.8
24	0.00	0.68	0.00	0.53	-9.38	99.20	50.73	261.29	0.7750	591.0	506.2
25	0.00	0.59	0.00	0.46	-8.24	98.84	50.37	262.75	0.7707	279.0	320.0
26	0.00	1.02	0.00	0.80	-11.52	99.35	50.88	258.54	0.7779	370.0	240.6
27	0.00	0.85	0.00	0.64	-7.38	97.78	49.30	263.86	0.7586	447.0	370.1
28	0.00	0.51	0.00	0.38	-6.06	97.10	48.63	265.61	0.7508	-524.0	-487.3
29	62.10	353.33	46.55	264.47	-10.81	97.12	48.65	259.28	0.7528	1144.8	274.7
30	0.00	0.76	0.00	0.56	-7.50	96.17	47.70	263.66	0.7402	611.0	585.0
31	0.00	0.68	0.00	0.50	-8.88	96.39	47.92	261.80	0.7432	420.0	450.2
32	0.00	1.10	0.00	0.81	-8.32	96.25	47.78	262.55	0.7414	-522.0	-415.6
33	0.00	1.44	0.00	1.06	-8.56	96.25	47.77	262.23	0.7414	-161.0	-267.2
34	2.29	21.83	1.68	15.90	-9.35	95.98	47.51	261.14	0.7387	408.4	-191.9
35	2.80	-29.00	2.07	-29.00	-11.36	96.34	47.86	258.47	0.7444	1061.5	999999
36	2.97	42.73	2.16	30.96	-7.70	95.63	47.15	263.37	0.7338	999.2	500.6
37	1.27	38.23	0.93	27.71	-9.68	95.91	47.44	260.69	0.7381	911.3	575.7
38	3.06	-37.00	2.23	-37.00	-9.92	95.86	47.39	260.36	0.7377	780.1	999999
39	5.61	-34.00	4.08	-34.00	-9.22	95.65	47.18	261.30	0.7348	-717.6	999999
40	0.00	1.10	0.00	0.79	-8.39	95.07	46.60	262.41	0.7275	473.0	464.8
41	0.00	2.21	0.00	1.59	-10.73	95.14	46.67	259.19	0.7299	92.0	129.3
42	4.93	58.28	3.53	41.35	-9.56	94.83	46.36	260.77	0.7253	-599.8	-244.7
43	1.10	2.72	0.78	1.93	-9.55	94.35	45.88	260.74	0.7197	-748.3	-640.0
44	7.14	-42.00	5.05	-42.00	-8.97	94.08	45.61	261.53	0.7160	-471.6	999999
45	0.00	0.93	0.00	0.67	-11.42	94.54	46.06	258.17	0.7235	-289.0	-177.1
46	0.00	2.21	0.00	1.57	-9.86	94.19	45.72	260.30	0.7179	-659.0	-538.5
47	0.68	61.00	0.48	43.29	-10.60	94.20	45.73	259.27	0.7187	-369.6	106.7
48	0.00	1.61	0.00	1.13	-8.22	93.67	45.20	262.56	0.7106	-432.0	-355.8
49	1.70	-42.00	1.19	-42.00	-8.84	93.64	45.17	261.68	0.7105	-707.7	999999
50	9.35	-47.00	6.59	-47.00	-10.41	93.86	45.39	259.50	0.7145	-843.2	999999
51	0.00	1.10	0.00	0.79	-12.66	94.33	45.86	256.44	0.7226	666.0	579.6
52	0.00	2.80	0.00	1.96	-9.12	93.55	45.08	261.29	0.7097	-646.0	-607.6
53	0.00	1.02	0.00	0.72	-12.64	94.06	45.59	256.42	0.7195	598.0	521.2
54	0.68	-47.00	0.48	-47.00	-10.34	93.42	44.95	259.55	0.7091	401.6	999999
55	0.00	2.80	0.00	2.00	-13.60	94.12	45.65	255.10	0.7215	546.0	534.7
56	0.00	1.61	0.00	1.12	-9.17	93.14	44.67	261.18	0.7047	-780.0	-692.8
57	0.00	1.27	0.00	0.88	-5.96	92.72	44.25	265.76	0.6983	-532.0	-455.2
58	6.03	325.21	4.22	226.63	-11.36	93.36	44.89	258.11	0.7095	-840.3	-82.0
59	0.93	-58.00	0.65	-58.00	-11.66	93.38	44.91	257.69	0.7100	-521.6	999999
60	0.00	1.78	0.00	1.26	-13.58	93.81	45.34	255.07	0.7179	708.0	668.9
61	0.00	0.68	0.00	0.48	-13.74	93.72	45.25	254.84	0.7171	746.0	691.1
62	0.00	0.85	0.00	0.59	-10.27	92.99	44.52	259.59	0.7038	438.0	358.8
63	14.02	-58.00	9.78	-58.00	-11.73	93.10	44.62	257.55	0.7067	-855.5	999999
64	0.00	0.34	0.00	0.23	-6.25	92.26	43.78	265.33	0.6925	-276.0	-237.0
65	2.55	-58.00	1.77	-58.00	-11.75	92.72	44.25	257.46	0.7022	-801.9	999999
66	0.00	0.85	0.00	0.58	-10.10	92.33	43.86	259.77	0.6955	-526.0	-370.1
67	0.85	-58.00	0.59	-58.00	-12.14	92.67	44.20	256.90	0.7021	-510.0	999999
68	0.00	2.12	0.00	1.45	-9.30	92.16	43.68	260.90	0.6927	-741.0	-687.4
69	0.00	0.51	0.00	0.35	-10.28	92.19	43.72	259.49	0.6940	-389.0	-464.3
70	8.16	-58.00	5.68	-58.00	-13.33	92.77	44.29	255.23	0.7051	928.7	999999
71	5.44	-58.00	3.75	-58.00	-12.21	92.39	43.92	256.75	0.6989	-670.8	999999
72	1.27	-58.00	0.88	-58.00	-12.75	92.46	43.99	256.00	0.7005	-457.6	999999
73	0.00	3.91	0.00	2.67	-10.47	91.98	43.50	259.19	0.6915	-671.0	-567.8
74	0.00	0.85	0.00	0.58	-11.91	91.95	43.48	257.12	0.6931	-603.0	-476.1
75	0.00	1.27	0.00	0.87	-11.44	91.82	43.35	257.78	0.6908	-765.0	-628.5
76	0.00	0.42	0.00	0.29	-11.05	91.75	43.28	258.33	0.6894	-648.0	-569.0
77	0.68	-58.00	0.47	-58.00	-13.04	92.07	43.59	255.52	0.6962	-353.8	999999
78	0.00	0.51	0.00	0.35	-12.09	91.82	43.35	256.83	0.6917	-682.0	-644.5
79	3.65	-58.00	2.50	-58.00	-12.63	91.77	43.30	256.04	0.6919	-760.9	999999
80	0.00	1.78	0.00	1.21	-11.01	91.41	42.94	258.34	0.6851	-582.0	-565.2
81	2.97	6.46	2.05	4.46	-14.57	92.13	43.66	253.35	0.6997	799.5	617.1
82	0.00	0.85	0.00	0.58	-13.83	91.95	43.48	254.37	0.6961	-271.0	-207.3
83	0.00	2.55	0.00	1.72	-10.49	91.11	42.64	259.06	0.6808	-842.0	-664.7
84	0.00	0.76	0.00	0.51	-9.28	90.76	42.29	260.80	0.6751	-583.0	-495.6
85	2.63	4.67	1.78	3.16	-12.15	91.22	42.74	256.64	0.6843	-804.3	-611.0
86	0.68	-58.00	0.46	-58.00	-13.25	91.32	42.85	255.06	0.6875	-515.1	999999
87	0.00	2.55	0.00	1.72	-11.83	91.03	42.56	257.08	0.6815	-828.0	-664.1
88	0.00	1.70	0.00	1.15	-12.43	91.06	42.59	256.21	0.6829	-677.0	-621.3
89	0.00	1.36	0.00	0.91	-9.65	90.49	42.02	260.22	0.6720	-777.0	-614.5
90	0.00	1.10	0.00	0.75	-12.88	90.95	42.48	255.53	0.6823	-712.0	-640.6
91	0.00	1.36	0.00	0.91	-10.99	90.55	42.08	258.24	0.6743	-758.0	-626.8
92	0.00	1.02	0.00	0.69	-13.06	90.95	42.48	255.27	0.6825	-576.0	-516.2
93	0.00	1.02	0.00	0.69	-12.80	90.77	42.30	255.61	0.6799	-757.0	-649.0
94	0.51	1.70	0.35	1.15	-14.20	90.99	42.52	253.63	0.6853	-545.3	-449.1
95	0.00	1.19	0.00	0.80	-13.13	90.72	42.24	255.12	0.6798	-558.0	-434.4
96	0.00	0.93	0.00	0.62	-11.74	90.44	41.97	257.11	0.6740	-735.0	-640.1
97	1.10	2.04	0.74	1.36	-11.12	90.29	41.82	258.01	0.6712	-753.9	-657.6
98	0.00	1.36	0.00	0.91	-12.42	90.49	42.02	256.11	0.6757	-691.0	-631.8
99	0.00	1.02	0.00	0.68	-11.63	90.18	41.70	257.23	0.6705	-642.0	-636.6
100	0.00	1.27	0.00	0.85	-12.35	90.27	41.80	256.19	0.6729	-679.0	-646.1
101	0.85	2.55	0.57	1.70	-12.85	90.33	41.86	255.45	0.6745	-737.1	-615.2
102	0.00	1.10	0.00	0.74	-12.41	90.08	41.61	256.05	0.6706	-642.0	-475.5
103	0.00	0.93	0.00	0.62	-12.12	89.99	41.51	256.47	0.6689	-721.0	-642.3
104	2.29	23.62	1.53	15.81	-13.79	90.16	41.69	254.04	0.6742	-704.7	25.0
105	0.00	1.10	0.00	0.73	-12.33	89.86	41.39	256.13	0.6677	-598.0	-545.1
106	0.00	0.85	0.00	0.56	-12.10	89.74	41.27	256.45	0.6657	-790.0	-716.4
107	0.00	1.78	0.00	1.16	-8.32	89.11	40.64	262.09	0.6530	-832.0	-747.0
108	0.00	0.76	0.00	0.51	-12.53	89.58	41.11	255.78	0.6645	-801.0	-724.9
109	0.00	1.44	0.00	0.95	-12.92	89.54	41.06	255.19	0.6646	-675.0	-622.5
110	4.76	7.73	3.16	5.13	-13.88	89.61	41.14	253.78	0.6675	-862.1	-647.7
111	0.00	1.02	0.00	0.66	-12.48	88.61	40.14	255.65	0.6521	-644.0	-628.9
112	0.00	1.36	0.00	0.89	-13.26	88.60	40.13	254.46	0.6535	-580.0	-485.1
113	0.00	0.93	0.00	0.60	-14.23	87.73	39.26	252.76	0.6446	-612.0	-514.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
