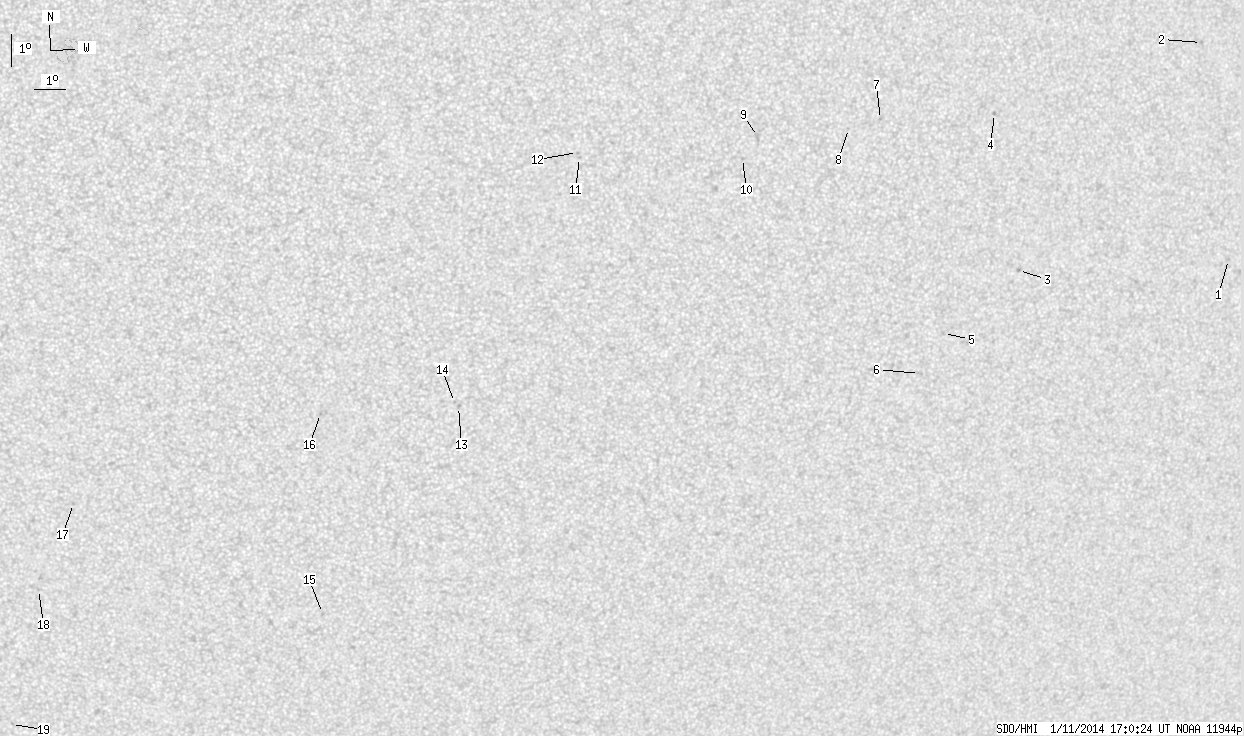

SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.95 | 0.00 | 14.24 | -19.95 | 64.66 | 16.19 | 221.89 | 0.4189 | -475.8 | -298.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.78 | -18.81 | 81.76 | 33.29 | 243.08 | 0.5849 | 771.0 | 612.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -12.34 | 79.65 | 31.17 | 253.26 | 0.5302 | -805.0 | -695.1 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -19.40 | 74.33 | 25.85 | 236.79 | 0.4937 | 829.0 | 616.9 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -14.68 | 72.83 | 24.36 | 244.72 | 0.4432 | -848.0 | -691.6 | |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.40 | 72.07 | 23.60 | 231.02 | 0.4815 | 716.0 | 484.2 | |
| 0.00 | 2.04 | 0.00 | 1.15 | -22.66 | 71.46 | 22.98 | 228.20 | 0.4854 | 740.0 | 556.0 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -14.96 | 69.10 | 20.63 | 240.64 | 0.3922 | -796.0 | -539.8 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -15.25 | 68.09 | 19.62 | 238.81 | 0.3803 | -872.0 | -656.8 | |
| 0.00 | 4.33 | 0.00 | 2.28 | -15.56 | 65.19 | 16.71 | 234.16 | 0.3433 | -847.0 | -621.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -16.23 | 64.76 | 16.29 | 231.87 | 0.3439 | -767.0 | -505.8 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -16.28 | 59.61 | 11.14 | 221.35 | 0.2820 | -967.0 | -736.5 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.13 | 59.54 | 11.07 | 221.54 | 0.2794 | -910.0 | -778.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -23.95 | 56.21 | 7.74 | 199.97 | 0.3621 | -836.0 | -705.9 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -23.83 | 56.08 | 7.60 | 199.77 | 0.3594 | -818.0 | -570.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -30.62 | 52.00 | 3.53 | 186.79 | 0.4503 | -722.0 | -611.3 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -24.20 | 51.75 | 3.27 | 188.66 | 0.3478 | -784.0 | -633.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -27.03 | 43.64 | -4.83 | 169.07 | 0.3974 | -749.0 | -599.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -29.80 | 42.32 | -6.16 | 167.86 | 0.4445 | -683.0 | -472.8 | |
| 0.00 | 0.59 | 0.00 | 0.34 | -34.30 | 41.03 | -7.45 | 167.97 | 0.5156 | -692.0 | -640.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
