SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.61 | 265.00 | 61.90 | 227.77 | 8.78 | 101.80 | 53.33 | 283.93 | 0.8175 | 143.5 | 149.6 | |
|
previous
or next observation for the same group /

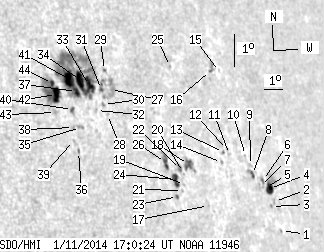

back to the solar disc SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 1.08 | 5.73 | 109.92 | 61.45 | 278.74 | 0.8862 | -6.0 | -45.4 | |
| 0.00 | 1.53 | 0.00 | 1.61 | 6.58 | 109.65 | 61.18 | 279.73 | 0.8850 | -359.0 | -287.1 | |
| 0.00 | 0.93 | 0.00 | 0.98 | 6.42 | 109.43 | 60.96 | 279.58 | 0.8831 | -556.0 | -541.1 | |
| 5.78 | 12.66 | 6.07 | 13.33 | 6.96 | 109.43 | 60.95 | 280.19 | 0.8837 | -461.8 | 39.0 | |
| 0.00 | 0.51 | 0.00 | 0.53 | 6.97 | 109.18 | 60.71 | 280.24 | 0.8817 | -531.0 | -534.5 | |
| 1.02 | 2.63 | 1.06 | 2.73 | 7.17 | 109.05 | 60.57 | 280.49 | 0.8809 | -526.8 | -427.6 | |
| 0.00 | 2.63 | 0.00 | 2.72 | 6.98 | 108.88 | 60.41 | 280.31 | 0.8793 | -509.0 | -420.9 | |
| 1.78 | 3.91 | 1.82 | 3.98 | 7.31 | 108.47 | 60.00 | 280.76 | 0.8764 | -560.2 | -524.7 | |
| 0.00 | 1.44 | 0.00 | 1.47 | 7.58 | 108.42 | 59.94 | 281.07 | 0.8762 | -312.0 | -244.7 | |
| 0.00 | 0.76 | 0.00 | 0.78 | 7.87 | 108.19 | 59.71 | 281.43 | 0.8747 | -309.0 | -260.8 | |
| 0.00 | 1.02 | 0.00 | 1.01 | 7.84 | 107.24 | 58.77 | 281.57 | 0.8667 | -385.0 | -268.9 | |
| 0.00 | 0.85 | 0.00 | 0.84 | 7.98 | 107.16 | 58.69 | 281.76 | 0.8662 | -403.0 | -328.1 | |
| 0.42 | 1.02 | 0.41 | 0.99 | 7.88 | 106.90 | 58.43 | 281.68 | 0.8639 | -522.6 | -479.1 | |
| 0.00 | 1.19 | 0.00 | 1.15 | 7.56 | 106.72 | 58.25 | 281.36 | 0.8618 | -456.0 | -404.6 | |
| 0.00 | 0.59 | 0.00 | 0.60 | 10.35 | 107.34 | 58.86 | 284.41 | 0.8714 | 268.0 | 196.1 | |
| 0.68 | 4.42 | 0.67 | 4.37 | 10.34 | 106.81 | 58.34 | 284.52 | 0.8670 | 686.0 | 276.3 | |
| 0.00 | 0.76 | 0.00 | 0.72 | 6.21 | 105.72 | 57.25 | 279.98 | 0.8511 | -325.0 | -383.3 | |
| 4.59 | 10.28 | 4.22 | 9.47 | 7.39 | 104.85 | 56.38 | 281.52 | 0.8449 | -568.5 | -380.0 | |
| 0.00 | 0.42 | 0.00 | 0.39 | 6.77 | 104.52 | 56.05 | 280.86 | 0.8409 | -455.0 | -356.8 | |
| 0.00 | 0.68 | 0.00 | 0.62 | 7.13 | 104.53 | 56.06 | 281.28 | 0.8416 | -503.0 | -517.0 | |
| 0.00 | 0.76 | 0.00 | 0.69 | 6.58 | 104.38 | 55.91 | 280.67 | 0.8393 | -414.0 | -339.0 | |
| 1.10 | 3.57 | 1.00 | 3.24 | 7.21 | 104.39 | 55.91 | 281.40 | 0.8404 | -583.4 | -424.3 | |
| 0.68 | 1.70 | 0.61 | 1.52 | 6.38 | 104.08 | 55.61 | 280.49 | 0.8362 | -530.0 | -452.2 | |
| 5.10 | 7.39 | 4.58 | 6.65 | 6.89 | 104.06 | 55.59 | 281.09 | 0.8368 | -728.9 | -561.4 | |
| 0.00 | 0.68 | 0.00 | 0.63 | 10.33 | 104.58 | 56.10 | 285.00 | 0.8476 | 364.0 | 333.4 | |
| 3.82 | 7.56 | 3.41 | 6.74 | 7.37 | 103.62 | 55.15 | 281.75 | 0.8335 | -641.1 | -483.5 | |
| 0.00 | 13.59 | 0.00 | 11.55 | 9.43 | 101.25 | 52.77 | 284.76 | 0.8145 | -111.0 | -144.1 | |
| 0.00 | 0.93 | 0.00 | 0.79 | 8.66 | 100.93 | 52.46 | 283.91 | 0.8098 | 332.0 | 291.2 | |
| 0.34 | 1.27 | 0.29 | 1.08 | 10.00 | 101.08 | 52.60 | 285.49 | 0.8141 | 217.2 | 162.7 | |
| 0.00 | 1.70 | 0.00 | 1.42 | 8.95 | 100.80 | 52.32 | 284.30 | 0.8091 | 461.0 | 378.5 | |
| 0.68 | 5.35 | 0.57 | 4.51 | 9.40 | 100.79 | 52.32 | 284.85 | 0.8100 | 398.0 | 267.8 | |
| 0.00 | 1.44 | 0.00 | 1.20 | 8.75 | 100.41 | 51.94 | 284.15 | 0.8048 | 342.0 | 251.1 | |
| 8.92 | 125.90 | 7.40 | 103.33 | 9.49 | 100.23 | 51.76 | 285.10 | 0.8046 | 531.8 | 293.6 | |
| 9.85 | -33.00 | 8.10 | -33.00 | 9.62 | 99.82 | 51.35 | 285.37 | 0.8008 | 693.7 | 999999 | |
| 0.00 | 2.97 | 0.00 | 2.41 | 8.18 | 99.53 | 51.06 | 283.68 | 0.7947 | 474.0 | 440.4 | |
| 0.00 | 1.53 | 0.00 | 1.23 | 7.45 | 99.31 | 50.84 | 282.82 | 0.7908 | -433.0 | -492.7 | |
| 3.91 | -33.00 | 3.19 | -33.00 | 9.27 | 99.55 | 51.08 | 285.01 | 0.7973 | 748.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.03 | 8.17 | 99.20 | 50.73 | 283.74 | 0.7912 | 586.0 | 460.7 | |
| 0.00 | 0.93 | 0.00 | 0.75 | 7.77 | 99.13 | 50.66 | 283.27 | 0.7896 | -321.0 | -320.9 | |
| 0.85 | 2.80 | 0.69 | 2.27 | 8.71 | 99.25 | 50.78 | 284.40 | 0.7929 | 621.8 | 506.4 | |
| 11.81 | -33.00 | 9.60 | -33.00 | 9.62 | 99.29 | 50.82 | 285.51 | 0.7955 | 937.0 | 999999 | |
| 8.58 | 32.03 | 6.85 | 25.47 | 9.13 | 98.58 | 50.11 | 285.10 | 0.7869 | 905.8 | 661.7 | |
| 0.00 | 2.38 | 0.00 | 1.89 | 8.57 | 98.43 | 49.96 | 284.45 | 0.7840 | 599.0 | 478.2 | |
| 1.70 | -42.00 | 1.36 | -42.00 | 9.45 | 98.46 | 49.98 | 285.54 | 0.7864 | 832.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
