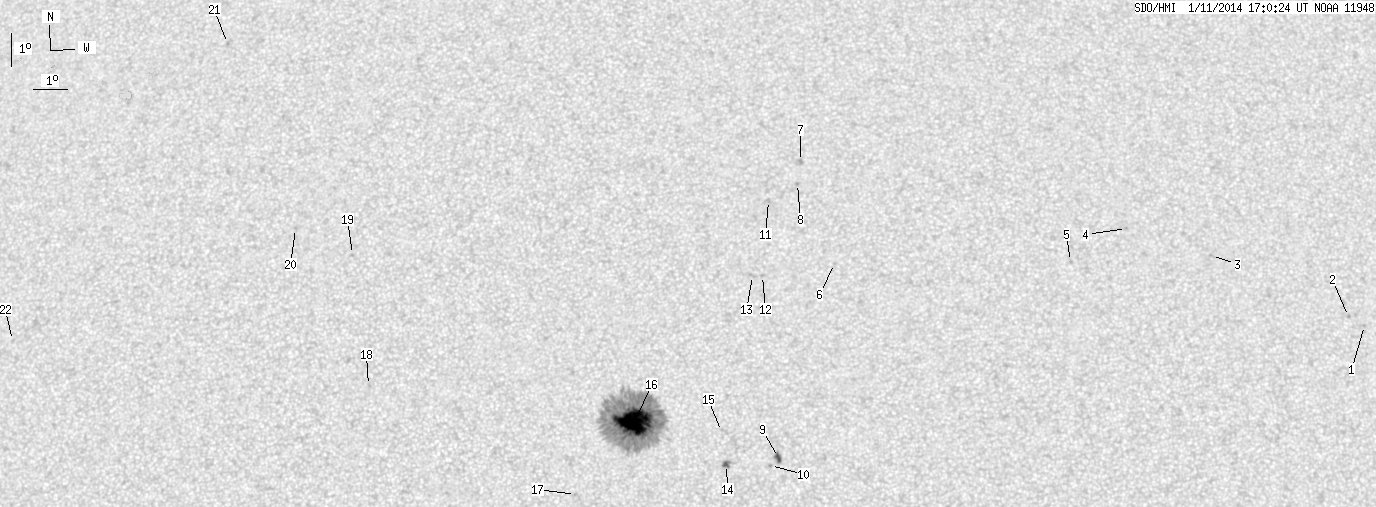

SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.14 | 326.60 | 30.26 | 164.81 | 5.73 | 45.39 | -3.09 | 14.17 | 0.1865 | -987.9 | -398.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.46 | 8.48 | 67.08 | 18.61 | 304.32 | 0.3838 | -836.0 | -729.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.74 | 66.59 | 18.12 | 305.60 | 0.3797 | -881.0 | -634.5 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 10.51 | 62.42 | 13.95 | 316.71 | 0.3471 | -807.0 | -666.0 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 11.29 | 59.84 | 11.37 | 323.94 | 0.3298 | -995.0 | -867.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 10.26 | 58.09 | 9.62 | 326.51 | 0.2993 | -874.0 | -673.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.15 | 50.98 | 2.51 | 350.14 | 0.2525 | -777.0 | -557.5 | |
| 0.00 | 2.12 | 0.00 | 1.10 | 13.28 | 49.98 | 1.51 | 355.12 | 0.3026 | -746.0 | -624.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 12.60 | 49.89 | 1.41 | 355.23 | 0.2911 | -1059.0 | -829.5 | |
| 2.63 | 5.10 | 1.32 | 2.55 | 4.32 | 49.28 | 0.81 | 354.54 | 0.1492 | -1117.6 | -844.2 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 4.08 | 49.05 | 0.58 | 356.02 | 0.1448 | -891.0 | -627.9 | |
| 0.00 | 2.46 | 0.00 | 1.27 | 12.08 | 49.01 | 0.54 | 358.13 | 0.2815 | -793.0 | -645.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.79 | 48.82 | 0.35 | 358.57 | 0.2427 | -810.0 | -663.8 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 9.79 | 48.52 | 0.05 | 359.79 | 0.2426 | -675.0 | -602.2 | |
| 1.44 | 4.76 | 0.72 | 2.38 | 4.11 | 47.75 | -0.72 | 4.99 | 0.1455 | 1205.6 | 888.9 | |
| 0.00 | 0.42 | 0.00 | 0.21 | 5.10 | 47.60 | -0.87 | 5.37 | 0.1628 | -308.0 | -399.4 | |
| 56.07 | 292.50 | 28.22 | 147.22 | 5.40 | 45.02 | -3.45 | 19.79 | 0.1778 | -1455.4 | -415.7 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 3.24 | 43.28 | -5.19 | 34.99 | 0.1582 | 862.0 | 593.9 | |
| 0.00 | 0.42 | 0.00 | 0.22 | 6.57 | 37.05 | -11.42 | 46.72 | 0.2714 | 725.0 | 559.0 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 10.54 | 36.45 | -12.03 | 39.04 | 0.3267 | 1006.0 | 729.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.36 | 34.66 | -13.82 | 41.36 | 0.3559 | 799.0 | 683.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 17.17 | 32.12 | -16.36 | 36.68 | 0.4524 | 795.0 | 642.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 8.18 | 25.91 | -22.57 | 61.22 | 0.4352 | -721.0 | -507.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
