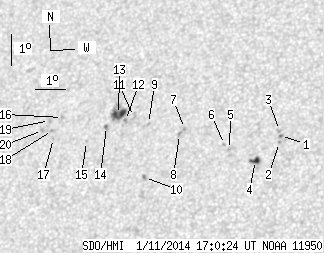

SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.23 | 49.42 | 7.06 | 28.64 | 16.70 | 25.20 | -23.27 | 47.01 | 0.5183 | 163.5 | 135.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 1.44 | 0.19 | 0.81 | 16.37 | 29.74 | -18.74 | 41.57 | 0.4664 | -804.5 | -698.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 16.15 | 29.73 | -18.75 | 41.92 | 0.4640 | -821.0 | -754.4 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 16.53 | 29.69 | -18.78 | 41.41 | 0.4687 | -716.0 | -494.4 | |
| 3.23 | 5.18 | 1.80 | 2.90 | 15.61 | 29.00 | -19.47 | 43.82 | 0.4657 | -997.7 | -820.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 15.98 | 28.12 | -20.36 | 44.50 | 0.4791 | -719.0 | -674.9 | |
| 0.00 | 0.93 | 0.00 | 0.53 | 16.14 | 27.93 | -20.54 | 44.51 | 0.4828 | -582.0 | -526.6 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 16.68 | 26.55 | -21.92 | 45.52 | 0.5032 | -822.0 | -634.6 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 16.50 | 26.41 | -22.06 | 45.98 | 0.5029 | -828.0 | -681.1 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 16.88 | 25.33 | -23.14 | 46.76 | 0.5184 | 790.0 | 643.9 | |
| 0.00 | 1.95 | 0.00 | 1.12 | 15.18 | 25.40 | -23.07 | 49.24 | 0.5013 | -874.0 | -649.5 | |
| 0.00 | 2.80 | 0.00 | 1.63 | 17.11 | 24.79 | -23.68 | 47.05 | 0.5266 | 702.0 | 657.1 | |
| 0.00 | 1.78 | 0.00 | 1.04 | 16.99 | 24.54 | -23.93 | 47.52 | 0.5282 | 908.0 | 771.4 | |
| 8.24 | 16.91 | 4.82 | 9.89 | 17.19 | 24.27 | -24.20 | 47.53 | 0.5330 | 908.4 | 381.6 | |
| 0.42 | 2.21 | 0.25 | 1.29 | 16.83 | 23.92 | -24.55 | 48.47 | 0.5334 | 852.2 | 687.5 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 16.37 | 23.30 | -25.17 | 49.82 | 0.5362 | 716.0 | 569.0 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 17.16 | 22.37 | -26.10 | 49.67 | 0.5537 | 804.0 | 595.4 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 16.51 | 22.16 | -26.32 | 50.84 | 0.5503 | 795.0 | 667.6 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 16.76 | 22.08 | -26.39 | 50.55 | 0.5533 | 812.0 | 701.1 | |
| 0.00 | 1.95 | 0.00 | 1.16 | 17.08 | 21.93 | -26.54 | 50.24 | 0.5578 | 578.0 | 468.9 | |
| 0.00 | 2.04 | 0.00 | 1.21 | 16.77 | 21.74 | -26.74 | 50.88 | 0.5574 | 663.0 | 476.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
