SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.20 | 23.01 | 3.33 | 12.39 | -17.60 | 29.47 | -19.01 | 127.21 | 0.3916 | 461.5 | 549.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

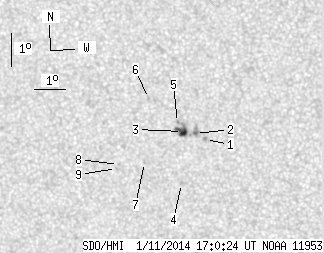

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.77 | -17.66 | 30.31 | -18.16 | 128.52 | 0.3813 | 979.0 | 860.7 | |
| 0.42 | 5.78 | 0.23 | 3.10 | -17.47 | 30.01 | -18.47 | 127.68 | 0.3834 | 1093.4 | 850.0 | |
| 5.78 | 10.11 | 3.10 | 5.43 | -17.40 | 29.59 | -18.88 | 126.95 | 0.3882 | 903.0 | 735.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.98 | 29.38 | -19.10 | 129.94 | 0.4053 | 797.0 | 525.9 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -17.12 | 29.46 | -19.02 | 126.17 | 0.3875 | 779.0 | 668.3 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -16.38 | 28.59 | -19.88 | 123.42 | 0.3927 | 792.0 | 703.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -18.31 | 28.23 | -20.24 | 127.09 | 0.4135 | -722.0 | -562.0 | |
| 0.00 | 0.59 | 0.00 | 0.33 | -18.35 | 27.37 | -21.11 | 126.10 | 0.4249 | -877.0 | -691.9 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -18.47 | 27.28 | -21.19 | 126.24 | 0.4269 | -663.0 | -573.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
