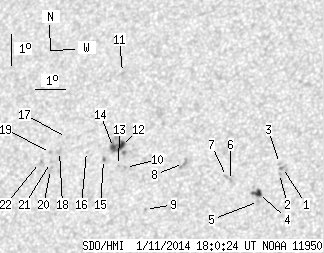

SDO HMI 2014-01-11 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.66 | 50.33 | 4.97 | 29.03 | 16.75 | 25.33 | -22.59 | 46.08 | 0.5113 | 106.5 | 87.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.09 | 16.38 | 29.80 | -18.12 | 40.62 | 0.4603 | -1018.0 | -744.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 16.19 | 29.72 | -18.20 | 41.02 | 0.4589 | -856.0 | -719.7 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 16.51 | 29.69 | -18.23 | 40.60 | 0.4628 | -692.0 | -497.2 | |
| 2.46 | 5.35 | 1.37 | 2.98 | 15.58 | 29.10 | -18.82 | 42.89 | 0.4585 | -1085.2 | -838.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 15.33 | 29.12 | -18.80 | 43.24 | 0.4555 | -970.0 | -768.3 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 16.02 | 28.15 | -19.77 | 43.61 | 0.4733 | -935.0 | -749.6 | |
| 0.00 | 1.61 | 0.00 | 0.91 | 16.14 | 28.01 | -19.91 | 43.62 | 0.4762 | -671.0 | -510.6 | |
| 0.00 | 4.33 | 0.00 | 2.47 | 16.59 | 26.54 | -21.38 | 44.94 | 0.4966 | -804.0 | -656.3 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 15.19 | 25.45 | -22.47 | 48.50 | 0.4946 | -767.0 | -667.6 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 16.53 | 24.62 | -23.30 | 47.45 | 0.5168 | 788.0 | 600.1 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 19.57 | 24.09 | -23.83 | 43.80 | 0.5522 | 608.0 | 555.0 | |
| 3.65 | 17.92 | 2.12 | 10.44 | 17.23 | 24.40 | -23.52 | 46.69 | 0.5260 | 937.5 | 512.3 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 16.60 | 24.38 | -23.54 | 47.64 | 0.5202 | 749.0 | 590.8 | |
| 2.55 | -12.00 | 1.48 | -12.00 | 17.17 | 24.13 | -23.79 | 47.08 | 0.5284 | 853.0 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.94 | 16.80 | 23.85 | -24.07 | 47.95 | 0.5280 | 838.0 | 724.3 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 17.08 | 23.23 | -24.69 | 48.25 | 0.5373 | 685.0 | 538.3 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 17.54 | 22.48 | -25.44 | 48.41 | 0.5498 | 484.0 | 402.0 | |
| 0.00 | 2.97 | 0.00 | 1.76 | 17.11 | 22.31 | -25.61 | 49.22 | 0.5478 | 792.0 | 610.7 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 17.09 | 22.00 | -25.92 | 49.58 | 0.5510 | 594.0 | 494.1 | |
| 0.00 | 2.46 | 0.00 | 1.45 | 16.55 | 22.08 | -25.84 | 50.28 | 0.5453 | 837.0 | 720.0 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 16.77 | 22.05 | -25.87 | 49.99 | 0.5477 | 741.0 | 626.7 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 16.78 | 21.67 | -26.25 | 50.37 | 0.5520 | 386.0 | 398.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
