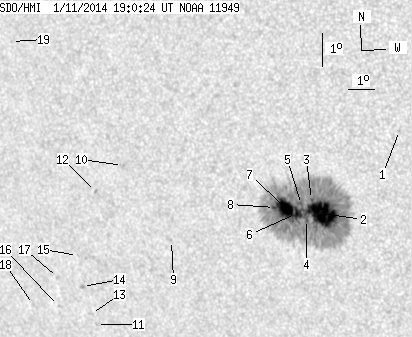

SDO HMI 2014-01-11 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.74 | 478.32 | 42.20 | 290.79 | -16.33 | 13.54 | -33.83 | 112.60 | 0.5806 | 839.4 | 325.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.49 | -14.00 | 17.46 | -29.91 | 110.37 | 0.5182 | 699.0 | 598.6 | |
| 43.07 | 464.75 | 25.94 | 281.52 | -16.37 | 14.26 | -33.11 | 112.99 | 0.5715 | 1307.2 | 355.7 | |
| 0.85 | -2.00 | 0.51 | -2.00 | -15.94 | 13.97 | -33.39 | 112.12 | 0.5735 | 994.6 | 999999 | |
| 1.53 | -2.00 | 0.93 | -2.00 | -16.53 | 13.67 | -33.69 | 112.97 | 0.5799 | 687.4 | 999999 | |
| 1.78 | -2.00 | 1.08 | -2.00 | -16.07 | 13.58 | -33.79 | 112.17 | 0.5793 | 674.6 | 999999 | |
| 3.74 | -2.00 | 2.27 | -2.00 | -16.34 | 13.34 | -34.02 | 112.49 | 0.5834 | 1188.9 | 999999 | |
| 17.07 | -2.00 | 10.43 | -2.00 | -16.17 | 12.97 | -34.40 | 112.05 | 0.5877 | 1166.1 | 999999 | |
| 1.70 | -2.00 | 1.04 | -2.00 | -16.12 | 12.57 | -34.80 | 111.80 | 0.5928 | 595.6 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -16.94 | 8.41 | -38.96 | 111.44 | 0.6485 | -656.0 | -530.5 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -14.61 | 7.01 | -40.36 | 107.50 | 0.6594 | -687.0 | -621.6 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -19.33 | 4.64 | -42.73 | 113.58 | 0.7010 | -612.0 | -585.1 | |
| 0.00 | 1.44 | 0.00 | 0.97 | -15.33 | 5.74 | -41.62 | 108.23 | 0.6768 | -757.0 | -649.8 | |
| 0.00 | 2.04 | 0.00 | 1.41 | -18.99 | 4.54 | -42.83 | 113.07 | 0.7011 | -552.0 | -442.2 | |
| 0.00 | 1.78 | 0.00 | 1.23 | -18.16 | 4.42 | -42.95 | 111.87 | 0.7000 | -723.0 | -586.0 | |
| 0.00 | 0.42 | 0.00 | 0.29 | -17.21 | 4.49 | -42.88 | 110.57 | 0.6966 | -620.0 | -569.2 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -18.68 | 3.22 | -44.15 | 112.23 | 0.7152 | -598.0 | -548.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -17.83 | 3.45 | -43.92 | 111.14 | 0.7103 | -466.0 | -443.4 | |
| 0.00 | 1.44 | 0.00 | 1.04 | -18.59 | 2.15 | -45.22 | 111.81 | 0.7270 | -363.0 | -345.3 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -10.71 | 3.26 | -44.10 | 101.06 | 0.6991 | -435.0 | -374.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
