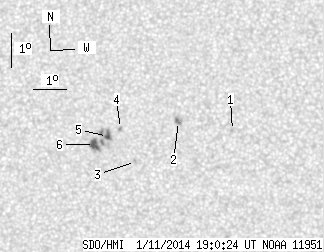

SDO HMI 2014-01-11 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.88 | 29.97 | 3.45 | 15.05 | -13.11 | 44.34 | -3.03 | 161.89 | 0.1649 | -246.7 | -439.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.55 | -12.84 | 47.90 | 0.54 | 183.48 | 0.1513 | 945.0 | 587.7 | |
| 0.00 | 3.14 | 0.00 | 1.57 | -12.57 | 46.27 | -1.09 | 172.71 | 0.1475 | 1085.0 | 983.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.76 | 44.96 | -2.41 | 166.22 | 0.1719 | 1019.0 | 765.2 | |
| 0.00 | 1.78 | 0.00 | 0.89 | -12.77 | 44.52 | -2.85 | 162.01 | 0.1576 | -1033.0 | -791.5 | |
| 2.04 | 22.51 | 1.02 | 11.31 | -13.01 | 44.12 | -3.24 | 160.22 | 0.1637 | -1224.5 | -868.3 | |
| 4.84 | -5.00 | 2.43 | -5.00 | -13.25 | 43.72 | -3.64 | 158.56 | 0.1699 | -1071.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
