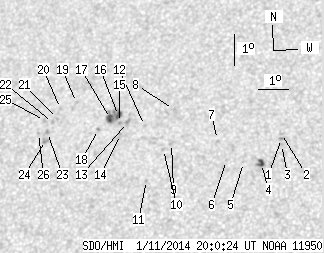

SDO HMI 2014-01-11 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.15 | 49.82 | 4.64 | 28.57 | 16.75 | 25.08 | -21.73 | 44.96 | 0.5023 | 202.2 | 256.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | 16.37 | 29.82 | -16.99 | 38.83 | 0.4491 | -964.0 | -771.8 | |
| 0.00 | 2.29 | 0.00 | 1.27 | 16.53 | 29.81 | -17.01 | 38.62 | 0.4511 | -748.0 | -503.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.19 | 29.84 | -16.98 | 39.08 | 0.4467 | -841.0 | -625.3 | |
| 2.38 | 4.59 | 1.31 | 2.54 | 15.60 | 29.25 | -17.57 | 40.90 | 0.4458 | -1040.8 | -821.6 | |
| 0.00 | 0.25 | 0.00 | 0.14 | 15.65 | 28.66 | -18.15 | 41.75 | 0.4524 | -387.0 | -251.0 | |
| 0.00 | 0.93 | 0.00 | 0.52 | 15.73 | 28.11 | -18.71 | 42.48 | 0.4590 | -683.0 | -525.0 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 16.39 | 27.75 | -19.06 | 42.00 | 0.4702 | -401.0 | -511.5 | |
| 0.00 | 0.76 | 0.00 | 0.44 | 17.38 | 26.20 | -20.61 | 42.75 | 0.4970 | 457.0 | 348.7 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 16.31 | 26.26 | -20.56 | 44.25 | 0.4850 | -602.0 | -544.5 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 16.13 | 26.01 | -20.80 | 44.86 | 0.4857 | -658.0 | -525.4 | |
| 0.00 | 1.10 | 0.00 | 0.62 | 15.17 | 25.56 | -21.26 | 46.95 | 0.4808 | -768.0 | -659.1 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 16.90 | 25.30 | -21.52 | 44.65 | 0.5014 | 891.0 | 668.6 | |
| 0.00 | 2.89 | 0.00 | 1.66 | 17.02 | 24.72 | -22.09 | 45.23 | 0.5087 | 984.0 | 736.8 | |
| 0.00 | 0.76 | 0.00 | 0.44 | 16.64 | 24.53 | -22.28 | 46.02 | 0.5069 | 719.0 | 672.3 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 17.02 | 24.45 | -22.36 | 45.56 | 0.5116 | 870.0 | 802.5 | |
| 2.46 | 16.31 | 1.42 | 9.42 | 17.25 | 24.39 | -22.42 | 45.31 | 0.5145 | 947.4 | 601.3 | |
| 3.31 | -16.00 | 1.91 | -16.00 | 17.16 | 24.13 | -22.68 | 45.75 | 0.5164 | 852.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 16.82 | 23.78 | -23.04 | 46.68 | 0.5169 | 872.0 | 778.8 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 17.71 | 22.92 | -23.90 | 46.43 | 0.5348 | 562.0 | 445.0 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 17.53 | 22.40 | -24.42 | 47.27 | 0.5387 | 501.0 | 390.0 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 17.22 | 22.34 | -24.47 | 47.79 | 0.5364 | 796.0 | 637.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 17.10 | 22.19 | -24.63 | 48.14 | 0.5369 | 650.0 | 574.4 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 16.78 | 22.06 | -24.75 | 48.74 | 0.5354 | 806.0 | 746.0 | |
| 0.00 | 2.97 | 0.00 | 1.74 | 16.53 | 22.03 | -24.79 | 49.14 | 0.5335 | 795.0 | 720.5 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 17.17 | 21.91 | -24.91 | 48.35 | 0.5407 | 578.0 | 513.6 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 16.76 | 21.76 | -25.06 | 49.10 | 0.5386 | 550.0 | 433.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
