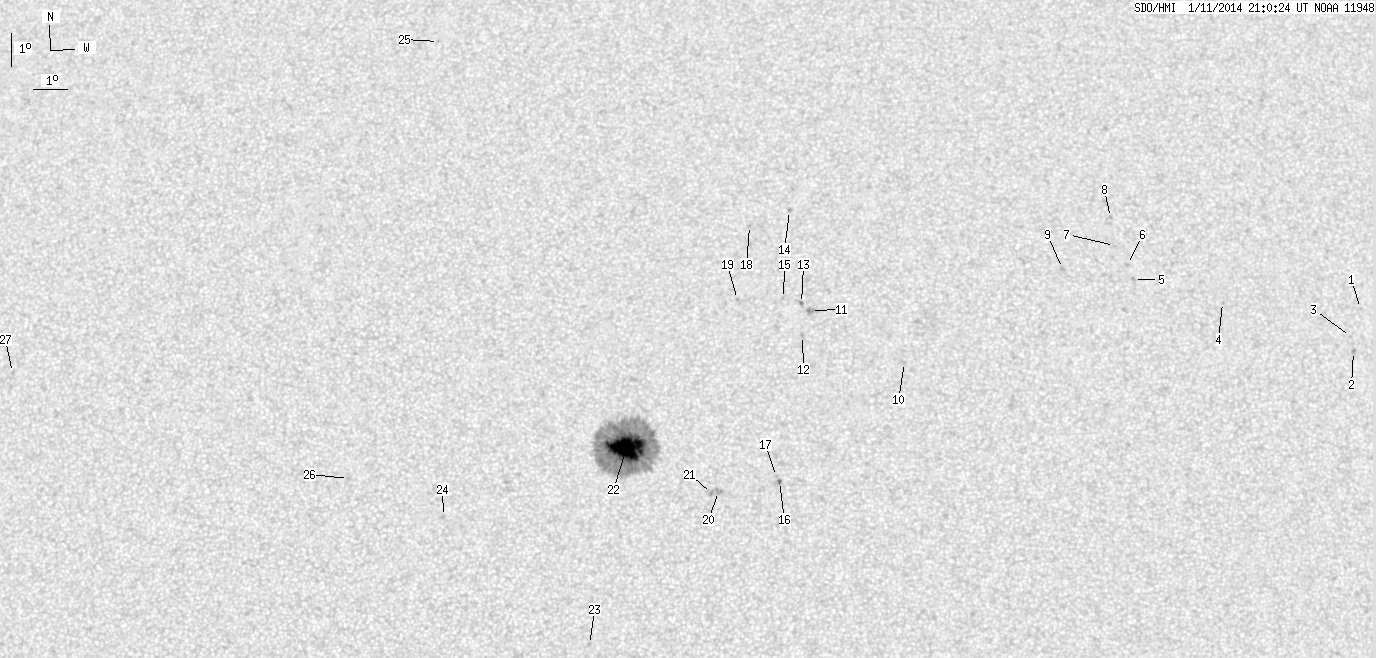

SDO HMI 2014-01-11 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.93 | 320.14 | 24.58 | 161.46 | 5.75 | 45.89 | -0.37 | 358.10 | 0.1821 | -965.8 | -438.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.51 | 9.85 | 67.50 | 21.23 | 303.70 | 0.4308 | -740.0 | -609.3 | |
| 0.00 | 1.78 | 0.00 | 0.97 | 8.54 | 67.19 | 20.93 | 301.43 | 0.4158 | -947.0 | -794.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 8.99 | 67.12 | 20.86 | 302.45 | 0.4185 | -808.0 | -622.0 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 9.93 | 63.13 | 16.87 | 310.15 | 0.3756 | -682.0 | -556.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 10.58 | 60.40 | 14.14 | 316.51 | 0.3503 | -815.0 | -740.6 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 11.03 | 60.23 | 13.97 | 317.73 | 0.3539 | -811.0 | -618.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 11.61 | 59.86 | 13.60 | 319.59 | 0.3569 | -741.0 | -620.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 12.47 | 59.78 | 13.52 | 321.30 | 0.3667 | -692.0 | -522.8 | |
| 0.00 | 1.87 | 0.00 | 0.98 | 10.88 | 58.22 | 11.96 | 321.81 | 0.3307 | -885.0 | -715.5 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 7.97 | 53.35 | 7.09 | 329.86 | 0.2445 | -759.0 | -645.5 | |
| 0.00 | 4.25 | 0.00 | 2.17 | 9.53 | 50.56 | 4.30 | 342.70 | 0.2496 | -1007.0 | -904.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 8.77 | 50.31 | 4.05 | 342.73 | 0.2361 | -926.0 | -749.1 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 9.74 | 50.29 | 4.03 | 343.95 | 0.2518 | -1028.0 | -877.3 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 12.58 | 49.97 | 3.71 | 347.66 | 0.2969 | -968.0 | -723.0 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 9.89 | 49.76 | 3.49 | 346.15 | 0.2519 | -843.0 | -663.8 | |
| 0.76 | 1.78 | 0.38 | 0.90 | 4.39 | 49.59 | 3.33 | 338.82 | 0.1609 | -1101.0 | -944.4 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 4.54 | 49.50 | 3.24 | 339.66 | 0.1628 | -836.0 | -713.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 12.12 | 48.76 | 2.50 | 351.38 | 0.2855 | -813.0 | -630.3 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 9.86 | 48.38 | 2.12 | 351.48 | 0.2468 | -847.0 | -651.8 | |
| 0.00 | 3.82 | 0.00 | 1.91 | 4.09 | 47.78 | 1.52 | 349.59 | 0.1473 | 821.0 | 859.4 | |
| 0.00 | 2.12 | 0.00 | 1.06 | 4.03 | 47.58 | 1.31 | 350.92 | 0.1457 | 1081.0 | 835.6 | |
| 48.17 | 278.21 | 24.20 | 139.79 | 5.40 | 45.07 | -1.20 | 7.10 | 0.1690 | -1505.3 | -464.3 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -0.44 | 43.97 | -2.29 | 31.32 | 0.0772 | 830.0 | 572.7 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 3.38 | 39.65 | -6.61 | 41.14 | 0.1755 | 904.0 | 724.8 | |
| 0.00 | 0.42 | 0.00 | 0.23 | 17.90 | 39.18 | -7.08 | 17.32 | 0.3955 | 694.0 | 552.2 | |
| 0.00 | 2.12 | 0.00 | 1.08 | 4.54 | 36.81 | -9.46 | 47.29 | 0.2239 | 719.0 | 615.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 7.93 | 26.40 | -19.87 | 58.54 | 0.3963 | -800.0 | -545.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
