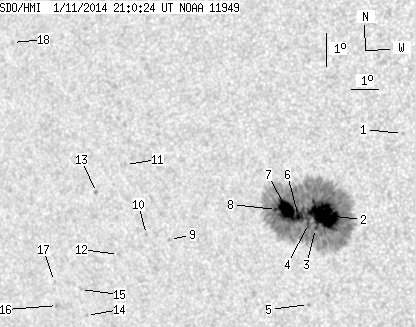

SDO HMI 2014-01-11 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.11 | 481.97 | 40.15 | 289.22 | -16.34 | 13.58 | -32.68 | 113.17 | 0.5655 | 873.4 | 349.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.53 | -14.05 | 17.43 | -28.83 | 111.02 | 0.5032 | 735.0 | 607.3 | |
| 42.56 | 468.24 | 25.33 | 280.20 | -16.40 | 14.28 | -31.98 | 113.59 | 0.5566 | 1338.0 | 374.4 | |
| 0.76 | -2.00 | 0.46 | -2.00 | -16.78 | 13.88 | -32.38 | 114.03 | 0.5636 | 671.3 | 999999 | |
| 0.68 | -2.00 | 0.41 | -2.00 | -16.62 | 13.66 | -32.60 | 113.64 | 0.5658 | 555.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -19.07 | 13.14 | -33.12 | 117.40 | 0.5839 | 689.0 | 552.0 | |
| 2.04 | -2.00 | 1.23 | -2.00 | -16.40 | 13.34 | -32.93 | 113.10 | 0.5691 | 1240.1 | 999999 | |
| 20.05 | -2.00 | 12.10 | -2.00 | -16.17 | 12.94 | -33.32 | 112.52 | 0.5734 | 1178.4 | 999999 | |
| 1.02 | -2.00 | 0.62 | -2.00 | -16.15 | 12.57 | -33.69 | 112.33 | 0.5782 | 604.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -16.88 | 8.35 | -37.91 | 111.72 | 0.6353 | -667.0 | -593.6 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -16.69 | 7.49 | -38.77 | 111.11 | 0.6454 | -602.0 | -500.5 | |
| 0.00 | 1.78 | 0.00 | 1.15 | -14.56 | 7.15 | -39.12 | 107.76 | 0.6435 | -672.0 | -469.2 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -17.24 | 6.23 | -40.03 | 111.49 | 0.6626 | -620.0 | -456.2 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -15.34 | 5.82 | -40.45 | 108.56 | 0.6623 | -553.0 | -617.6 | |
| 0.00 | 0.93 | 0.00 | 0.64 | -19.02 | 4.40 | -41.86 | 113.42 | 0.6899 | -660.0 | -559.9 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -18.22 | 4.39 | -41.87 | 112.29 | 0.6876 | -734.0 | -629.7 | |
| 0.00 | 2.21 | 0.00 | 1.53 | -18.66 | 3.29 | -42.98 | 112.55 | 0.7017 | -336.0 | -284.8 | |
| 0.00 | 0.59 | 0.00 | 0.41 | -17.93 | 3.38 | -42.88 | 111.56 | 0.6985 | -646.0 | -617.7 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -10.72 | 3.36 | -42.90 | 101.23 | 0.6842 | -450.0 | -316.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
