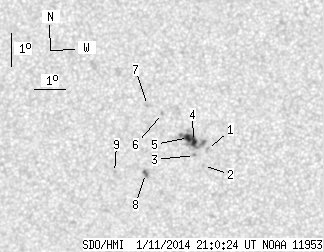

SDO HMI 2014-01-11 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.11 | 35.17 | 5.36 | 18.66 | -17.54 | 29.71 | -16.55 | 130.68 | 0.3598 | 667.9 | 490.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.08 | -17.73 | 30.46 | -15.80 | 132.35 | 0.3526 | 890.0 | 666.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.22 | 30.28 | -15.98 | 133.10 | 0.3597 | 799.0 | 647.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.91 | 30.02 | -16.24 | 132.00 | 0.3597 | 739.0 | 587.1 | |
| 4.25 | 24.55 | 2.25 | 13.00 | -17.48 | 30.03 | -16.23 | 131.07 | 0.3552 | 1124.4 | 640.8 | |
| 4.50 | -4.00 | 2.38 | -4.00 | -17.36 | 29.88 | -16.38 | 130.55 | 0.3558 | 1055.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -16.61 | 29.11 | -17.15 | 127.65 | 0.3584 | 979.0 | 814.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -16.36 | 28.65 | -17.61 | 126.38 | 0.3621 | 757.0 | 635.2 | |
| 1.36 | 2.89 | 0.73 | 1.55 | -18.42 | 28.38 | -17.88 | 130.50 | 0.3848 | -1115.2 | -919.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -18.36 | 27.37 | -18.89 | 128.94 | 0.3968 | -804.0 | -650.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
