SDO HMI 2014-01-11 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 361.60 | 1996.45 | 310.14 | 1698.00 | -9.83 | 100.08 | 54.37 | 260.76 | 0.8106 | 426.5 | 165.4 | |
|
previous
or next observation for the same group /

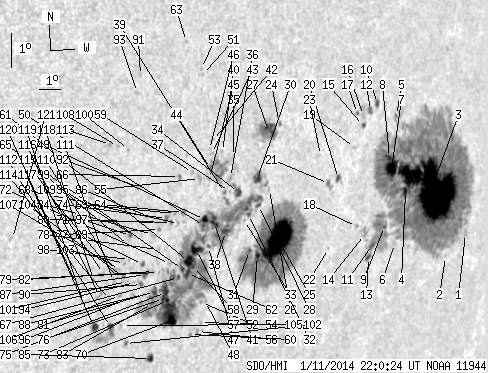

back to the solar disc SDO HMI 2014-01-11 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.14 | 0.00 | 3.23 | -10.05 | 107.15 | 61.44 | 260.85 | 0.8780 | -298.0 | -264.0 | |
| 0.00 | 1.02 | 0.00 | 1.02 | -10.80 | 106.15 | 60.44 | 259.96 | 0.8698 | -109.0 | -111.5 | |
| 156.48 | 969.23 | 149.57 | 916.26 | -8.86 | 104.74 | 59.03 | 262.19 | 0.8572 | 844.8 | 242.7 | |
| 2.97 | -3.00 | 2.73 | -3.00 | -9.03 | 103.30 | 57.58 | 261.97 | 0.8441 | 842.8 | 999999 | |
| 0.85 | 8.24 | 0.76 | 7.40 | -6.83 | 102.33 | 56.62 | 264.59 | 0.8350 | 655.4 | 361.8 | |
| 0.00 | 1.70 | 0.00 | 1.55 | -10.60 | 103.10 | 57.39 | 260.10 | 0.8427 | 171.0 | 218.2 | |
| 13.68 | -3.00 | 12.26 | -3.00 | -8.40 | 102.37 | 56.66 | 262.71 | 0.8354 | 1075.6 | 999999 | |
| 3.40 | -3.00 | 3.03 | -3.00 | -8.09 | 102.19 | 56.48 | 263.08 | 0.8337 | 924.6 | 999999 | |
| 1.36 | -3.00 | 1.22 | -3.00 | -10.13 | 102.42 | 56.70 | 260.64 | 0.8361 | 811.8 | 999999 | |
| 2.29 | 3.65 | 2.00 | 3.18 | -6.54 | 101.26 | 55.55 | 264.96 | 0.8246 | 547.3 | 346.5 | |
| 3.57 | -3.00 | 3.16 | -3.00 | -10.70 | 101.92 | 56.21 | 259.94 | 0.8316 | 319.0 | 999999 | |
| 2.38 | 6.20 | 2.05 | 5.33 | -6.77 | 100.93 | 55.22 | 264.68 | 0.8213 | 690.0 | 579.7 | |
| 1.95 | -3.00 | 1.73 | -3.00 | -11.09 | 101.81 | 56.10 | 259.45 | 0.8307 | -491.1 | 999999 | |
| 0.00 | 5.35 | 0.00 | 4.69 | -10.43 | 101.41 | 55.70 | 260.24 | 0.8266 | 155.0 | 171.2 | |
| 1.19 | 2.04 | 1.02 | 1.75 | -7.23 | 100.64 | 54.93 | 264.12 | 0.8185 | 619.2 | 508.5 | |
| 0.00 | 1.87 | 0.00 | 1.60 | -6.94 | 100.59 | 54.88 | 264.48 | 0.8180 | 507.0 | 510.5 | |
| 0.85 | 1.53 | 0.72 | 1.30 | -6.90 | 100.27 | 54.56 | 264.53 | 0.8148 | -94.4 | 21.8 | |
| 0.00 | 1.78 | 0.00 | 1.54 | -10.22 | 100.93 | 55.22 | 260.47 | 0.8218 | 699.0 | 598.0 | |
| 0.00 | 1.36 | 0.00 | 1.16 | -7.90 | 100.30 | 54.59 | 263.29 | 0.8151 | 433.0 | 358.6 | |
| 2.04 | 3.99 | 1.71 | 3.35 | -8.86 | 99.68 | 53.96 | 262.10 | 0.8089 | 605.8 | 474.3 | |
| 1.27 | 4.76 | 1.06 | 3.95 | -9.04 | 99.21 | 53.49 | 261.87 | 0.8042 | 706.9 | 608.2 | |
| 0.00 | 0.93 | 0.00 | 0.78 | -10.95 | 99.66 | 53.95 | 259.51 | 0.8096 | 367.0 | 313.7 | |
| 0.00 | 0.76 | 0.00 | 0.63 | -8.24 | 98.64 | 52.93 | 262.85 | 0.7982 | 614.0 | 573.8 | |
| 0.68 | 1.95 | 0.53 | 1.53 | -7.41 | 96.51 | 50.80 | 263.87 | 0.7752 | 541.4 | 477.8 | |
| 58.45 | 334.55 | 46.34 | 264.83 | -10.82 | 97.14 | 51.43 | 259.51 | 0.7833 | 1016.9 | 269.1 | |
| 0.00 | 0.85 | 0.00 | 0.66 | -9.37 | 96.39 | 50.68 | 261.32 | 0.7744 | 610.0 | 531.7 | |
| 15.80 | 34.83 | 12.21 | 26.86 | -7.64 | 96.03 | 50.32 | 263.56 | 0.7700 | 738.1 | 408.2 | |
| 1.27 | 424.17 | 0.98 | 313.24 | -9.87 | 95.97 | 50.26 | 260.65 | 0.7701 | 609.9 | 28.0 | |
| 2.38 | -25.00 | 1.85 | -25.00 | -11.35 | 96.26 | 50.55 | 258.76 | 0.7742 | 978.3 | 999999 | |
| 6.20 | 16.57 | 4.77 | 12.78 | -9.05 | 95.76 | 50.05 | 261.71 | 0.7674 | -663.0 | 42.2 | |
| 0.93 | -25.00 | 0.72 | -25.00 | -11.22 | 95.85 | 50.14 | 258.89 | 0.7696 | 934.7 | 999999 | |
| 1.10 | -28.00 | 0.85 | -28.00 | -10.16 | 95.57 | 49.86 | 260.25 | 0.7658 | 765.9 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.58 | -10.35 | 95.42 | 49.71 | 259.99 | 0.7643 | 785.0 | 713.2 | |
| 3.91 | 9.17 | 2.96 | 6.94 | -9.54 | 94.98 | 49.27 | 261.03 | 0.7589 | -565.0 | -423.0 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -8.49 | 94.56 | 48.85 | 262.39 | 0.7536 | -227.0 | -201.8 | |
| 0.00 | 3.23 | 0.00 | 2.42 | -9.12 | 94.53 | 48.82 | 261.56 | 0.7536 | -198.0 | -203.4 | |
| 0.00 | 0.76 | 0.00 | 0.57 | -9.53 | 94.56 | 48.85 | 261.01 | 0.7542 | -416.0 | -467.0 | |
| 4.59 | -28.00 | 3.46 | -28.00 | -10.72 | 94.62 | 48.91 | 259.44 | 0.7556 | 580.7 | 999999 | |
| 0.59 | 1.70 | 0.44 | 1.27 | -9.58 | 94.34 | 48.63 | 260.94 | 0.7517 | -771.6 | -676.7 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -8.37 | 94.04 | 48.33 | 262.53 | 0.7477 | 149.0 | 143.6 | |
| 6.29 | -28.00 | 4.68 | -28.00 | -10.48 | 94.07 | 48.36 | 259.71 | 0.7492 | -754.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -8.07 | 93.54 | 47.83 | 262.92 | 0.7418 | -518.0 | -439.9 | |
| 0.00 | 1.70 | 0.00 | 1.25 | -8.46 | 93.56 | 47.85 | 262.40 | 0.7422 | -549.0 | -410.0 | |
| 1.70 | 25.91 | 1.25 | 19.22 | -8.90 | 93.59 | 47.88 | 261.80 | 0.7427 | -704.0 | -276.4 | |
| 0.00 | 1.44 | 0.00 | 1.06 | -9.20 | 93.60 | 47.89 | 261.40 | 0.7430 | -797.0 | -663.8 | |
| 0.00 | 0.76 | 0.00 | 0.56 | -8.35 | 93.45 | 47.74 | 262.54 | 0.7409 | -573.0 | -506.9 | |
| 0.68 | -28.00 | 0.51 | -28.00 | -11.21 | 93.95 | 48.24 | 258.73 | 0.7485 | -574.8 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.83 | -12.84 | 94.21 | 48.49 | 256.59 | 0.7530 | 582.0 | 526.2 | |
| 3.40 | -28.00 | 2.51 | -28.00 | -10.42 | 93.60 | 47.89 | 259.76 | 0.7438 | 663.8 | 999999 | |
| 0.85 | -28.00 | 0.63 | -28.00 | -10.60 | 93.60 | 47.89 | 259.51 | 0.7439 | 577.0 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -6.15 | 92.84 | 47.13 | 265.51 | 0.7333 | -440.0 | -380.8 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -12.88 | 94.03 | 48.32 | 256.51 | 0.7511 | 669.0 | 522.1 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -5.98 | 92.78 | 47.07 | 265.75 | 0.7325 | -539.0 | -444.9 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -13.47 | 94.14 | 48.43 | 255.74 | 0.7531 | 763.0 | 605.1 | |
| 0.00 | 4.08 | 0.00 | 2.98 | -9.22 | 93.15 | 47.44 | 261.34 | 0.7378 | -692.0 | -554.2 | |
| 0.00 | 2.38 | 0.00 | 1.78 | -13.75 | 94.08 | 48.37 | 255.37 | 0.7527 | 683.0 | 587.9 | |
| 9.17 | -28.00 | 6.76 | -28.00 | -11.32 | 93.44 | 47.73 | 258.52 | 0.7427 | -737.9 | 999999 | |
| 1.36 | -28.00 | 1.00 | -28.00 | -11.83 | 93.42 | 47.70 | 257.83 | 0.7430 | -323.2 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.80 | -9.06 | 92.82 | 47.11 | 261.54 | 0.7338 | -666.0 | -580.5 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -13.85 | 93.79 | 48.08 | 255.18 | 0.7496 | 743.0 | 671.0 | |
| 7.56 | -28.00 | 5.55 | -28.00 | -11.70 | 93.16 | 47.45 | 257.99 | 0.7399 | -879.0 | 999999 | |
| 3.40 | -28.00 | 2.50 | -28.00 | -12.05 | 93.20 | 47.49 | 257.51 | 0.7407 | -529.0 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -5.22 | 92.05 | 46.34 | 266.81 | 0.7239 | -598.0 | -514.6 | |
| 0.42 | 3.23 | 0.31 | 2.34 | -10.26 | 92.64 | 46.93 | 259.88 | 0.7325 | -550.2 | -275.1 | |
| 1.53 | -28.00 | 1.12 | -28.00 | -11.95 | 92.95 | 47.24 | 257.62 | 0.7377 | -729.0 | 999999 | |
| 0.51 | 2.21 | 0.37 | 1.59 | -9.21 | 92.27 | 46.56 | 261.30 | 0.7275 | -756.2 | -604.7 | |
| 1.19 | -28.00 | 0.87 | -28.00 | -12.19 | 92.83 | 47.12 | 257.28 | 0.7366 | -425.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.92 | -10.60 | 92.48 | 46.77 | 259.41 | 0.7310 | -455.0 | -278.7 | |
| 0.00 | 1.19 | 0.00 | 0.86 | -10.31 | 92.30 | 46.59 | 259.79 | 0.7286 | -650.0 | -506.6 | |
| 7.14 | -28.00 | 5.22 | -28.00 | -13.48 | 92.83 | 47.12 | 255.53 | 0.7383 | 895.9 | 999999 | |
| 0.59 | 1.61 | 0.43 | 1.16 | -10.58 | 92.17 | 46.46 | 259.40 | 0.7274 | -692.9 | -553.9 | |
| 0.00 | 1.10 | 0.00 | 0.80 | -11.80 | 92.34 | 46.63 | 257.75 | 0.7305 | -610.0 | -492.4 | |
| 1.44 | -28.00 | 1.05 | -28.00 | -12.90 | 92.51 | 46.80 | 256.27 | 0.7338 | -521.2 | 999999 | |
| 1.19 | 3.14 | 0.85 | 2.25 | -10.48 | 91.94 | 46.23 | 259.52 | 0.7244 | -727.5 | -576.4 | |
| 3.65 | -28.00 | 2.65 | -28.00 | -12.67 | 92.36 | 46.65 | 256.57 | 0.7318 | -586.0 | 999999 | |
| 1.70 | -28.00 | 1.23 | -28.00 | -12.85 | 92.32 | 46.61 | 256.31 | 0.7315 | -438.3 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.15 | -10.82 | 91.70 | 45.99 | 259.03 | 0.7219 | -753.0 | -674.6 | |
| 0.00 | 1.61 | 0.00 | 1.15 | -11.41 | 91.77 | 46.06 | 258.21 | 0.7235 | -560.0 | -492.5 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -12.09 | 91.92 | 46.21 | 257.30 | 0.7260 | -483.0 | -466.9 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -10.61 | 91.57 | 45.86 | 259.29 | 0.7202 | -565.0 | -452.0 | |
| 2.89 | -28.00 | 2.07 | -28.00 | -12.66 | 91.88 | 46.17 | 256.50 | 0.7262 | -737.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.15 | -12.07 | 91.70 | 45.99 | 257.29 | 0.7233 | -644.0 | -550.7 | |
| 1.10 | -28.00 | 0.79 | -28.00 | -13.02 | 91.87 | 46.16 | 256.01 | 0.7266 | -532.8 | 999999 | |
| 0.00 | 3.06 | 0.00 | 2.17 | -10.98 | 91.43 | 45.72 | 258.77 | 0.7189 | -610.0 | -547.8 | |
| 3.23 | 5.10 | 2.34 | 3.70 | -14.66 | 92.21 | 46.50 | 253.83 | 0.7330 | 714.6 | 543.3 | |
| 0.00 | 1.10 | 0.00 | 0.78 | -10.46 | 91.15 | 45.44 | 259.47 | 0.7151 | -756.0 | -660.3 | |
| 1.78 | 4.08 | 1.27 | 2.90 | -12.18 | 91.37 | 45.66 | 257.10 | 0.7196 | -784.0 | -625.0 | |
| 0.00 | 1.44 | 0.00 | 1.03 | -12.77 | 91.42 | 45.71 | 256.28 | 0.7210 | -513.0 | -525.0 | |
| 0.76 | 2.29 | 0.54 | 1.62 | -11.89 | 91.18 | 45.47 | 257.47 | 0.7170 | -766.7 | -595.6 | |
| 0.93 | 2.04 | 0.66 | 1.45 | -12.48 | 91.27 | 45.56 | 256.66 | 0.7188 | -600.9 | -505.3 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -6.32 | 90.21 | 44.50 | 265.27 | 0.7014 | -676.0 | -522.8 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -9.62 | 90.62 | 44.91 | 260.59 | 0.7079 | -780.0 | -620.9 | |
| 0.00 | 1.53 | 0.00 | 1.06 | -6.83 | 90.14 | 44.43 | 264.54 | 0.7006 | -150.0 | -197.9 | |
| 0.00 | 0.76 | 0.00 | 0.54 | -12.44 | 90.96 | 45.25 | 256.68 | 0.7150 | -652.0 | -578.4 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -11.08 | 90.67 | 44.96 | 258.54 | 0.7100 | -467.0 | -587.5 | |
| 0.00 | 2.29 | 0.00 | 1.62 | -12.85 | 91.01 | 45.30 | 256.10 | 0.7162 | -595.0 | -564.5 | |
| 0.76 | 1.70 | 0.53 | 1.19 | -11.06 | 90.50 | 44.79 | 258.55 | 0.7078 | -792.9 | -717.3 | |
| 0.00 | 0.93 | 0.00 | 0.65 | -11.77 | 90.60 | 44.89 | 257.56 | 0.7099 | -540.0 | -519.2 | |
| 0.00 | 0.93 | 0.00 | 0.65 | -11.36 | 90.47 | 44.76 | 258.12 | 0.7079 | -711.0 | -563.9 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -8.52 | 89.99 | 44.28 | 262.10 | 0.6994 | -577.0 | -535.7 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -12.43 | 90.61 | 44.90 | 256.64 | 0.7109 | -613.0 | -562.3 | |
| 0.51 | 1.70 | 0.36 | 1.21 | -14.27 | 91.01 | 45.30 | 254.14 | 0.7184 | -453.5 | -376.4 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -11.90 | 90.41 | 44.70 | 257.35 | 0.7078 | -687.0 | -645.1 | |
| 0.00 | 2.46 | 0.00 | 1.72 | -12.31 | 90.46 | 44.75 | 256.77 | 0.7089 | -763.0 | -616.0 | |
| 0.00 | 0.59 | 0.00 | 0.42 | -13.74 | 90.74 | 45.03 | 254.83 | 0.7145 | -353.0 | -299.6 | |
| 0.00 | 1.61 | 0.00 | 1.13 | -12.85 | 90.41 | 44.70 | 256.00 | 0.7091 | -703.0 | -572.0 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -12.08 | 90.24 | 44.53 | 257.06 | 0.7060 | -779.0 | -660.9 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -8.46 | 89.52 | 43.81 | 262.17 | 0.6936 | -727.0 | -645.3 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -12.33 | 90.21 | 44.50 | 256.72 | 0.7059 | -522.0 | -470.1 | |
| 0.00 | 2.21 | 0.00 | 1.53 | -12.12 | 90.04 | 44.33 | 256.97 | 0.7036 | -784.0 | -687.9 | |
| 0.00 | 1.70 | 0.00 | 1.18 | -12.45 | 90.06 | 44.35 | 256.51 | 0.7044 | -567.0 | -570.3 | |
| 2.04 | 20.13 | 1.43 | 14.06 | -13.79 | 90.24 | 44.53 | 254.66 | 0.7086 | -532.2 | -28.5 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -8.41 | 89.23 | 43.51 | 262.21 | 0.6898 | -776.0 | -688.4 | |
| 0.00 | 0.59 | 0.00 | 0.41 | -12.99 | 90.01 | 44.30 | 255.74 | 0.7046 | -496.0 | -361.3 | |
| 0.00 | 0.76 | 0.00 | 0.53 | -12.24 | 89.60 | 43.89 | 256.75 | 0.6984 | -645.0 | -566.6 | |
| 0.00 | 2.63 | 0.00 | 1.82 | -12.90 | 89.57 | 43.86 | 255.80 | 0.6991 | -541.0 | -529.5 | |
| 3.65 | 6.03 | 2.53 | 4.17 | -13.86 | 89.58 | 43.87 | 254.44 | 0.7008 | -772.3 | -595.8 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -12.43 | 89.22 | 43.51 | 256.40 | 0.6941 | -592.0 | -513.6 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -13.17 | 88.96 | 43.25 | 255.30 | 0.6921 | -629.0 | -549.9 | |
| 0.00 | 1.10 | 0.00 | 0.75 | -12.62 | 88.55 | 42.84 | 256.02 | 0.6861 | -706.0 | -513.2 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -11.37 | 85.74 | 40.03 | 257.35 | 0.6485 | -532.0 | -471.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
