SDO HMI 2014-01-11 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.23 | 42.05 | 6.47 | 22.26 | -17.67 | 29.73 | -15.98 | 131.90 | 0.3540 | 611.9 | 337.8 | |
|
previous
or next observation for the same group /

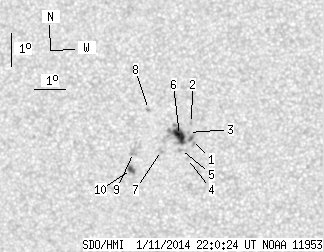

back to the solar disc SDO HMI 2014-01-11 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.50 | 0.00 | 2.37 | -17.60 | 30.47 | -15.25 | 133.02 | 0.3444 | 870.0 | 892.8 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -17.11 | 30.48 | -15.24 | 131.94 | 0.3391 | 865.0 | 765.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -17.38 | 30.36 | -15.35 | 132.34 | 0.3434 | 966.0 | 834.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -18.17 | 30.25 | -15.46 | 133.90 | 0.3530 | 829.0 | 506.0 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -17.89 | 30.05 | -15.66 | 132.94 | 0.3524 | 729.0 | 623.3 | |
| 10.02 | 19.28 | 5.29 | 10.18 | -17.47 | 30.06 | -15.65 | 132.01 | 0.3479 | 1100.8 | 633.1 | |
| 0.00 | 2.72 | 0.00 | 1.44 | -17.91 | 29.44 | -16.27 | 131.94 | 0.3600 | -388.0 | -328.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -16.66 | 29.14 | -16.57 | 128.64 | 0.3514 | 1016.0 | 844.6 | |
| 0.00 | 4.76 | 0.00 | 2.54 | -17.95 | 28.53 | -17.18 | 130.56 | 0.3715 | -539.0 | -455.3 | |
| 2.21 | 3.91 | 1.18 | 2.09 | -18.46 | 28.41 | -17.30 | 131.47 | 0.3781 | -1116.7 | -845.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
