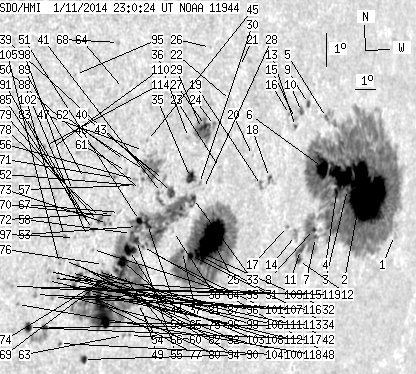

SDO HMI 2014-01-11 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 343.79 | 1937.95 | 300.34 | 1668.70 | -9.86 | 100.00 | 54.84 | 260.76 | 0.8153 | 370.8 | 170.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-11 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.95 | -10.08 | 107.12 | 61.96 | 260.82 | 0.8822 | -235.0 | -218.6 | |
| 155.05 | 946.45 | 150.66 | 908.04 | -8.89 | 104.73 | 59.57 | 262.17 | 0.8620 | 797.3 | 238.3 | |
| 0.42 | -2.00 | 0.40 | -2.00 | -8.91 | 103.91 | 58.75 | 262.14 | 0.8547 | 838.8 | 999999 | |
| 2.80 | -2.00 | 2.61 | -2.00 | -9.03 | 103.31 | 58.15 | 261.98 | 0.8493 | 842.1 | 999999 | |
| 1.44 | -2.00 | 1.31 | -2.00 | -6.87 | 102.27 | 57.11 | 264.55 | 0.8397 | 642.9 | 999999 | |
| 18.27 | -2.00 | 16.59 | -2.00 | -8.35 | 102.36 | 57.20 | 262.78 | 0.8404 | 1024.6 | 999999 | |
| 1.36 | -2.00 | 1.24 | -2.00 | -10.42 | 102.50 | 57.34 | 260.31 | 0.8421 | 571.1 | 999999 | |
| 1.02 | -2.00 | 0.93 | -2.00 | -10.20 | 102.33 | 57.17 | 260.58 | 0.8404 | 737.0 | 999999 | |
| 1.53 | 2.97 | 1.35 | 2.62 | -6.51 | 101.23 | 56.07 | 264.99 | 0.8298 | 531.7 | 415.5 | |
| 2.12 | 3.91 | 1.86 | 3.42 | -6.77 | 100.91 | 55.75 | 264.68 | 0.8265 | 692.6 | 566.8 | |
| 4.59 | -2.00 | 4.11 | -2.00 | -10.83 | 101.79 | 56.63 | 259.80 | 0.8356 | 30.9 | 999999 | |
| 1.70 | -2.00 | 1.52 | -2.00 | -11.16 | 101.77 | 56.61 | 259.41 | 0.8356 | -530.8 | 999999 | |
| 0.85 | 2.04 | 0.74 | 1.77 | -7.23 | 100.67 | 55.51 | 264.12 | 0.8242 | 636.5 | 536.9 | |
| 0.00 | 5.01 | 0.00 | 4.45 | -10.43 | 101.40 | 56.24 | 260.26 | 0.8318 | 35.0 | 159.0 | |
| 0.00 | 2.04 | 0.00 | 1.77 | -7.00 | 100.63 | 55.47 | 264.41 | 0.8238 | 500.0 | 445.8 | |
| 0.00 | 0.59 | 0.00 | 0.51 | -6.90 | 100.29 | 55.13 | 264.53 | 0.8205 | -188.0 | -122.4 | |
| 0.34 | 1.36 | 0.30 | 1.19 | -10.19 | 100.90 | 55.74 | 260.53 | 0.8269 | 644.0 | 553.1 | |
| 1.02 | 4.93 | 0.86 | 4.19 | -8.81 | 99.63 | 54.47 | 262.18 | 0.8140 | 611.6 | 488.7 | |
| 0.00 | 3.48 | 0.00 | 2.93 | -9.07 | 99.27 | 54.11 | 261.85 | 0.8104 | 674.0 | 643.8 | |
| 0.00 | 0.59 | 0.00 | 0.49 | -8.21 | 98.64 | 53.48 | 262.90 | 0.8038 | 521.0 | 525.7 | |
| 0.00 | 1.02 | 0.00 | 0.82 | -5.63 | 97.58 | 52.42 | 266.14 | 0.7928 | -376.0 | -295.4 | |
| 0.00 | 1.78 | 0.00 | 1.43 | -6.66 | 97.28 | 52.12 | 264.85 | 0.7895 | -465.0 | -331.6 | |
| 0.00 | 1.78 | 0.00 | 1.43 | -8.66 | 97.09 | 51.93 | 262.30 | 0.7877 | -143.0 | -124.6 | |
| 0.00 | 2.38 | 0.00 | 1.88 | -7.43 | 96.63 | 51.47 | 263.85 | 0.7825 | 597.0 | 487.8 | |
| 51.23 | 318.09 | 41.14 | 254.74 | -10.77 | 97.16 | 52.00 | 259.62 | 0.7893 | 960.3 | 287.0 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -5.15 | 96.13 | 50.97 | 266.79 | 0.7772 | -406.0 | -382.2 | |
| 1.53 | 30.16 | 1.20 | 23.62 | -7.46 | 96.21 | 51.05 | 263.82 | 0.7779 | 795.3 | 507.8 | |
| 0.00 | 0.85 | 0.00 | 0.67 | -9.32 | 96.45 | 51.29 | 261.43 | 0.7810 | 516.0 | 458.7 | |
| 1.19 | -27.00 | 0.93 | -27.00 | -7.56 | 96.03 | 50.87 | 263.69 | 0.7760 | 882.9 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.47 | -9.18 | 96.23 | 51.07 | 261.60 | 0.7786 | 413.0 | 512.5 | |
| 2.29 | -25.00 | 1.82 | -25.00 | -11.28 | 96.60 | 51.44 | 258.93 | 0.7837 | 933.8 | 999999 | |
| 0.68 | -25.00 | 0.54 | -25.00 | -11.16 | 96.48 | 51.32 | 259.07 | 0.7823 | 1113.6 | 999999 | |
| 2.46 | 438.73 | 1.93 | 327.51 | -9.64 | 96.04 | 50.88 | 261.00 | 0.7767 | 750.3 | 46.7 | |
| 3.31 | -25.00 | 2.61 | -25.00 | -11.32 | 96.28 | 51.12 | 258.85 | 0.7803 | 890.1 | 999999 | |
| 6.97 | 9.86 | 5.42 | 7.67 | -9.03 | 95.77 | 50.61 | 261.78 | 0.7735 | -617.0 | -277.1 | |
| 0.00 | 1.78 | 0.00 | 1.38 | -7.86 | 95.47 | 50.31 | 263.29 | 0.7699 | 323.0 | 348.5 | |
| 1.02 | -25.00 | 0.80 | -25.00 | -11.23 | 95.87 | 50.71 | 258.94 | 0.7758 | 902.8 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.72 | -10.66 | 95.31 | 50.15 | 259.63 | 0.7693 | 534.0 | 404.5 | |
| 4.93 | 8.24 | 3.77 | 6.30 | -9.52 | 94.98 | 49.82 | 261.10 | 0.7650 | -534.9 | -336.8 | |
| 0.00 | 3.91 | 0.00 | 2.97 | -9.15 | 94.53 | 49.37 | 261.55 | 0.7599 | -236.0 | -280.6 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -9.54 | 94.52 | 49.36 | 261.04 | 0.7599 | -482.0 | -490.9 | |
| 0.00 | 0.76 | 0.00 | 0.58 | -11.41 | 94.69 | 49.53 | 258.59 | 0.7630 | -249.0 | -192.6 | |
| 2.63 | 35.85 | 1.98 | 26.87 | -9.00 | 94.09 | 48.93 | 261.73 | 0.7548 | -623.1 | -217.2 | |
| 3.99 | -33.00 | 3.01 | -33.00 | -10.52 | 94.07 | 48.91 | 259.71 | 0.7555 | -739.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -8.05 | 93.61 | 48.45 | 262.98 | 0.7490 | -516.0 | -439.2 | |
| 0.93 | -43.00 | 0.70 | -43.00 | -8.94 | 93.63 | 48.47 | 261.79 | 0.7495 | -626.2 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -8.35 | 93.48 | 48.32 | 262.57 | 0.7476 | -490.0 | -468.8 | |
| 0.59 | -33.00 | 0.45 | -33.00 | -11.18 | 93.99 | 48.83 | 258.83 | 0.7550 | -581.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.78 | -13.02 | 94.39 | 49.23 | 256.46 | 0.7614 | 513.0 | 464.3 | |
| 0.00 | 2.55 | 0.00 | 1.90 | -9.53 | 93.56 | 48.40 | 260.99 | 0.7490 | -492.0 | -441.6 | |
| 3.14 | -33.00 | 2.35 | -33.00 | -10.42 | 93.69 | 48.53 | 259.81 | 0.7511 | 611.1 | 999999 | |
| 0.00 | 0.25 | 0.00 | 0.19 | -9.39 | 93.44 | 48.28 | 261.17 | 0.7476 | -684.0 | -656.0 | |
| 1.95 | -33.00 | 1.46 | -33.00 | -10.60 | 93.63 | 48.47 | 259.57 | 0.7506 | 709.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -12.88 | 94.17 | 49.01 | 256.61 | 0.7588 | 537.0 | 487.1 | |
| 3.40 | -33.00 | 2.54 | -33.00 | -11.02 | 93.68 | 48.52 | 259.02 | 0.7514 | -717.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.57 | -9.22 | 93.27 | 48.11 | 261.39 | 0.7456 | -781.0 | -685.3 | |
| 0.00 | 1.95 | 0.00 | 1.45 | -9.40 | 93.22 | 48.06 | 261.14 | 0.7450 | -561.0 | -471.5 | |
| 1.02 | -33.00 | 0.76 | -33.00 | -10.82 | 93.41 | 48.25 | 259.25 | 0.7482 | -454.2 | 999999 | |
| 9.01 | -33.00 | 6.70 | -33.00 | -11.33 | 93.43 | 48.27 | 258.58 | 0.7489 | -751.3 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.71 | -13.85 | 94.06 | 48.90 | 255.32 | 0.7587 | 694.0 | 625.5 | |
| 0.00 | 2.46 | 0.00 | 1.81 | -9.01 | 92.83 | 47.67 | 261.65 | 0.7404 | -606.0 | -533.2 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -8.69 | 92.69 | 47.53 | 262.08 | 0.7386 | -289.0 | -382.9 | |
| 0.00 | 1.53 | 0.00 | 1.15 | -13.86 | 93.79 | 48.63 | 255.26 | 0.7557 | 775.0 | 600.8 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -6.57 | 92.34 | 47.18 | 264.95 | 0.7339 | -508.0 | -486.3 | |
| 7.99 | -33.00 | 5.92 | -33.00 | -11.67 | 93.19 | 48.03 | 258.09 | 0.7465 | -850.2 | 999999 | |
| 2.89 | -33.00 | 2.14 | -33.00 | -12.03 | 93.23 | 48.07 | 257.62 | 0.7473 | -505.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -10.23 | 92.75 | 47.59 | 259.99 | 0.7402 | -548.0 | -451.2 | |
| 0.00 | 1.70 | 0.00 | 1.23 | -5.23 | 91.98 | 46.82 | 266.79 | 0.7296 | -412.0 | -377.2 | |
| 1.61 | -33.00 | 1.19 | -33.00 | -11.95 | 92.98 | 47.82 | 257.69 | 0.7444 | -718.1 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -10.36 | 92.59 | 47.43 | 259.80 | 0.7385 | -339.0 | -337.2 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -9.21 | 92.34 | 47.18 | 261.34 | 0.7347 | -791.0 | -713.1 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -10.28 | 92.40 | 47.24 | 259.89 | 0.7362 | -612.0 | -510.8 | |
| 0.00 | 3.82 | 0.00 | 2.78 | -10.58 | 92.28 | 47.12 | 259.47 | 0.7351 | -474.0 | -539.1 | |
| 5.18 | -33.00 | 3.80 | -33.00 | -12.18 | 92.59 | 47.43 | 257.34 | 0.7401 | -517.4 | 999999 | |
| 6.54 | -33.00 | 4.84 | -33.00 | -13.52 | 92.87 | 47.71 | 255.58 | 0.7450 | 838.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -11.80 | 92.37 | 47.21 | 257.82 | 0.7372 | -508.0 | -415.0 | |
| 2.04 | -33.00 | 1.50 | -33.00 | -13.02 | 92.61 | 47.45 | 256.21 | 0.7414 | -268.2 | 999999 | |
| 0.42 | 3.82 | 0.31 | 2.76 | -10.42 | 91.94 | 46.78 | 259.66 | 0.7309 | -660.8 | -560.6 | |
| 0.76 | -78.00 | 0.55 | -78.00 | -10.55 | 91.88 | 46.72 | 259.48 | 0.7303 | -735.6 | 999999 | |
| 3.57 | -33.00 | 2.61 | -33.00 | -12.85 | 92.34 | 47.18 | 256.40 | 0.7382 | -532.4 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.56 | -12.03 | 92.15 | 46.99 | 257.49 | 0.7349 | -509.0 | -493.6 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -12.09 | 91.99 | 46.83 | 257.38 | 0.7331 | -560.0 | -493.5 | |
| 0.34 | 1.53 | 0.24 | 1.10 | -10.80 | 91.67 | 46.51 | 259.12 | 0.7280 | -722.5 | -628.9 | |
| 0.00 | 1.19 | 0.00 | 0.86 | -11.39 | 91.79 | 46.63 | 258.32 | 0.7300 | -487.0 | -548.7 | |
| 0.00 | 1.61 | 0.00 | 1.16 | -10.65 | 91.51 | 46.35 | 259.29 | 0.7260 | -480.0 | -460.6 | |
| 4.25 | -33.00 | 3.08 | -33.00 | -12.70 | 91.91 | 46.75 | 256.55 | 0.7329 | -689.8 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.66 | -12.05 | 91.71 | 46.55 | 257.41 | 0.7299 | -578.0 | -518.3 | |
| 0.00 | 0.59 | 0.00 | 0.43 | -11.01 | 91.49 | 46.33 | 258.80 | 0.7262 | -729.0 | -633.6 | |
| 0.00 | 1.44 | 0.00 | 1.03 | -9.31 | 91.04 | 45.88 | 261.12 | 0.7195 | -632.0 | -518.5 | |
| 3.06 | 4.33 | 2.24 | 3.17 | -14.67 | 92.19 | 47.03 | 253.93 | 0.7391 | 715.8 | 575.7 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -10.47 | 91.12 | 45.96 | 259.52 | 0.7213 | -724.0 | -637.9 | |
| 2.12 | 3.48 | 1.53 | 2.50 | -12.18 | 91.39 | 46.23 | 257.18 | 0.7263 | -733.0 | -573.1 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -12.81 | 91.54 | 46.38 | 256.34 | 0.7288 | -698.0 | -639.3 | |
| 0.51 | 1.61 | 0.36 | 1.16 | -11.86 | 91.23 | 46.07 | 257.60 | 0.7241 | -774.3 | -691.5 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -6.27 | 90.24 | 45.08 | 265.36 | 0.7086 | -599.0 | -486.7 | |
| 0.85 | 2.29 | 0.61 | 1.64 | -12.49 | 91.24 | 46.08 | 256.73 | 0.7249 | -594.9 | -561.3 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -11.07 | 90.94 | 45.78 | 258.65 | 0.7197 | -581.0 | -561.6 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -9.69 | 90.59 | 45.43 | 260.55 | 0.7143 | -739.0 | -690.2 | |
| 0.00 | 0.93 | 0.00 | 0.67 | -12.12 | 90.98 | 45.82 | 257.21 | 0.7214 | -673.0 | -622.0 | |
| 0.00 | 1.78 | 0.00 | 1.27 | -12.83 | 91.02 | 45.86 | 256.23 | 0.7227 | -671.0 | -579.6 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -12.54 | 90.86 | 45.70 | 256.61 | 0.7205 | -533.0 | -482.2 | |
| 0.34 | 1.61 | 0.24 | 1.14 | -11.06 | 90.51 | 45.35 | 258.61 | 0.7145 | -807.0 | -684.5 | |
| 0.00 | 0.93 | 0.00 | 0.66 | -11.77 | 90.65 | 45.49 | 257.64 | 0.7171 | -621.0 | -553.3 | |
| 0.34 | 1.53 | 0.24 | 1.10 | -14.25 | 91.02 | 45.86 | 254.29 | 0.7249 | -479.2 | -428.9 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -11.87 | 90.46 | 45.30 | 257.48 | 0.7149 | -759.0 | -673.2 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -12.29 | 90.50 | 45.34 | 256.90 | 0.7159 | -704.0 | -615.6 | |
| 0.00 | 1.95 | 0.00 | 1.38 | -12.89 | 90.42 | 45.26 | 256.05 | 0.7158 | -712.0 | -549.6 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -12.12 | 90.25 | 45.09 | 257.10 | 0.7127 | -669.0 | -676.8 | |
| 0.00 | 1.27 | 0.00 | 0.90 | -12.33 | 90.25 | 45.09 | 256.81 | 0.7130 | -567.0 | -540.5 | |
| 0.00 | 0.93 | 0.00 | 0.65 | -8.46 | 89.55 | 44.39 | 262.20 | 0.7008 | -676.0 | -601.3 | |
| 0.00 | 2.21 | 0.00 | 1.55 | -12.13 | 90.04 | 44.88 | 257.05 | 0.7102 | -817.0 | -689.6 | |
| 0.00 | 1.10 | 0.00 | 0.78 | -12.40 | 90.05 | 44.89 | 256.68 | 0.7108 | -643.0 | -618.1 | |
| 2.04 | 20.56 | 1.44 | 14.45 | -13.80 | 90.25 | 45.09 | 254.76 | 0.7152 | -571.4 | -113.1 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -8.45 | 89.22 | 44.06 | 262.20 | 0.6966 | -812.0 | -713.3 | |
| 0.00 | 1.10 | 0.00 | 0.77 | -12.66 | 89.64 | 44.48 | 256.25 | 0.7062 | -722.0 | -573.2 | |
| 0.00 | 1.78 | 0.00 | 1.24 | -12.84 | 89.64 | 44.48 | 255.99 | 0.7064 | -629.0 | -554.0 | |
| 4.16 | -113.00 | 2.91 | -113.00 | -13.84 | 89.57 | 44.41 | 254.58 | 0.7073 | -764.6 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.76 | -13.18 | 88.95 | 43.79 | 255.40 | 0.6987 | -489.0 | -462.6 | |
| 0.00 | 1.10 | 0.00 | 0.76 | -12.65 | 88.63 | 43.47 | 256.09 | 0.6939 | -654.0 | -604.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
