SDO HMI 2014-01-12 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 328.71 | 1852.01 | 295.60 | 1640.86 | -9.85 | 100.07 | 56.01 | 260.82 | 0.8267 | 373.6 | 170.5 | |
|
previous
or next observation for the same group /

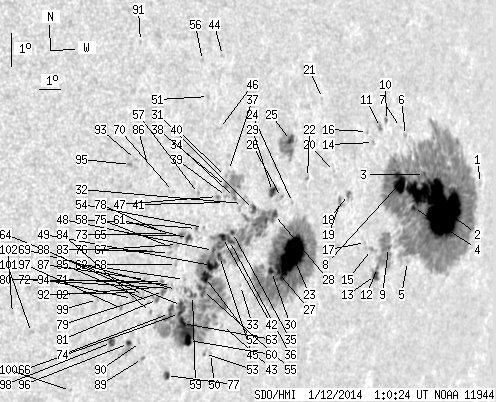

back to the solar disc SDO HMI 2014-01-12 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 2.68 | -8.04 | 107.23 | 63.17 | 263.13 | 0.8919 | -180.0 | -178.6 | |
| 151.34 | 903.13 | 151.83 | 894.76 | -8.86 | 104.71 | 60.65 | 262.22 | 0.8713 | 738.9 | 227.8 | |
| 1.27 | -2.00 | 1.24 | -2.00 | -8.00 | 103.70 | 59.64 | 263.21 | 0.8626 | 620.7 | 999999 | |
| 1.87 | -2.00 | 1.80 | -2.00 | -9.00 | 103.30 | 59.24 | 262.04 | 0.8591 | 796.2 | 999999 | |
| 0.00 | 2.29 | 0.00 | 2.22 | -10.61 | 103.42 | 59.35 | 260.17 | 0.8603 | 197.0 | 227.1 | |
| 0.00 | 1.70 | 0.00 | 1.59 | -6.92 | 102.36 | 58.30 | 264.48 | 0.8507 | 648.0 | 490.5 | |
| 0.00 | 0.51 | 0.00 | 0.47 | -6.70 | 102.04 | 57.98 | 264.74 | 0.8477 | 339.0 | 440.8 | |
| 18.27 | -2.00 | 17.08 | -2.00 | -8.35 | 102.33 | 58.27 | 262.80 | 0.8503 | 971.0 | 999999 | |
| 1.27 | -2.00 | 1.19 | -2.00 | -10.26 | 102.21 | 58.14 | 260.54 | 0.8494 | 767.7 | 999999 | |
| 0.76 | 2.55 | 0.69 | 2.31 | -6.55 | 101.23 | 57.17 | 264.94 | 0.8402 | 474.3 | 400.6 | |
| 1.10 | 4.93 | 0.99 | 4.43 | -6.77 | 100.94 | 56.88 | 264.68 | 0.8374 | 683.8 | 603.3 | |
| 0.68 | -2.00 | 0.63 | -2.00 | -10.89 | 101.77 | 57.70 | 259.78 | 0.8456 | 126.1 | 999999 | |
| 4.16 | -2.00 | 3.84 | -2.00 | -11.13 | 101.73 | 57.66 | 259.49 | 0.8453 | -478.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.14 | -7.23 | 100.64 | 56.58 | 264.13 | 0.8346 | 660.0 | 565.5 | |
| 0.68 | 3.91 | 0.62 | 3.56 | -10.38 | 101.28 | 57.22 | 260.37 | 0.8409 | 306.2 | 236.2 | |
| 0.00 | 1.19 | 0.00 | 1.05 | -6.93 | 100.26 | 56.20 | 264.49 | 0.8309 | -206.0 | -145.7 | |
| 0.00 | 0.42 | 0.00 | 0.38 | -10.20 | 100.89 | 56.83 | 260.58 | 0.8373 | 659.0 | 515.8 | |
| 1.70 | 3.74 | 1.48 | 3.26 | -8.84 | 99.63 | 55.57 | 262.18 | 0.8249 | 621.2 | 469.9 | |
| 1.70 | 4.16 | 1.47 | 3.60 | -9.07 | 99.26 | 55.20 | 261.89 | 0.8213 | 668.5 | 559.1 | |
| 0.00 | 0.42 | 0.00 | 0.36 | -8.21 | 98.76 | 54.70 | 262.94 | 0.8162 | 570.0 | 515.8 | |
| 0.00 | 0.42 | 0.00 | 0.35 | -6.10 | 97.79 | 53.72 | 265.54 | 0.8063 | -308.0 | -273.4 | |
| 0.00 | 1.10 | 0.00 | 0.91 | -8.46 | 97.44 | 53.38 | 262.60 | 0.8028 | -536.0 | -423.8 | |
| 50.14 | 318.75 | 41.27 | 261.49 | -10.77 | 97.20 | 53.14 | 259.70 | 0.8012 | 892.4 | 280.3 | |
| 0.00 | 1.10 | 0.00 | 0.90 | -9.24 | 96.85 | 52.79 | 261.60 | 0.7968 | 437.0 | 354.9 | |
| 5.01 | 28.98 | 4.04 | 23.32 | -7.42 | 96.40 | 52.34 | 263.89 | 0.7918 | 778.1 | 470.1 | |
| 0.00 | 1.53 | 0.00 | 1.23 | -9.12 | 96.28 | 52.22 | 261.73 | 0.7909 | 616.0 | 514.4 | |
| 1.61 | -23.00 | 1.31 | -23.00 | -11.34 | 96.65 | 52.59 | 258.95 | 0.7958 | 893.7 | 999999 | |
| 2.55 | 430.75 | 2.04 | 328.96 | -9.64 | 96.05 | 51.99 | 261.06 | 0.7886 | 753.0 | 65.6 | |
| 5.27 | 8.07 | 4.20 | 6.44 | -8.97 | 95.81 | 51.75 | 261.90 | 0.7858 | -627.0 | -351.8 | |
| 3.06 | -23.00 | 2.47 | -23.00 | -11.33 | 96.30 | 52.24 | 258.94 | 0.7921 | 906.5 | 999999 | |
| 2.63 | -28.00 | 2.07 | -28.00 | -9.55 | 95.01 | 50.95 | 261.12 | 0.7775 | -471.7 | 999999 | |
| 0.00 | 5.35 | 0.00 | 4.15 | -9.41 | 94.46 | 50.40 | 261.29 | 0.7714 | -520.0 | -499.6 | |
| 0.00 | 0.76 | 0.00 | 0.60 | -11.83 | 94.92 | 50.86 | 258.19 | 0.7779 | 444.0 | 405.8 | |
| 0.85 | 27.19 | 0.65 | 20.85 | -9.25 | 94.06 | 50.00 | 261.47 | 0.7668 | -698.0 | -204.7 | |
| 1.53 | -28.00 | 1.18 | -28.00 | -10.29 | 94.18 | 50.11 | 260.13 | 0.7687 | -715.6 | 999999 | |
| 3.40 | -28.00 | 2.62 | -28.00 | -10.53 | 94.09 | 50.03 | 259.80 | 0.7679 | -629.9 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -8.47 | 93.64 | 49.57 | 262.47 | 0.7618 | -459.0 | -402.8 | |
| 0.76 | -34.00 | 0.58 | -34.00 | -8.95 | 93.63 | 49.57 | 261.85 | 0.7619 | -622.8 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.43 | -9.24 | 93.68 | 49.62 | 261.46 | 0.7627 | -691.0 | -573.7 | |
| 0.00 | 1.70 | 0.00 | 1.29 | -8.65 | 93.53 | 49.47 | 262.23 | 0.7607 | -458.0 | -429.6 | |
| 0.00 | 0.93 | 0.00 | 0.71 | -9.42 | 93.63 | 49.56 | 261.22 | 0.7621 | -639.0 | -547.9 | |
| 3.57 | -28.00 | 2.73 | -28.00 | -10.46 | 93.74 | 49.68 | 259.87 | 0.7640 | 608.6 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.86 | -13.06 | 94.39 | 50.33 | 256.55 | 0.7733 | 563.0 | 425.0 | |
| 0.00 | 1.53 | 0.00 | 1.15 | -5.10 | 92.90 | 48.84 | 266.93 | 0.7533 | -482.0 | -357.2 | |
| 2.89 | -28.00 | 2.21 | -28.00 | -11.03 | 93.73 | 49.67 | 259.12 | 0.7643 | -622.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.09 | -7.26 | 93.03 | 48.97 | 264.06 | 0.7547 | -632.0 | -519.0 | |
| 0.34 | 3.65 | 0.26 | 2.77 | -9.26 | 93.27 | 49.21 | 261.41 | 0.7581 | -724.5 | -631.6 | |
| 1.36 | -28.00 | 1.03 | -28.00 | -10.86 | 93.42 | 49.35 | 259.31 | 0.7607 | -334.1 | 999999 | |
| 7.31 | -28.00 | 5.56 | -28.00 | -11.31 | 93.43 | 49.36 | 258.72 | 0.7611 | -763.8 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.72 | -13.92 | 94.06 | 50.00 | 255.40 | 0.7707 | 660.0 | 618.3 | |
| 0.00 | 1.70 | 0.00 | 1.26 | -6.34 | 92.41 | 48.35 | 265.28 | 0.7475 | -617.0 | -465.5 | |
| 7.90 | -28.00 | 5.99 | -28.00 | -11.68 | 93.23 | 49.17 | 258.22 | 0.7593 | -780.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.24 | -13.93 | 93.78 | 49.72 | 255.34 | 0.7677 | 674.0 | 522.1 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -10.21 | 92.82 | 48.76 | 260.12 | 0.7535 | -325.0 | -320.6 | |
| 4.84 | -28.00 | 3.67 | -28.00 | -12.07 | 93.19 | 49.13 | 257.70 | 0.7592 | -525.9 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.81 | -5.30 | 92.02 | 47.96 | 266.69 | 0.7431 | -538.0 | -441.5 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -9.22 | 92.40 | 48.34 | 261.42 | 0.7481 | -742.0 | -674.7 | |
| 0.59 | 1.70 | 0.44 | 1.27 | -10.26 | 92.51 | 48.45 | 260.04 | 0.7500 | -433.3 | -317.7 | |
| 2.46 | -28.00 | 1.85 | -28.00 | -12.24 | 92.77 | 48.71 | 257.42 | 0.7547 | -415.1 | 999999 | |
| 6.29 | -28.00 | 4.75 | -28.00 | -13.59 | 92.94 | 48.88 | 255.67 | 0.7581 | 887.6 | 999999 | |
| 2.72 | 8.16 | 2.02 | 6.04 | -10.57 | 92.21 | 48.15 | 259.59 | 0.7468 | -639.2 | -533.1 | |
| 0.00 | 1.10 | 0.00 | 0.82 | -11.79 | 92.30 | 48.24 | 257.97 | 0.7489 | -470.0 | -368.0 | |
| 4.50 | -28.00 | 3.38 | -28.00 | -13.10 | 92.53 | 48.47 | 256.26 | 0.7529 | -164.5 | 999999 | |
| 2.63 | -28.00 | 1.96 | -28.00 | -12.57 | 92.35 | 48.29 | 256.94 | 0.7503 | -666.0 | 999999 | |
| 1.36 | -61.00 | 1.00 | -61.00 | -10.50 | 91.88 | 47.82 | 259.66 | 0.7430 | -732.2 | 999999 | |
| 1.61 | -28.00 | 1.20 | -28.00 | -12.81 | 92.32 | 48.26 | 256.62 | 0.7502 | -570.9 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.25 | -10.77 | 91.76 | 47.70 | 259.28 | 0.7418 | -713.0 | -604.5 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -11.37 | 91.84 | 47.78 | 258.49 | 0.7433 | -608.0 | -443.9 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -12.11 | 92.01 | 47.95 | 257.52 | 0.7459 | -420.0 | -447.3 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -9.22 | 91.28 | 47.22 | 261.35 | 0.7352 | -587.0 | -495.4 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -11.97 | 91.75 | 47.69 | 257.67 | 0.7429 | -421.0 | -435.2 | |
| 0.00 | 2.29 | 0.00 | 1.69 | -12.09 | 91.78 | 47.72 | 257.51 | 0.7433 | -633.0 | -509.1 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -10.47 | 91.38 | 47.32 | 259.66 | 0.7372 | -593.0 | -479.7 | |
| 6.03 | -28.00 | 4.46 | -28.00 | -12.83 | 91.87 | 47.81 | 256.53 | 0.7452 | -641.7 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -10.85 | 91.42 | 47.35 | 259.14 | 0.7379 | -618.0 | -618.0 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -11.03 | 91.45 | 47.39 | 258.90 | 0.7385 | -411.0 | -449.0 | |
| 2.63 | 4.67 | 1.97 | 3.50 | -14.68 | 92.23 | 48.17 | 254.12 | 0.7518 | 676.5 | 489.0 | |
| 0.00 | 0.76 | 0.00 | 0.56 | -10.48 | 91.16 | 47.10 | 259.63 | 0.7347 | -729.0 | -632.0 | |
| 1.53 | 4.67 | 1.12 | 3.43 | -12.20 | 91.44 | 47.38 | 257.33 | 0.7396 | -742.4 | -555.2 | |
| 0.51 | 1.53 | 0.37 | 1.12 | -11.90 | 91.33 | 47.27 | 257.71 | 0.7380 | -690.8 | -601.8 | |
| 1.19 | 4.33 | 0.87 | 3.16 | -12.45 | 91.24 | 47.17 | 256.96 | 0.7375 | -618.8 | -531.9 | |
| 0.00 | 1.27 | 0.00 | 0.93 | -12.10 | 91.07 | 47.00 | 257.41 | 0.7351 | -619.0 | -537.0 | |
| 0.00 | 1.10 | 0.00 | 0.80 | -11.01 | 90.65 | 46.59 | 258.84 | 0.7292 | -773.0 | -672.4 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -12.85 | 91.02 | 46.96 | 256.39 | 0.7355 | -623.0 | -530.4 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -12.52 | 90.90 | 46.84 | 256.81 | 0.7337 | -583.0 | -443.0 | |
| 0.00 | 0.76 | 0.00 | 0.54 | -8.48 | 90.03 | 45.97 | 262.29 | 0.7199 | -605.0 | -474.2 | |
| 0.00 | 1.19 | 0.00 | 0.86 | -11.88 | 90.58 | 46.51 | 257.64 | 0.7292 | -750.0 | -648.1 | |
| 0.00 | 2.29 | 0.00 | 1.66 | -12.33 | 90.59 | 46.53 | 257.03 | 0.7299 | -647.0 | -543.4 | |
| 0.00 | 1.78 | 0.00 | 1.30 | -14.23 | 91.02 | 46.96 | 254.52 | 0.7375 | -461.0 | -295.2 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -13.76 | 90.81 | 46.74 | 255.12 | 0.7343 | -285.0 | -306.3 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -4.88 | 89.30 | 45.24 | 267.33 | 0.7106 | -616.0 | -581.0 | |
| 0.00 | 1.61 | 0.00 | 1.16 | -12.28 | 90.40 | 46.34 | 257.07 | 0.7276 | -647.0 | -601.0 | |
| 0.00 | 0.76 | 0.00 | 0.54 | -8.36 | 89.50 | 45.43 | 262.43 | 0.7134 | -728.0 | -657.2 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -12.47 | 90.14 | 46.08 | 256.77 | 0.7248 | -506.0 | -499.2 | |
| 0.00 | 1.61 | 0.00 | 1.13 | -8.52 | 89.31 | 45.24 | 262.19 | 0.7112 | -815.0 | -710.5 | |
| 1.87 | 8.33 | 1.35 | 6.00 | -13.82 | 90.29 | 46.23 | 254.95 | 0.7285 | -455.6 | 26.9 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -12.79 | 89.73 | 45.67 | 256.27 | 0.7205 | -675.0 | -581.9 | |
| 2.97 | 4.84 | 2.12 | 3.44 | -13.82 | 89.55 | 45.48 | 254.81 | 0.7198 | -768.7 | -646.3 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -12.58 | 88.65 | 44.59 | 256.40 | 0.7073 | -726.0 | -600.1 | |
| 0.00 | 0.85 | 0.00 | 0.59 | -15.34 | 88.17 | 44.11 | 252.42 | 0.7065 | -574.0 | -489.8 | |
| 0.00 | 2.04 | 0.00 | 1.37 | -13.69 | 86.14 | 42.08 | 254.32 | 0.6786 | -542.0 | -492.2 | |
| 0.00 | 1.19 | 0.00 | 0.79 | -13.16 | 85.25 | 41.19 | 254.91 | 0.6666 | -484.0 | -326.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
