SDO HMI 2014-01-12 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.09 | 53.66 | 2.84 | 30.20 | 16.77 | 25.15 | -18.91 | 41.03 | 0.4737 | 284.9 | 200.4 | |
|
previous
or next observation for the same group /

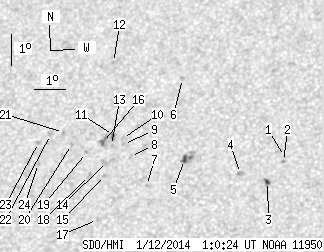

back to the solar disc SDO HMI 2014-01-12 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.37 | 16.57 | 29.95 | -14.11 | 33.50 | 0.4252 | -645.0 | -490.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 16.41 | 29.93 | -14.13 | 33.75 | 0.4233 | -886.0 | -753.5 | |
| 1.44 | 2.46 | 0.79 | 1.34 | 15.79 | 29.47 | -14.59 | 35.47 | 0.4195 | -1018.8 | -854.8 | |
| 0.00 | 3.14 | 0.00 | 1.72 | 16.06 | 28.59 | -15.47 | 36.66 | 0.4311 | -930.0 | -640.9 | |
| 2.04 | 9.60 | 1.13 | 5.33 | 16.54 | 26.76 | -17.30 | 39.04 | 0.4546 | -860.2 | -729.4 | |
| 0.00 | 1.78 | 0.00 | 1.01 | 19.13 | 26.43 | -17.63 | 36.04 | 0.4884 | 736.0 | 536.6 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 15.75 | 25.60 | -18.46 | 42.01 | 0.4572 | -664.0 | -534.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 16.68 | 24.99 | -19.07 | 41.54 | 0.4738 | 813.0 | 635.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 17.07 | 24.73 | -19.34 | 41.37 | 0.4809 | 632.0 | 597.0 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 17.26 | 24.67 | -19.39 | 41.18 | 0.4835 | 599.0 | 563.8 | |
| 0.59 | 2.46 | 0.34 | 1.40 | 17.36 | 24.37 | -19.70 | 41.47 | 0.4878 | 791.1 | 691.3 | |
| 0.00 | 1.10 | 0.00 | 0.64 | 19.70 | 24.08 | -19.98 | 38.69 | 0.5166 | 792.0 | 612.8 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 17.05 | 24.33 | -19.73 | 41.96 | 0.4846 | 795.0 | 686.0 | |
| 0.00 | 6.29 | 0.00 | 3.55 | 16.54 | 24.26 | -19.80 | 42.81 | 0.4799 | 688.0 | 647.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 16.10 | 24.21 | -19.86 | 43.54 | 0.4757 | 947.0 | 768.8 | |
| 1.02 | 5.35 | 0.58 | 3.04 | 17.15 | 24.03 | -20.03 | 42.25 | 0.4889 | 844.8 | 667.0 | |
| 0.00 | 1.70 | 0.00 | 0.95 | 14.73 | 24.11 | -19.95 | 45.81 | 0.4621 | -684.0 | -417.2 | |
| 0.00 | 2.29 | 0.00 | 1.29 | 16.12 | 23.71 | -20.35 | 44.21 | 0.4811 | 687.0 | 570.4 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 16.85 | 23.54 | -20.53 | 43.37 | 0.4907 | 549.0 | 500.2 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 17.12 | 23.01 | -21.05 | 43.69 | 0.4991 | 866.0 | 621.1 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 17.50 | 22.70 | -21.36 | 43.54 | 0.5064 | 721.0 | 597.4 | |
| 0.00 | 1.87 | 0.00 | 1.08 | 17.45 | 22.27 | -21.79 | 44.17 | 0.5103 | 669.0 | 486.3 | |
| 0.00 | 1.10 | 0.00 | 0.64 | 17.21 | 21.90 | -22.16 | 44.99 | 0.5117 | 614.0 | 512.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 16.55 | 21.98 | -22.08 | 45.86 | 0.5041 | 720.0 | 596.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
