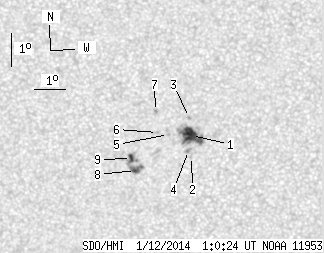

SDO HMI 2014-01-12 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.71 | 59.73 | 12.45 | 31.41 | -17.81 | 29.67 | -14.39 | 135.06 | 0.3363 | 658.8 | 124.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-12 01:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.36 | 32.12 | 9.61 | 16.82 | -17.53 | 30.35 | -13.72 | 135.72 | 0.3253 | 1074.7 | 686.8 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -18.16 | 30.29 | -13.77 | 137.02 | 0.3332 | 720.0 | 568.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.98 | 30.32 | -13.74 | 134.43 | 0.3195 | 856.0 | 727.1 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -17.98 | 30.21 | -13.85 | 136.46 | 0.3320 | 831.0 | 684.5 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -17.48 | 29.62 | -14.45 | 134.20 | 0.3334 | 798.0 | 621.3 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -17.42 | 29.27 | -14.79 | 133.40 | 0.3367 | 633.0 | 507.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -16.78 | 29.26 | -14.80 | 131.90 | 0.3301 | 849.0 | 616.6 | |
| 2.72 | 19.03 | 1.44 | 10.09 | -18.56 | 28.46 | -15.60 | 134.42 | 0.3586 | -1070.2 | -751.0 | |
| 2.63 | -8.00 | 1.40 | -8.00 | -18.19 | 28.37 | -15.69 | 133.48 | 0.3557 | -942.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
